Green circuit board with four red SATA ports and a gold Mini PCI-E edge connector

Vszerda

Vszerda Mini PCI-E to SATA 3.0 4-Port Adapter

SKU CH-QAXM-CS5WF

Adds four SATA 3.0 ports through a Mini PCI-E slot with 6.0 Gbps speeds and hot-swap support

  • Typexiwai
  • Length10 L x 10 W x 1 H centimeters
  • Speedpci_express_x1
  • Specificationscopper, Desktop, Laptop, xiwai, Mini PCI-E to SATA 3.0 Four
  • Conductorcopper
  • Constructioncopper
  • Add four SATA 3.0 ports via Mini PCI-E slot
  • 0 Gbps transfer speed for faster SSD performance
  • ASMedia ASM1064 controller ensures stable data handling
  • Hot-swap support lets you change drives without shutdown
  • NCQ technology maintains drive responsiveness under heavy load

Four-Port SATA 3.0 Expansion

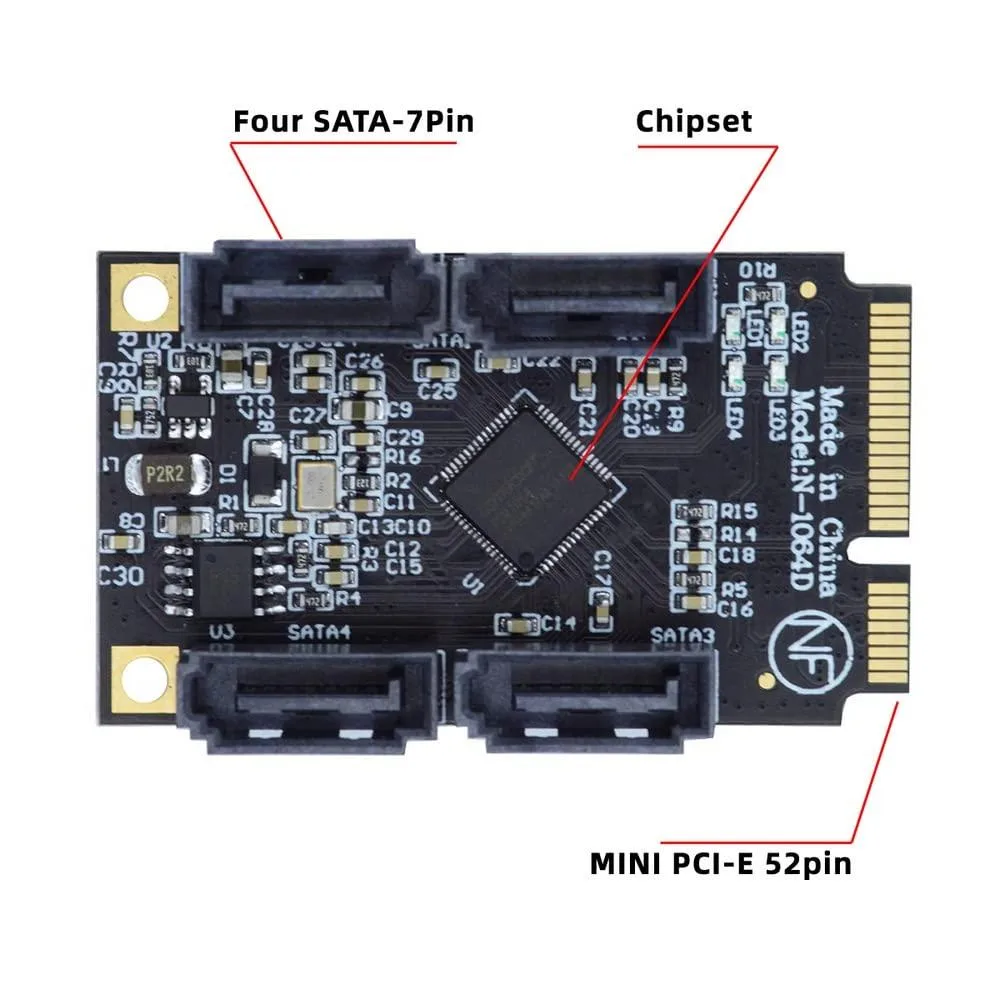

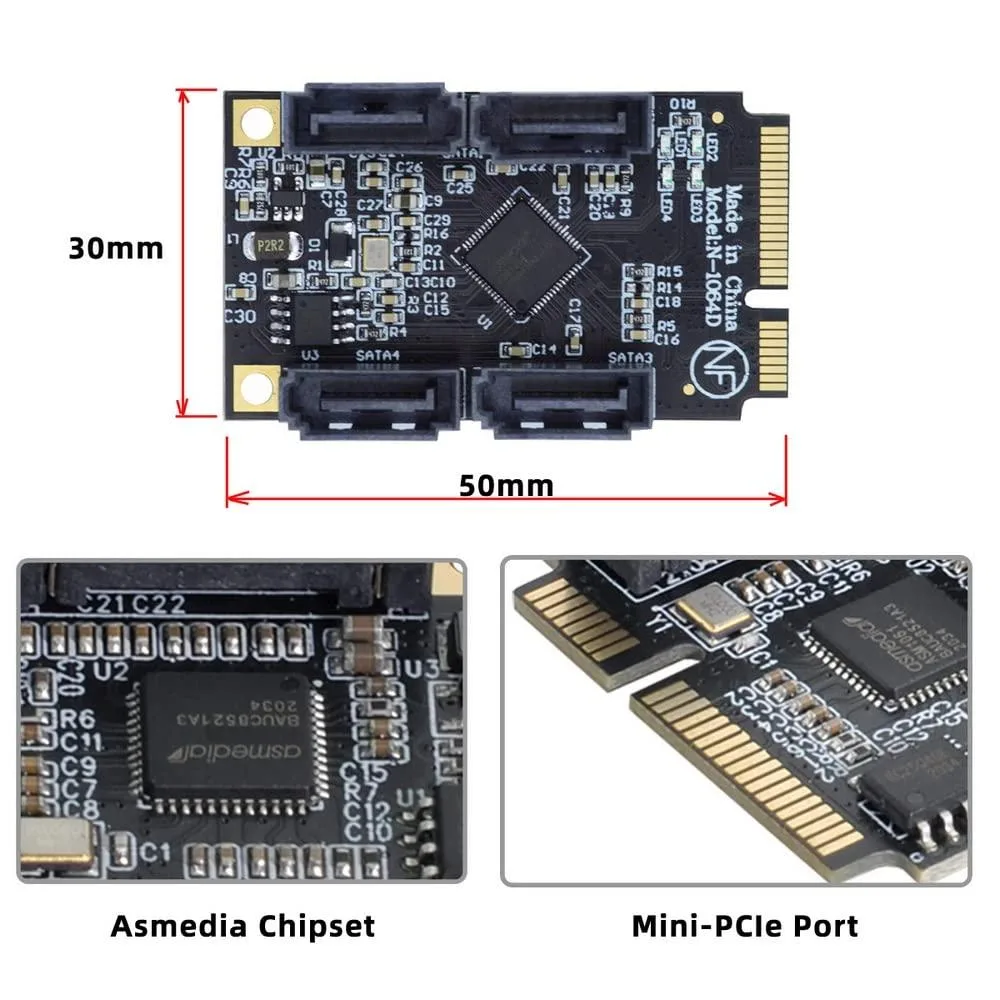

This adapter adds four SATA 3.0 ports through a single Mini PCI Express x1 slot. It uses an ASMedia ASM1064 controller to deliver 6.0 Gbps, 3.0 Gbps and 1.5 Gbps link speeds. The card supports hot-plug, hot-swap and NCQ for stable performance under load. It fits desktop or laptop systems that expose a Mini PCI-E connector.

Suitable For Systems With Mini PCI-E Slots

Builders who have a free Mini PCI-E slot and need extra SATA ports for SSDs or hard drives will find this card a direct fit. It does not work in mSATA slots, so laptops or boards that only provide mSATA cannot use it. Systems without any Mini PCI-E connector cannot install the adapter.

Mini PCI-E Slot Required

The single specification that decides compatibility is the presence of a Mini PCI Express slot; mSATA slots are explicitly not supported. If the target machine lacks that exact slot, the card cannot be installed.

Highlights

  • Add four SATA 3.0 ports via Mini PCI-E slot
  • 0 Gbps transfer speed for faster SSD performance
  • ASMedia ASM1064 controller ensures stable data handling
  • Hot-swap support lets you change drives without shutdown
  • NCQ technology maintains drive responsiveness under heavy load

Specifications

Brandxiwai
ModelSA-033-4P-XY
Typexiwai
Length10 L x 10 W x 1 H centimeters
Speedpci_express_x1
Specificationscopper, Desktop, Laptop, xiwai, Mini PCI-E to SATA 3.0 Four Ports
Conductorcopper
Constructioncopper
Featurescopper, Mini PCI-E to SATA 3.0 Four Ports, Desktop, Laptop

Questions about this item

What slot must my motherboard or laptop have free for this 4-port SATA adapter?

It needs an available Mini PCI-E slot; mSATA slots are not compatible.

Will my existing SATA II drives run at full speed on the ASM1064 controller?

The adapter negotiates 1.5, 3.0 and 6.0 Gbps, so SATA II drives operate at their native 3.0 Gbps rate.

How can I confirm the card is active after installation?

The four SATA ports appear in BIOS and the ASM1064 controller shows in Device Manager with hot-plug and NCQ support listed.
