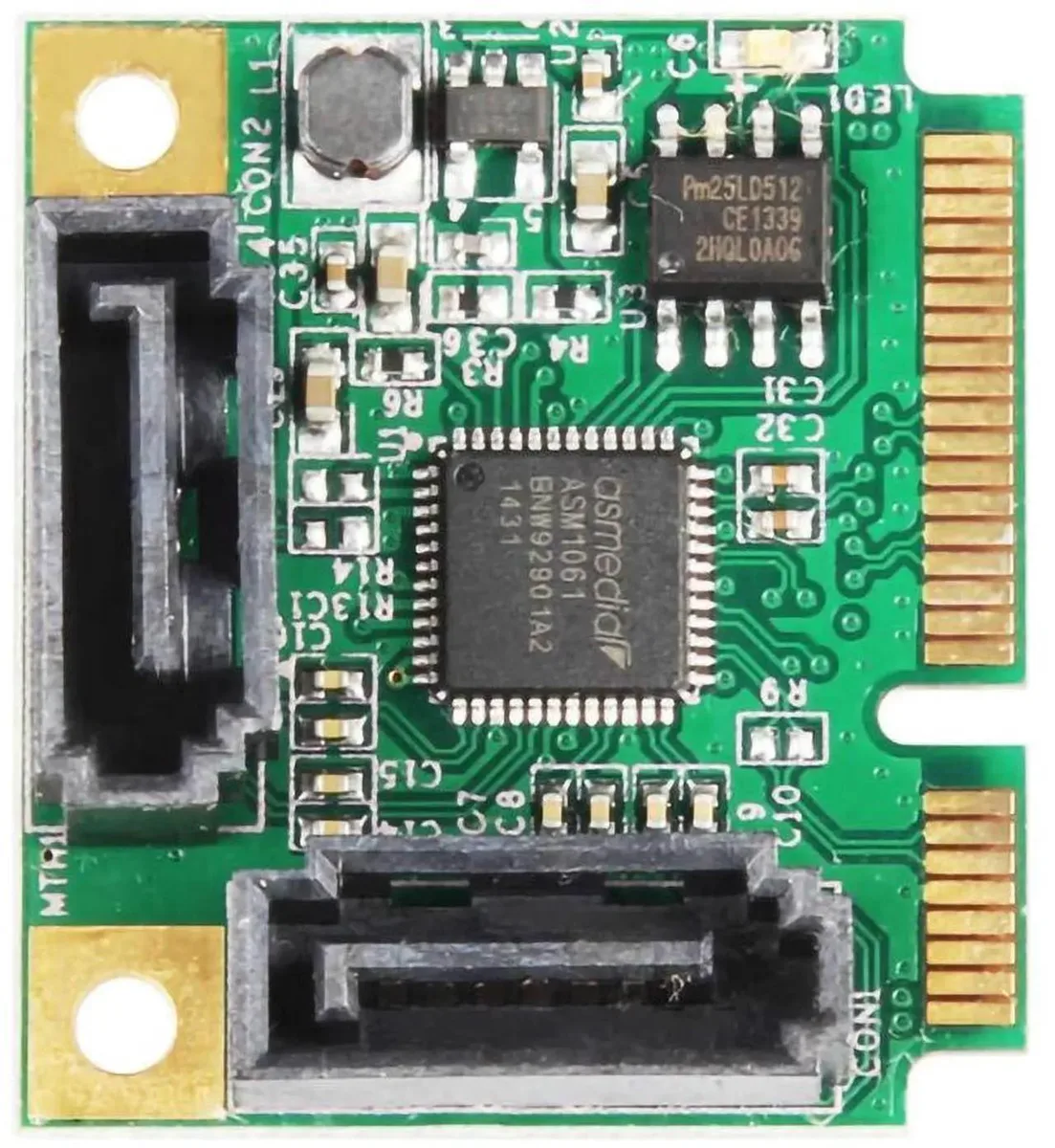

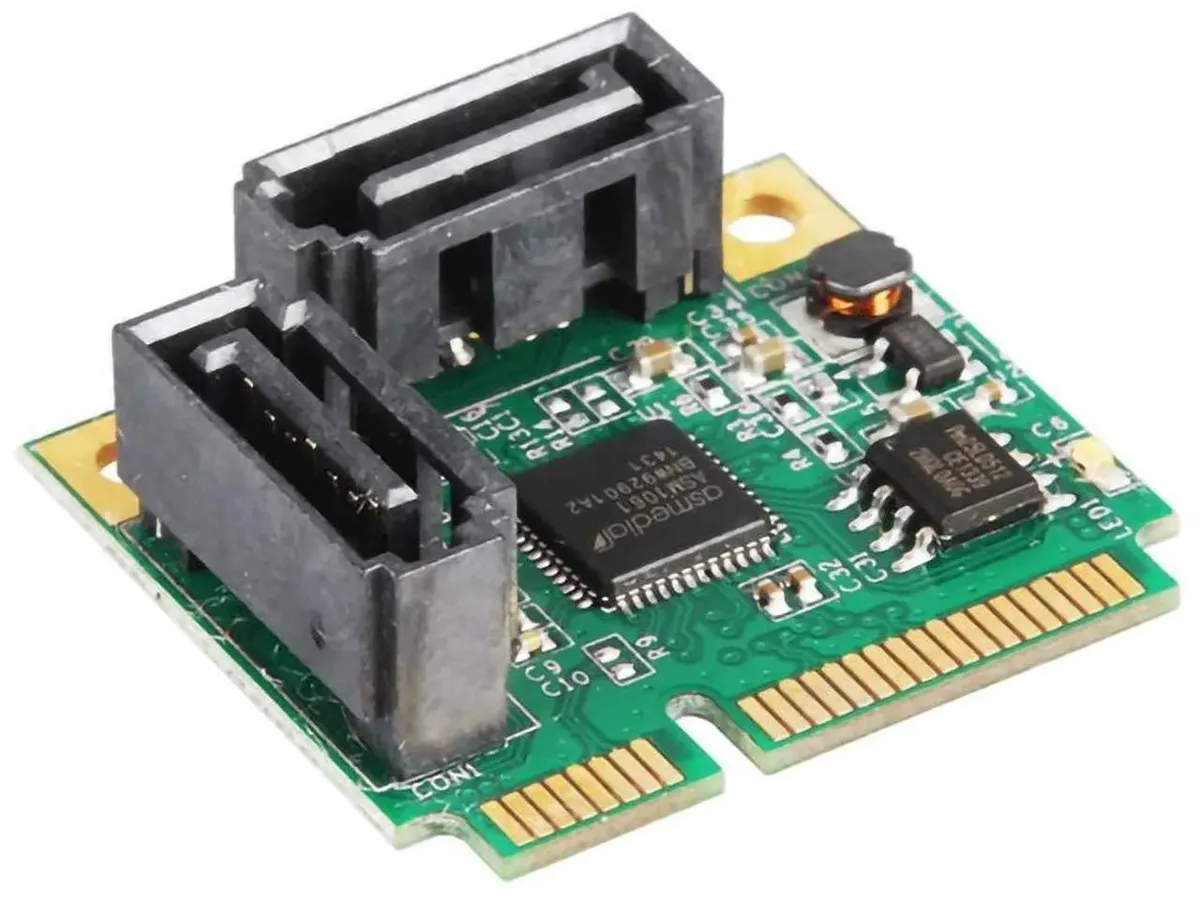

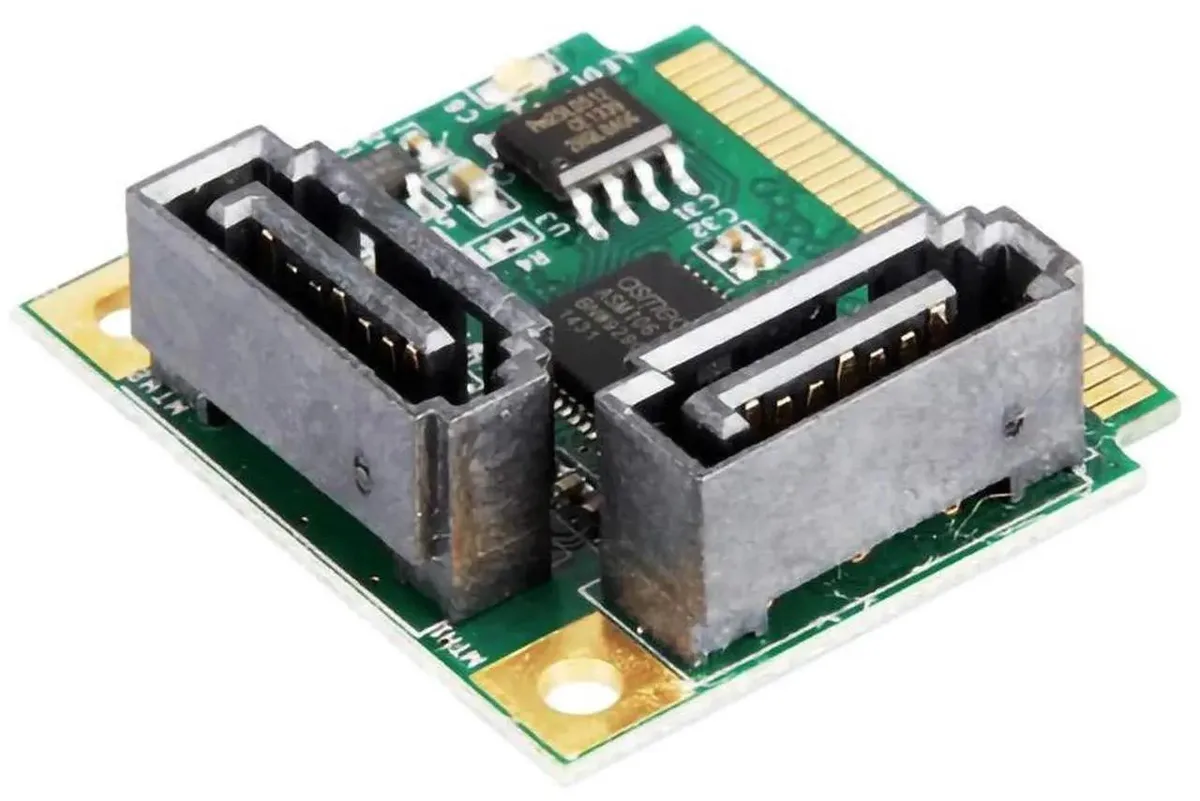

Small green circuit board with two black SATA ports and a Mini PCI-E edge connector

Vszerda

Vszerda Mini PCI-E 2-Port SATA 3.0 Controller

SKU CH-FJ0Y-T5NA3

Adds two SATA 3.0 6 Gbps ports via a Mini PCI-Express x1 slot for drives

  • Adds two 6 Gbps SATA ports via Mini PCI-E
  • Single-lane PCIe 2.0 link runs at up to 5.0 Gbps
  • Native AHCI 1.0 support works with Windows and Linux
  • NCQ and Port Multiplier boost multi-drive throughput
  • Tiny 30×26 mm card weighs just 10 g

Mini PCIe SATA 3.0 Controller

This Vszerda expansion card adds two SATA 3.0 ports through a native single-chip design. It fits a Mini PCI-Express x1 slot and delivers up to 6 Gbps per port. The board measures about 30 x 26 x 1 mm and weighs 10 g. It is suited for systems that have a free Mini PCIe slot and need additional SATA connectivity.

Suitable for legacy OS support and basic expansion

The controller works with Windows 10, 8, 7, Vista, XP, 2000, Server 2003 and Linux in both 32-bit and 64-bit variants. It supports AHCI 1.0, NCQ and Port Multiplier functions. It does not suit buyers who need hardware RAID, more than two SATA ports, or a full-size PCI Express or M.2 form factor. The card also requires an available Mini PCIe slot on the host system.

Single-lane PCIe 2.0 interface determines throughput

The card uses a single-lane PCI Express 2.0 link with signalling rates of 5.0 and 2.5 Gbps. This upstream bandwidth caps the combined throughput of the two SATA 3.0 ports. Each SATA port still negotiates at 6, 3 or 1.5 Gbps depending on the attached drive, but the PCIe lane is the limiting factor for total data transfer.

Highlights

  • Adds two 6 Gbps SATA ports via Mini PCI-E
  • Single-lane PCIe 2.0 link runs at up to 5.0 Gbps
  • Native AHCI 1.0 support works with Windows and Linux
  • NCQ and Port Multiplier boost multi-drive throughput
  • Tiny 30×26 mm card weighs just 10 g

Specifications

No published specifications for this item yet.

Questions about this item

Does my laptop or motherboard need a Mini PCI-E slot to install this controller?

Yes, the board plugs directly into a Mini PCI-E slot; without that slot the card cannot be fitted.

Will SATA-II or SATA-I hard drives work on the two SATA 3.0 ports?

The ports are backward compatible with SATA-II at 3 Gbps and SATA-I at 1.5 Gbps, so older drives will operate at their native speeds.

How can I verify the card is detected and running at SATA 3.0 speed after installation?

Check Device Manager or lspci for an AHCI controller, then confirm the attached drives report a 6 Gbps link rate in the OS storage utility.
