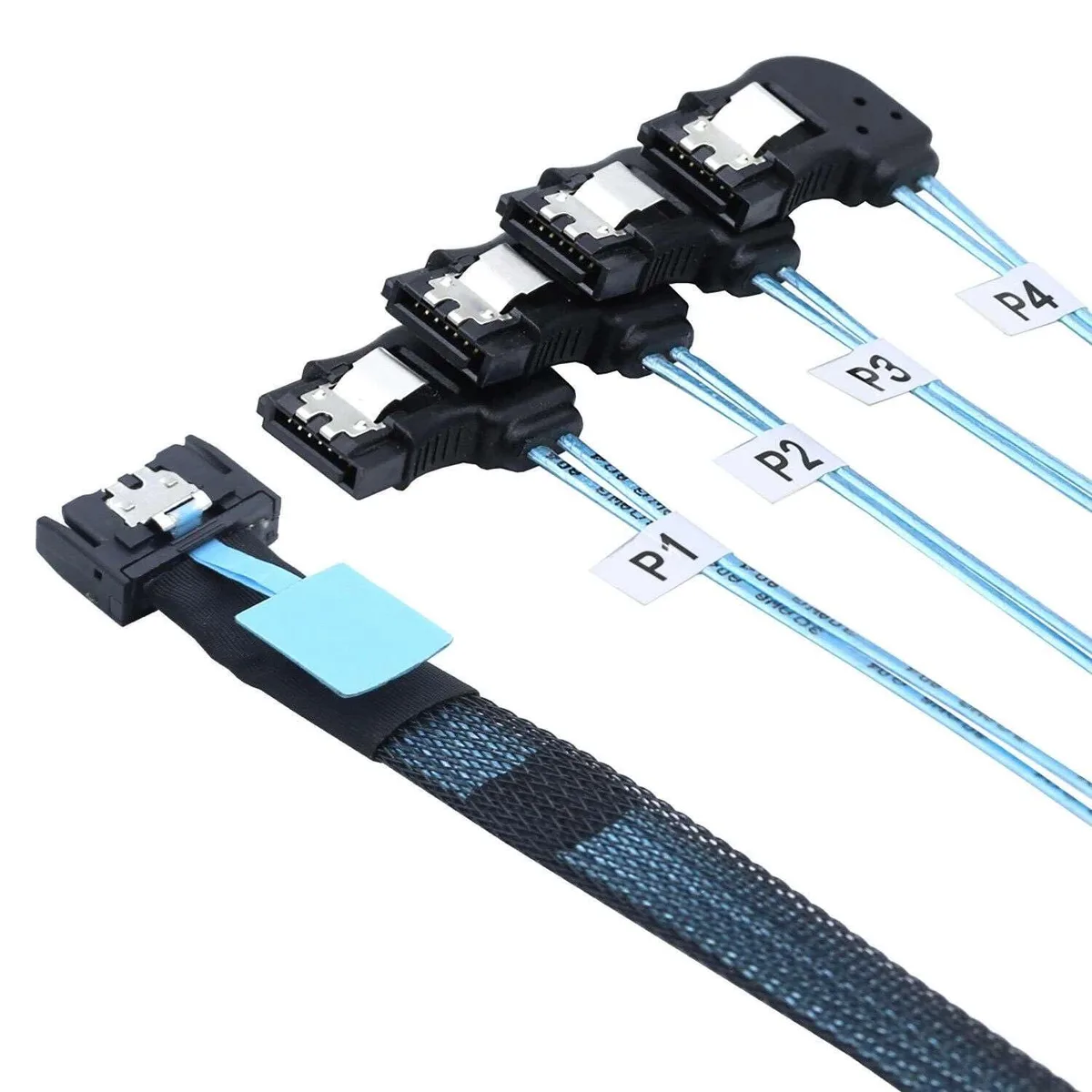

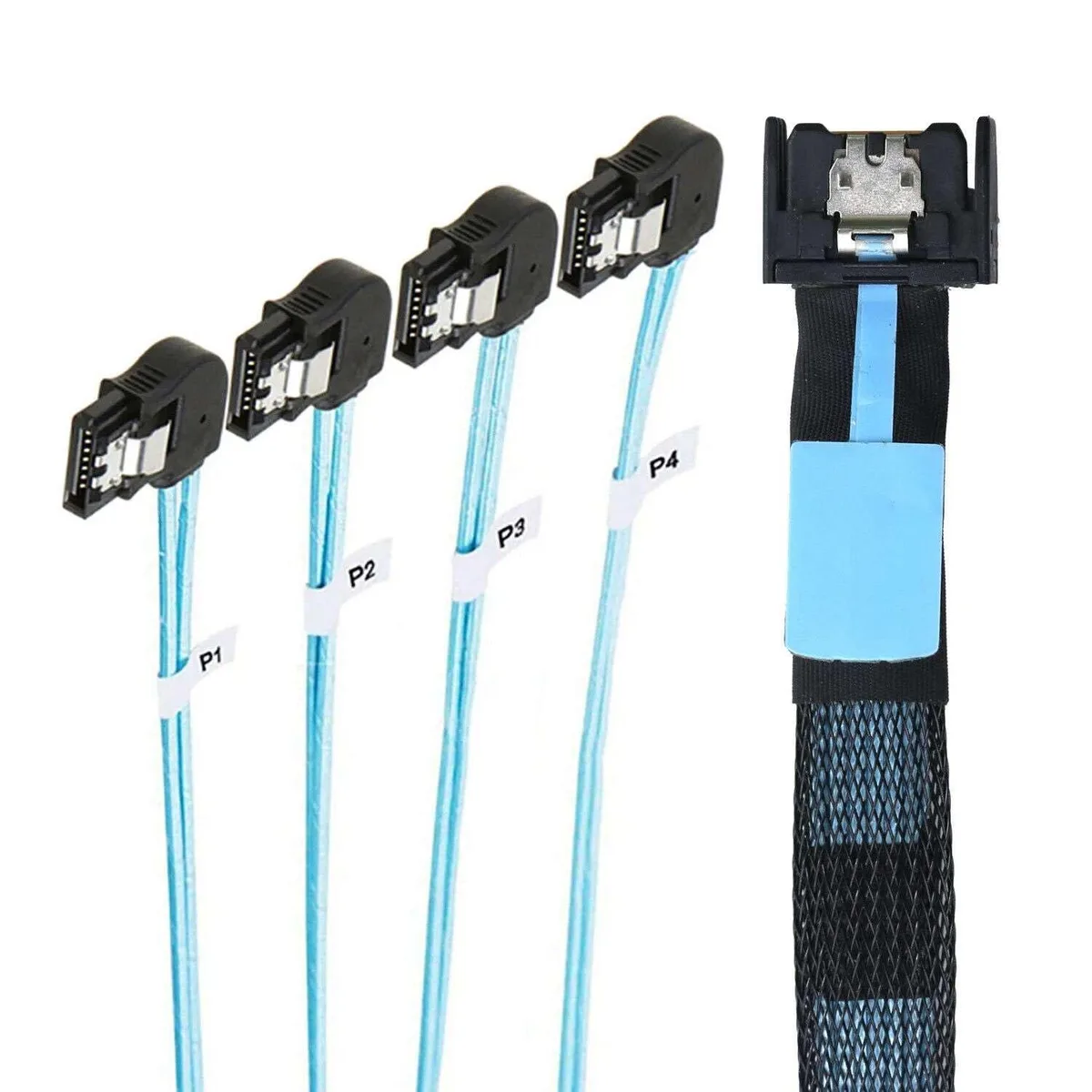

Flat 100cm cable with 38-pin SFF-8654 connector splitting to four left-angle SATA plugs

Vszerda

Vszerda MCIOSFF8654-4XST-L SFF-8654 38P to 4X SATA Left Angle Cable 100CM

SKU CH-ACPE-CV3MH

Connects a 38-pin SFF-8654 port to four left-angle SATA drives at up to 24 Gbps over a 100 cm flat cable

  • TypeSAS
  • Length18
  • Connector DetailMcio
  • Terminal GenderMale-to-Female
  • SpecificationsSAS
  • ShieldingHigh-speed transfer, left-angle SATA connectors, durable con
  • 24Gbps throughput via SFF-8654 SAS 4.0 interface
  • Four SATA 3.0 6Gbps ports from single 38-pin connector
  • Left-angle SATA plugs fit tight server chassis
  • Flat cable design eases routing and cuts EMI
  • Hot-plug support allows drive swaps without downtime

SFF-8654 38-pin to four SATA breakout cable

This 100 cm cable converts a single SFF-8654 38-pin port into four left-angle SATA 7-pin connectors. It supports SAS 4.0 at up to 24 Gbps on the host side and SATA 3.0 at 6 Gbps per drive. The flat, miniaturised design simplifies routing in dense server chassis.

Server builders adding SATA storage to an MCIO port

Ideal for data-centre, cloud and enterprise servers that need hot-plug SATA drives without shutting down. Not suited for installers who require right-angle or straight SATA ends, or who need additional SAS ports beyond the four SATA links provided.

24 Gbps SAS 4.0 host interface

The SFF-8654 38-pin connector delivers up to 24 Gbps aggregate bandwidth, dividing into four independent 6 Gbps SATA channels. This single specification determines whether the cable matches your controller and drive performance requirements.

Highlights

  • 24Gbps throughput via SFF-8654 SAS 4.0 interface
  • Four SATA 3.0 6Gbps ports from single 38-pin connector
  • Left-angle SATA plugs fit tight server chassis
  • Flat cable design eases routing and cuts EMI
  • Hot-plug support allows drive swaps without downtime

Specifications

BrandST-JY
ModelMCIOSFF8654-4XST-L
TypeSAS
Length18
Connector DetailMcio
Terminal GenderMale-to-Female
SpecificationsSAS
ShieldingHigh-speed transfer, left-angle SATA connectors, durable construction
FeaturesHigh-speed transfer, left-angle SATA connectors, durable construction

Questions about this item

What does the 24Gbps SAS4.0 rating mean when the cable splits to four SATA drives?

The SFF-8654 38-pin end carries up to 24Gbps aggregate bandwidth, but each of the four SATA 7-pin connectors is limited to the SATA3.0 6Gbps ceiling, so the total throughput cannot exceed 24Gbps combined.

How does the SFF-8654 interface cap real-world speed with SATA drives attached?

The cable is built to the SAS4.0 24Gbps spec on the 38-pin side, yet every SATA port tops out at 6Gbps, making the SATA link the practical bottleneck for each drive.

What clearance does the left-angle SATA end need to fit in a tight server chassis?

The left-angle SATA connectors sit flat against the drive, and the 100cm flat cable routes easily in confined spaces, requiring only enough room for the 38-pin MCIO plug on the motherboard side.
