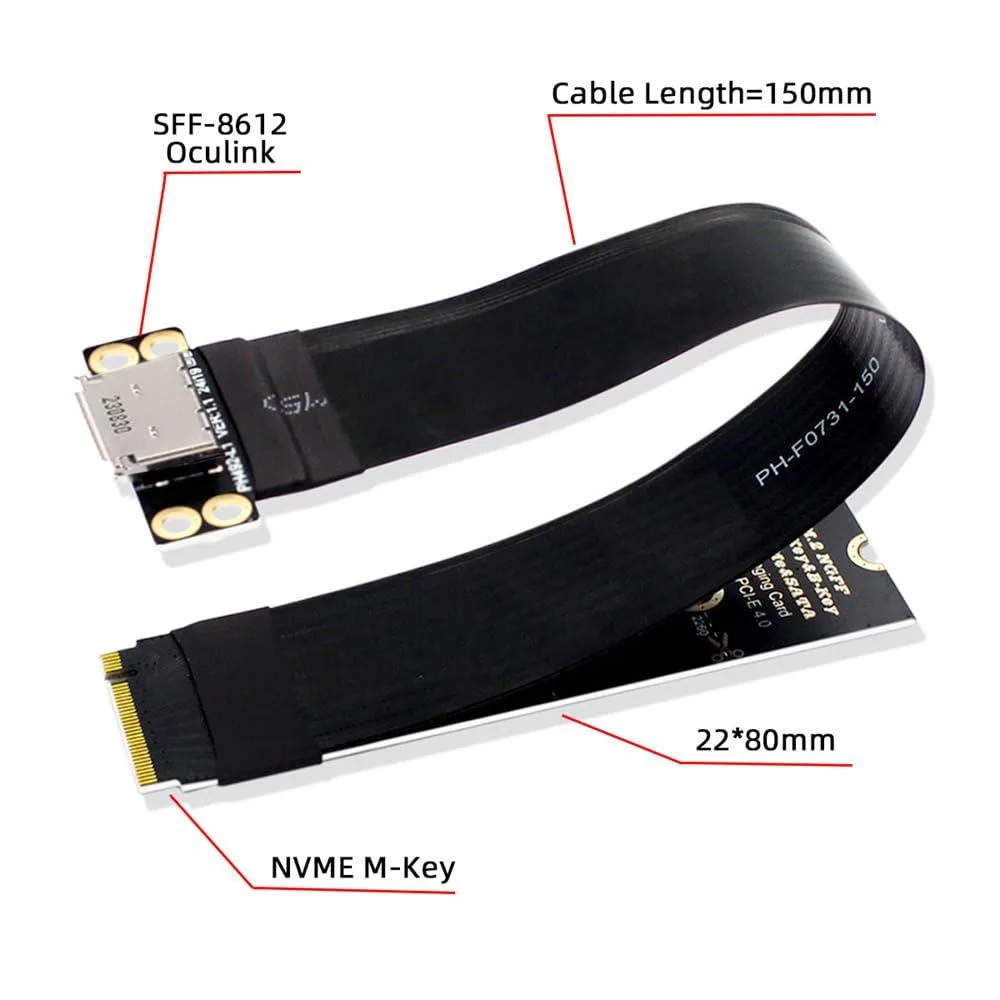

Black 15cm cable with M.2 M-key male plug and OCuLink SFF-8612 female socket

Vszerda

Vszerda M.2 M-Key 2280 to Oculink SFF-8612 Cable 15cm

SKU CH-4SXE-4CPJ8

A 15 cm cable adds an OCuLink SFF-8612 female port to an M.2 2280 M-Key slot for NVME SSD or GPU expansion at up to 64 Gbps

  • TypePCI Express
  • ColorBlack
  • Length15
  • Connector Number12
  • Terminal GenderMale-to-Female
  • Speed64 gigabits_per_second
  • Adds an OCuLink SFF-8612 port to an M.2 2280 M-Key slot
  • 15 cm cable keeps internal routing short and tidy
  • PCIe 4.0 signal path supports up to 64 Gbps data rate
  • Backward compatible with PCIe 3.0 for wider device support
  • Fixing holes secure the connector in compact chassis

M.2 M-Key to OCuLink Adapter

This 15 cm cable adds an OCuLink SFF-8612 female port to a 2280 M-Key slot. It carries PCIe 4.0 signals using the NVME protocol at up to 64 Gbps. The assembly includes a 67-pin M.2 male connector and fixing holes for secure mounting. It suits builders who need to connect U.2 SSDs or eGPU enclosures to an M.2 socket.

Suits compact hosts needing OCuLink

The short length fits small desktops, laptops or servers where space is tight. It works with PCIe 3.0 and 4.0 devices such as graphics cards, SSDs or expansion cards. Builders who need a longer reach, a different key type or an internal SFF-8611 connector instead of SFF-8612 should look at other options.

PCIe 4.0 at 64 Gbps decides fit

The link runs at 64 Gbps and supports NVME 1.2, matching PCIe 4.0 x4 bandwidth. If the target device requires PCIe 5.0 speeds or a protocol other than NVME, this cable will not deliver the needed performance.

Highlights

  • Adds an OCuLink SFF-8612 port to an M.2 2280 M-Key slot
  • 15 cm cable keeps internal routing short and tidy
  • PCIe 4.0 signal path supports up to 64 Gbps data rate
  • Backward compatible with PCIe 3.0 for wider device support
  • Fixing holes secure the connector in compact chassis

Specifications

Brandxiwai
TypePCI Express
ColorBlack
Length15
Connector Number12
Terminal GenderMale-to-Female
Speed64 gigabits_per_second
SpecificationsPCI Express
ShieldingHigh Speed
FeaturesHigh Speed

Questions about this item

How do I install the 15cm Vszerda cable between an M.2 2280 M-Key slot and an OCuLink SFF-8612 device?

Insert the 67-pin M.2 Key M male connector into the host M.2 2280 slot and secure it with the fixing screw; then attach the OCuLink SFF-8612 female connector to the target device using an optional OCuLink cable.

What maintenance or replacement will this cable need over time?

The passive 15cm cable has no moving parts or firmware; inspect the connectors for dust or bent pins and reseat if signal errors appear, otherwise no scheduled replacement is required.

What is the first performance limit reached under sustained PCIe 4.0 loads?

The link tops out at 64 Gbps aggregate bandwidth, so sustained NVMe or eGPU traffic will saturate the PCIe 4.0 x4 lane ceiling before any cable-specific bottleneck occurs.
