Blue and black Mini SAS SFF-8087 to four SATA breakout cable, 2 m

Vszerda

Vszerda LLS-CB-1MA4SA-01 Mini SAS SFF-8087 to 4 SATA cable 2 m

SKU CH-P8RE-VSP3E

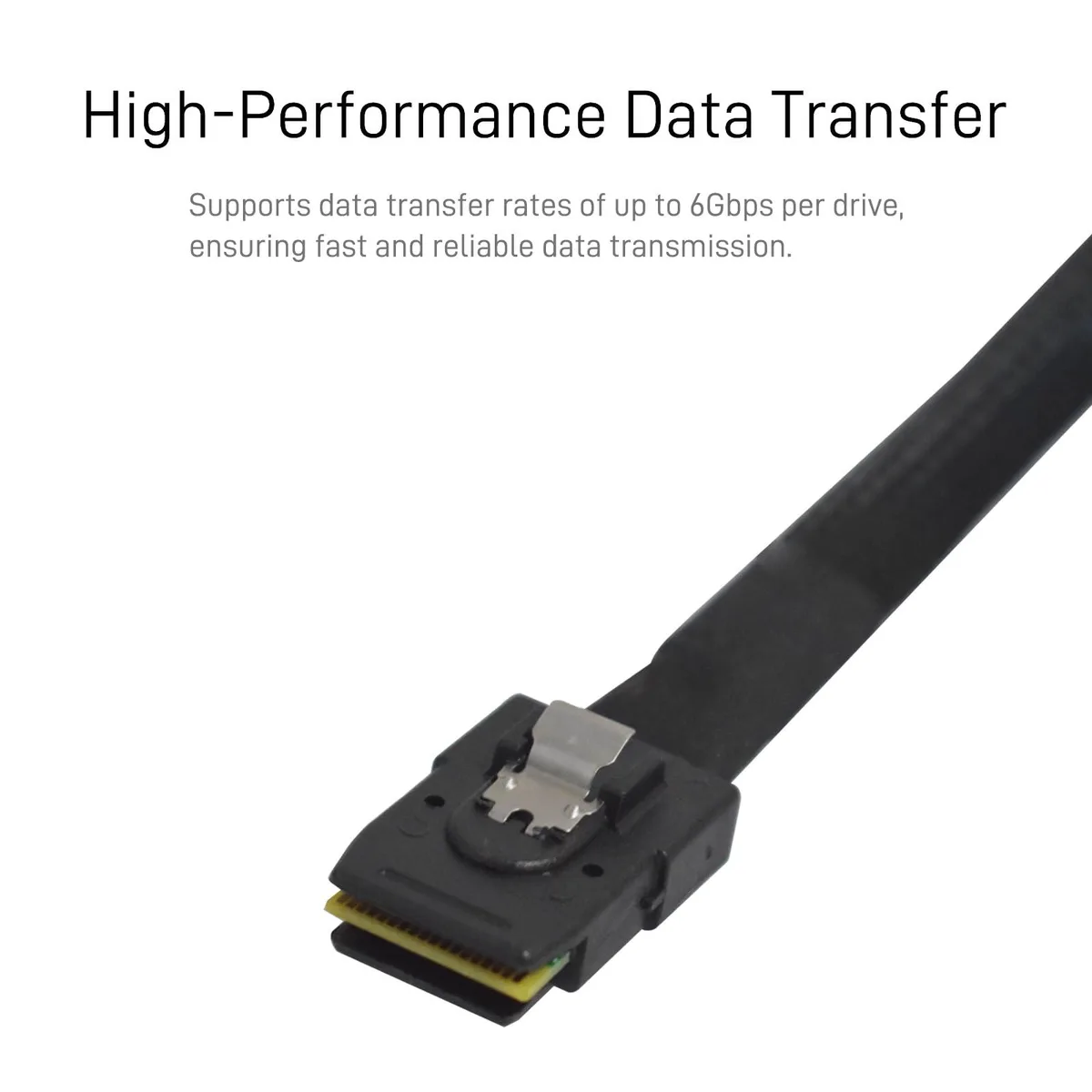

Connects a Mini SAS SFF-8087 port to four SATA drives at 6 Gbps with labelled breakout cables

  • TypeMini SAS
  • ColorBlue & Black
  • Length78.74
  • Connector Detail36p Mini-sas Sff-8087 to 7p Sata Straight
  • Terminal GenderMale-to-Male
  • Speed6 gigabits_per_second
  • Connect up to four SATA drives via one SFF-8087 port
  • Each drive transfers at up to 6 Gbps
  • Labelled P1-P4 connectors simplify cable management

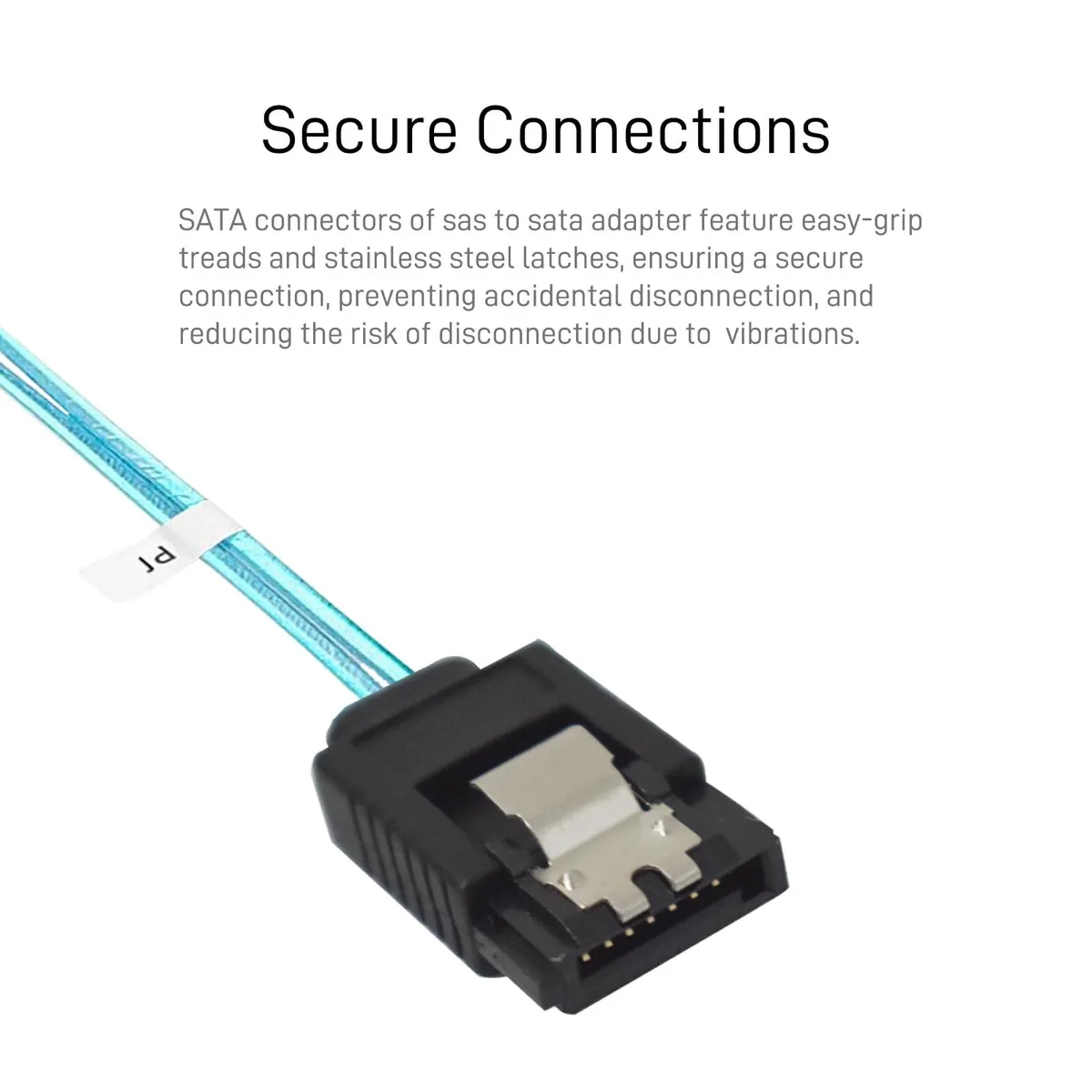

  • Latching SATA plugs resist vibration and accidental disconnects
  • Flexible ribbon construction with strain relief fits tight spaces

Vszerda Mini SAS SFF-8087 to 4 SATA 2 m cable

This 2 metre breakout cable connects a Mini SAS SFF-8087 port on a RAID or PCIe HBA card to four individual SATA drives. It supports data transfer rates up to 6 Gbps per drive. Colour-coded P1-P4 labels simplify identification during installation and maintenance. The blue and black ribbon construction includes acetate cloth tape and a partial woven mesh sheath for strain relief.

Suits RAID or HBA expansion up to four SATA drives

Builders adding multiple SATA SSDs or HDDs to a controller with an SFF-8087 internal port will find this forward breakout cable a direct fit. Latching SATA connectors with easy-grip treads resist vibration and accidental disconnection. It is not suitable for direct drive-to-drive links, external eSATA ports or controllers lacking a native SFF-8087 interface. Buyers needing more than four SATA connections must use additional cables or a different backplane.

6 Gbps per drive over SFF-8087 to 4× SATA

The single specification that determines compatibility is the 6 Gbps signalling rate across each of the four SATA lanes from the 36-pin Mini SAS SFF-8087 plug. This cable carries only SATA protocol traffic; it does not pass SAS signalling to SAS targets. Verify that the host controller presents SATA-over-SFF-8087 before purchasing.

Highlights

  • Connect up to four SATA drives via one SFF-8087 port
  • Each drive transfers at up to 6 Gbps
  • Labelled P1-P4 connectors simplify cable management
  • Latching SATA plugs resist vibration and accidental disconnects
  • Flexible ribbon construction with strain relief fits tight spaces

Specifications

ModelLLS-CB-1MA4SA-01
TypeMini SAS
ColorBlue & Black
Length78.74
Connector Detail36p Mini-sas Sff-8087 to 7p Sata Straight
Terminal GenderMale-to-Male
Speed6 gigabits_per_second

Questions about this item

How can I verify the 6 Gbps link is active after connecting the SFF-8087 to my RAID card?

Check the RAID controller BIOS or OS disk utility; each attached drive should negotiate a 6 Gbps SATA link speed.

What comes in the box and do I need extra parts to attach four drives?

The cable includes the 36-pin Mini-SAS SFF-8087 plug and four 7-pin SATA connectors labelled P1-P4; no additional adapters are required.

Which length should I choose for a full-tower build with the HBA at the bottom?

The 6.5 ft (2 m) version reaches from a bottom-mounted HBA to top drive bays; shorter 1.6 ft, 3.3 ft and 4.9 ft options suit smaller cases.
