Green PCB adapter board with one 40-pin IDE connector, two SATA ports and a 4-pin power header

Vszerda

Vszerda IDE 100 133 PATA to Dual SATA 7PIN Adapter

SKU CH-5C6A-R2K8K

Converts a 40-pin IDE drive to dual SATA ports at 1.5 Gbps, supporting Ultra ATA 100/133 and drives over 240 GB without drivers

  • Connects legacy IDE drives to modern SATA systems
  • Bidirectional conversion supports both PATA-to-SATA and SATA-to-PATA modes
  • 5 Gbps transfer rate handles large IDE drives beyond 240 GB
  • Works with Windows 98 through Windows 10 plus Mac OS 8.6+

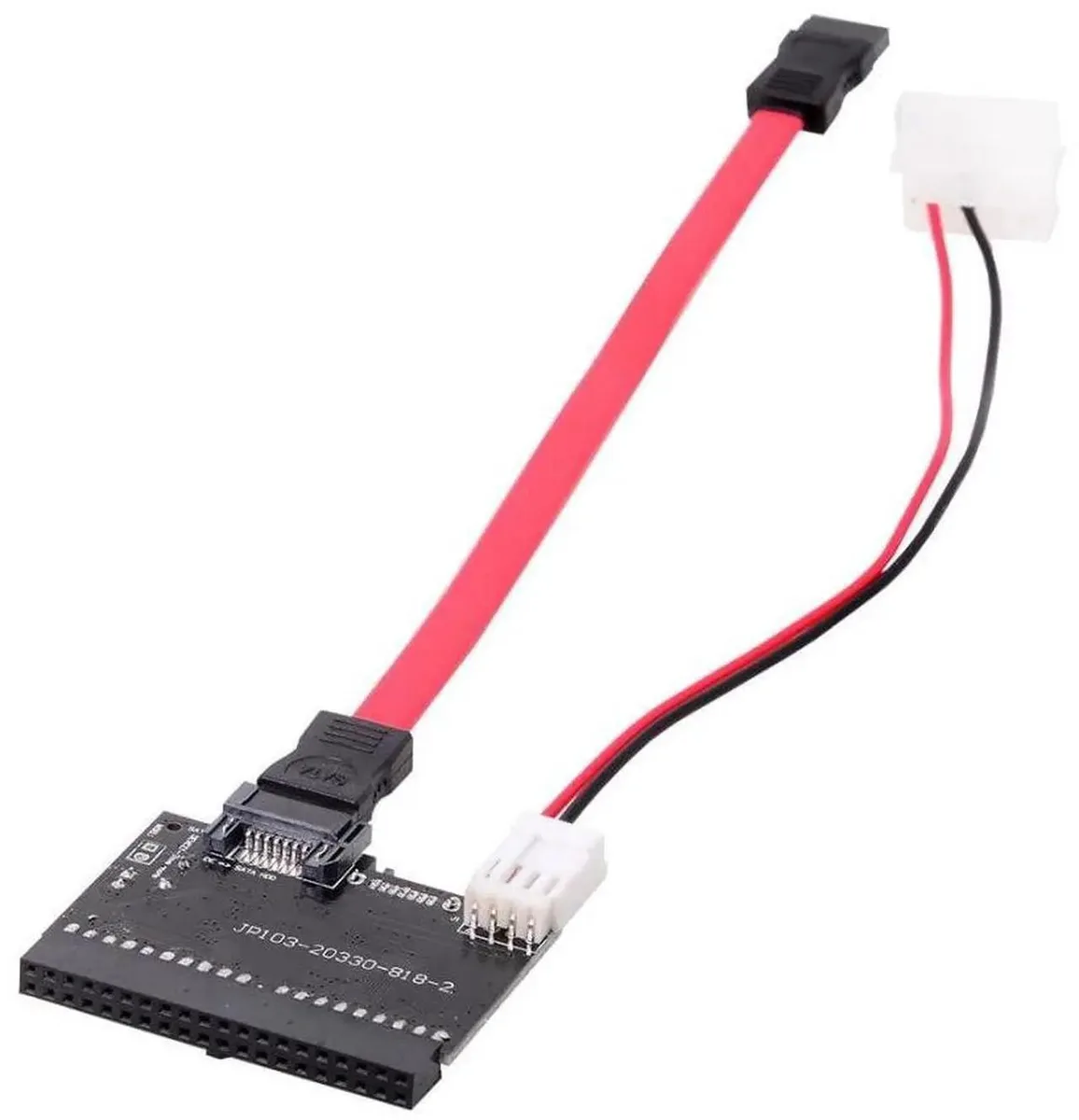

  • Includes SATA power cable, data cable and compact adapter board

IDE-to-SATA bidirectional adapter

The Vszerda adapter converts a single 40-pin IDE connection to two Serial ATA ports, letting older PATA drives work with modern SATA motherboards and vice versa. It supports ATA 100 and 133 modes and requires no driver installation. A 4-pin power connector and included cables complete the setup for desktop builders migrating legacy storage.

Thermals noise and power draw

The compact PCB draws power from a standard 4-pin connector and adds no active cooling, so it produces no audible noise and negligible heat during operation. Power consumption is limited to the adapter logic itself, leaving the drive’s own draw unchanged. The board’s small footprint avoids airflow obstruction inside the case.

Upgrade path and when it matters

This adapter bridges systems that still rely on IDE controllers or drives larger than 240 GB, replacing the need for a matching legacy motherboard or controller card. The jump is worthwhile when a working PATA drive must connect to a SATA-only board, or when a SATA drive must serve an older IDE host. It does not support optical drives, so buyers needing CD or DVD conversion should look elsewhere.

Highlights

  • Connects legacy IDE drives to modern SATA systems
  • Bidirectional conversion supports both PATA-to-SATA and SATA-to-PATA modes
  • 5 Gbps transfer rate handles large IDE drives beyond 240 GB
  • Works with Windows 98 through Windows 10 plus Mac OS 8.6+
  • Includes SATA power cable, data cable and compact adapter board

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the Vszerda IDE 100 133 PATA to Dual SATA adapter, and what BIOS step is often missed?

Connect the 40-pin IDE port to the drive, attach the two Serial ATA ports to the motherboard, and plug in the 4-pin power connector. Then set the SATA controller to IDE or PATA mode in BIOS so the system recognises the converted signal.

What maintenance will this adapter need over time?

No firmware or driver updates are required. Periodically check that the 40-pin IDE cable, both SATA data cables and the 4-pin power connector remain firmly seated, and reseat them if the drive becomes intermittent.

What is the first limit I will hit during sustained transfers?

The board complies with Serial ATA 1.0, capping the link at 1.5 Gbps (150 MB/s), so sustained throughput cannot exceed that rate even if the attached drive is faster.
