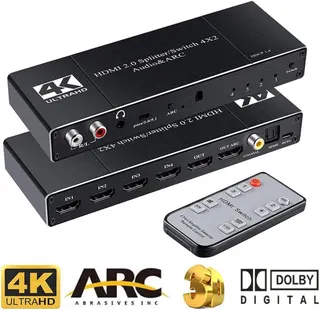

A compact black box with four HDMI inputs, two HDMI outputs, coaxial, optical and 3.5 mm audio jacks

Vszerda

Vszerda HDMI Switch 4x2 Audio Extractor 3.5mm Coaxial SPDIF 4K@60Hz 1080P@120Hz ARC HDCP 2.2

SKU CH-245S-JFYV2

Routes four HDMI sources to two displays at 4K 60 Hz and 1080P 120 Hz while extracting audio to 3.5 mm, coaxial and SPDIF outputs

  • Connect four sources to two displays with a 4×2 HDMI 2.0 matrix
  • Extract audio to coaxial, SPDIF and 3.5 mm jack simultaneously
  • Supports 4K at 60 Hz and 1080P at 120 Hz
  • HDCP 2.2 and HDR pass-through protect premium content
  • ARC return channel simplifies TV audio routing

4x2 HDMI Switch with Audio Extraction

This Vszerda HDMI 2.0 switch connects four source devices to two displays or projectors. It routes 4K video at 60 Hz and 1080p at 120 Hz with HDCP 2.2 and HDR support. The unit suits installers and home-cinema owners who need flexible distribution of multiple HDMI signals to a pair of screens.

Build and Connectivity

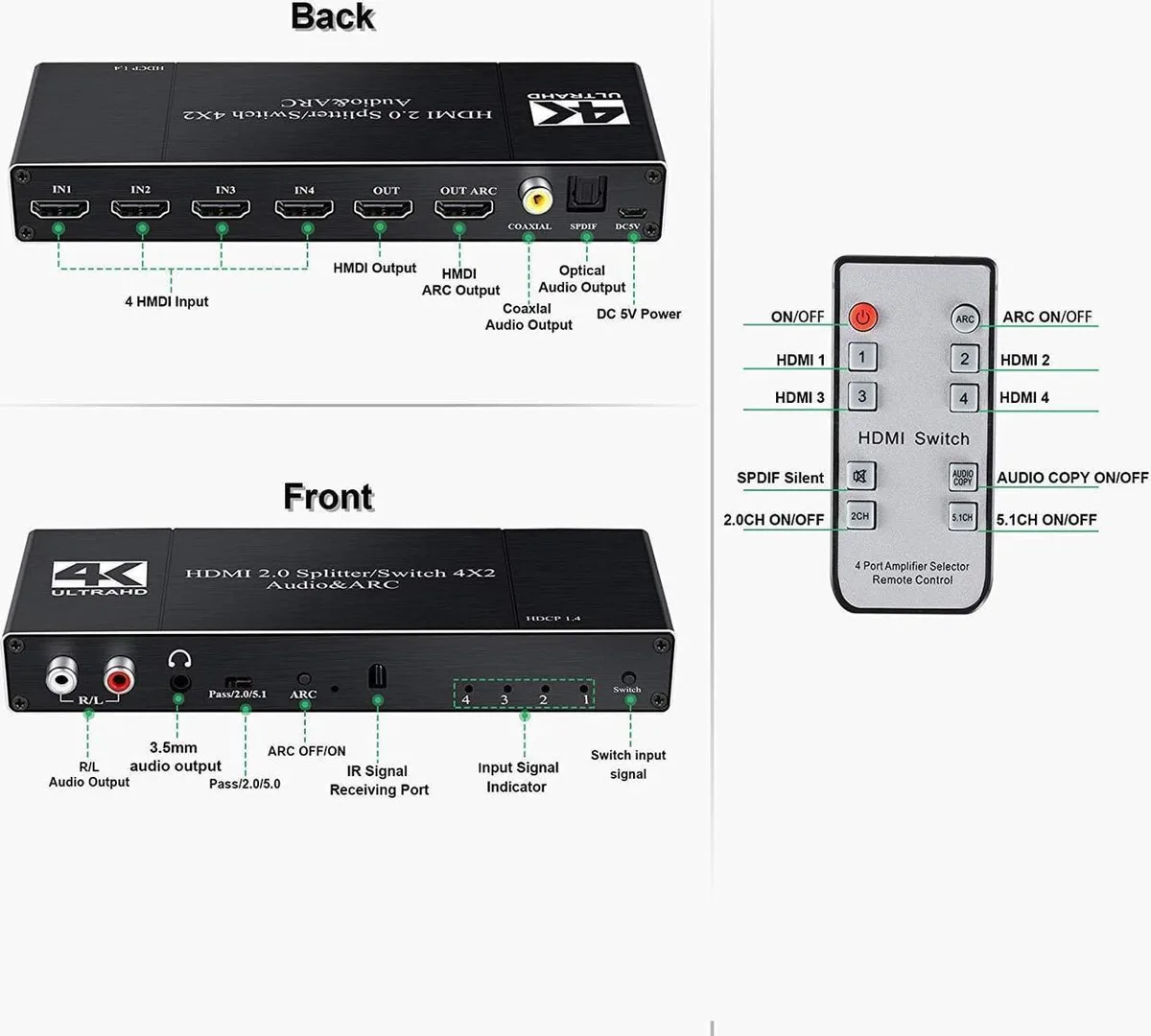

The metal enclosure houses four HDMI inputs and two HDMI outputs alongside coaxial, optical SPDIF and 3.5 mm analogue audio ports. Audio can be de-embedded to an amplifier or soundbar while the displays remain connected or even powered off. A 5 V DC power adapter accepting 100 to 240 V AC at 50 or 60 Hz is included for stable operation.

Thermals Noise and Power

Passive cooling keeps the switch silent in normal use with no moving parts to generate noise. The external power supply draws a maximum of 2 A at 5 V, so power consumption stays low during everyday switching. The fanless design ensures reliable performance in living rooms, meeting rooms or equipment racks without adding audible distraction.

Highlights

  • Connect four sources to two displays with a 4×2 HDMI 2.0 matrix
  • Extract audio to coaxial, SPDIF and 3.5 mm jack simultaneously
  • Supports 4K at 60 Hz and 1080P at 120 Hz
  • HDCP 2.2 and HDR pass-through protect premium content
  • ARC return channel simplifies TV audio routing

Specifications

No published specifications for this item yet.

Questions about this item

What HDMI standard does the 4x2 switch use, and what resolution and refresh rate does it cap at?

The switch uses HDMI 2.0 and supports up to 4K at 60 Hz and 1080P at 120 Hz.

What physical connections and power does the unit need to fit and mount?

It needs four HDMI inputs, two HDMI outputs, plus coaxial, SPDIF and 3.5 mm audio outputs, and a DC 5 V 2 A power adapter.

How is the switch installed, and what step do people often get wrong with ARC?

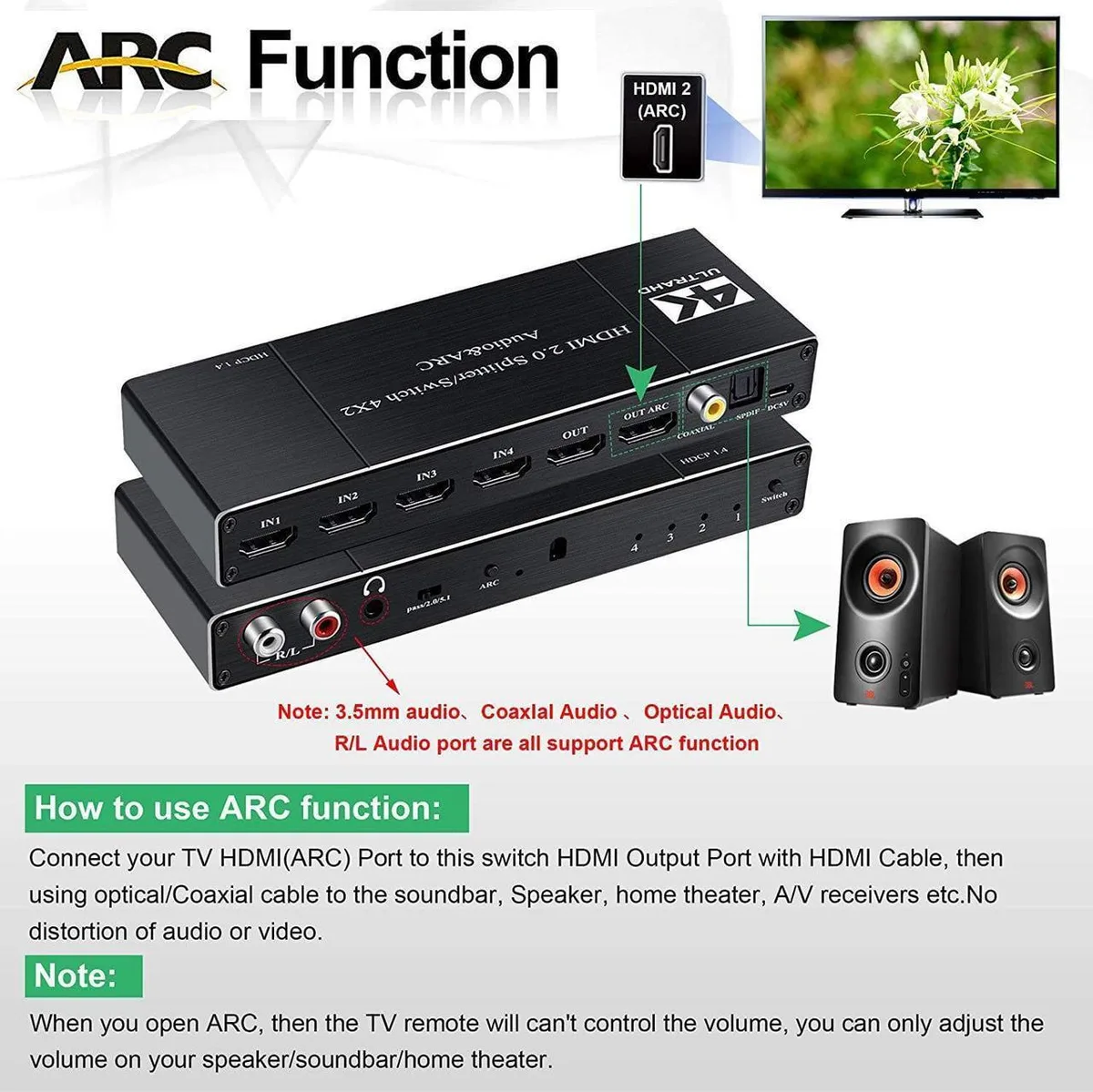

Connect sources to the four HDMI inputs, displays to the two HDMI outputs, and power the unit; for ARC, link the switch's ARC output to the display's ARC input, enable ARC on the display, and set the switch to PASS before selecting 5.1 channel audio.
