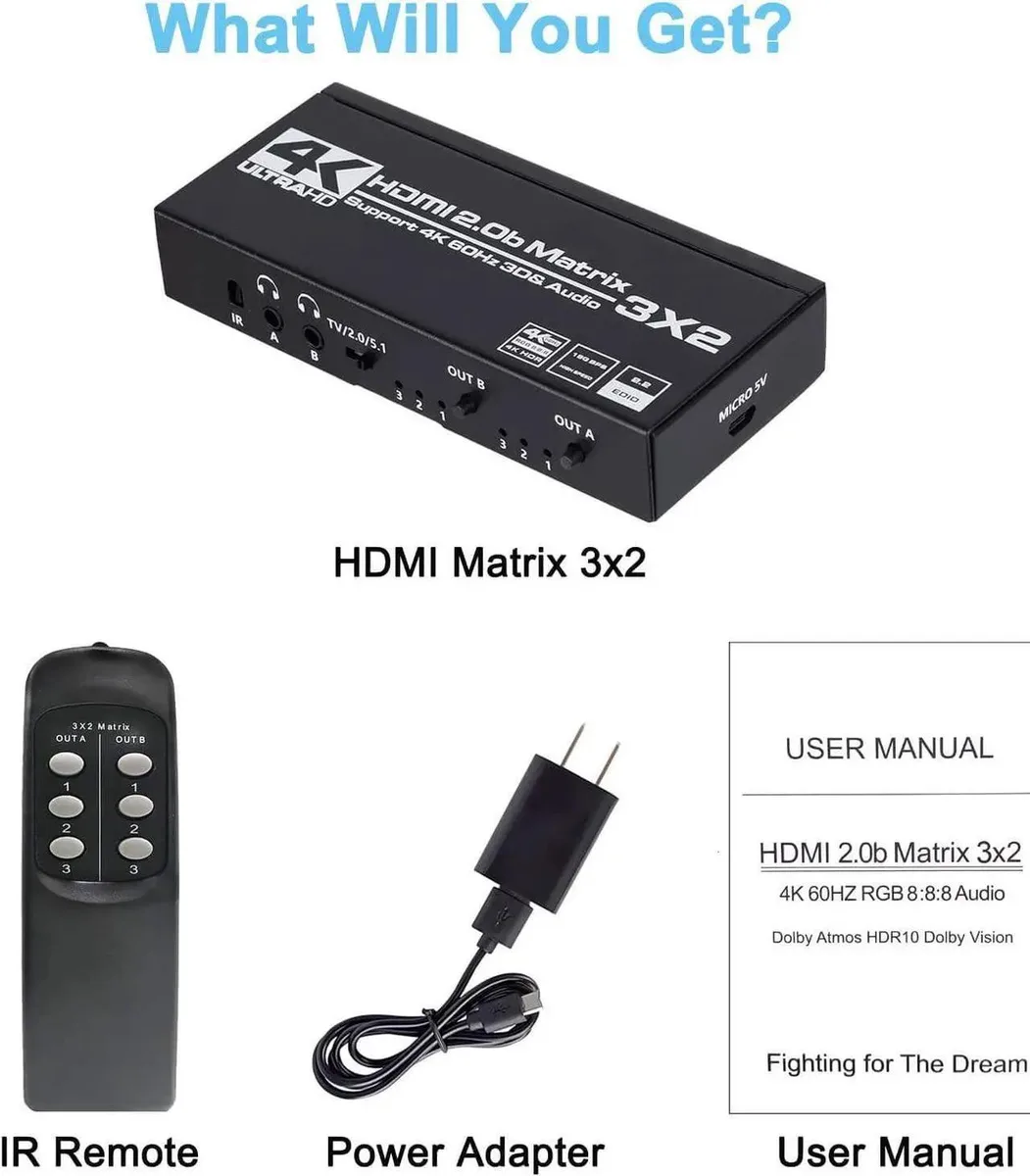

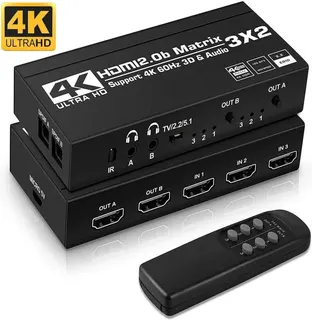

Black rectangular HDMI matrix switch with front panel buttons and ports

Vszerda

Vszerda HDMI Matrix 3x2 4K@60Hz HDR10 Audio Extract

SKU CH-9AFT-KR6FM

Connects three 4K HDR sources to two displays while extracting audio via SPDIF and 3.5 mm outputs, controlled by IR remote or front button

  • Connect three 4K HDR sources to two displays
  • Extract audio via SPDIF optical or 3.5mm stereo outputs
  • Built-in downscaler converts 4K signals to 1080p per output
  • Switch inputs with IR remote or front-panel button control
  • Supports 18.5 Gbps bandwidth with RGB 4:4:4 colour sampling

Three-source HDMI matrix

The Vszerda HDMI Matrix 3x2 routes three 4K HDR sources to two displays and extracts audio through optical SPDIF or 3.5 mm stereo outputs. It suits installers who need independent switching for dual-screen setups in meeting rooms or home theatres. The unit operates from a DC 5 V supply drawing up to 600 mA and functions between -15 °C and 45 °C.

18.5 Gbps bandwidth and HDCP 2.2

The switch passes 4K at 60 Hz with RGB 4:4:4 chroma, deep colour up to 48-bit and 3D formats while maintaining HDCP 2.2 compliance. EDID management is configurable per input so each source negotiates its preferred resolution and audio format. Downscaling from 4K to 1080p is built in for mixed-resolution displays.

IR remote and front-panel buttons

Switching is handled by the included IR remote or the local push button; the remote requires a AAA battery not supplied. Audio extraction works simultaneously on both SPDIF and analogue ports but only when the source audio format matches the selected EDID setting. The compact 170 × 56 × 24 mm chassis fits standard AV racks or desk mounting.

Highlights

  • Connect three 4K HDR sources to two displays
  • Extract audio via SPDIF optical or 3.5mm stereo outputs
  • Built-in downscaler converts 4K signals to 1080p per output
  • Switch inputs with IR remote or front-panel button control
  • Supports 18.5 Gbps bandwidth with RGB 4:4:4 colour sampling

Specifications

No published specifications for this item yet.

Questions about this item

What does 4K@60Hz actually deliver when the matrix is connected to my displays?

The unit passes 3840x2160 at 60 Hz with RGB 4:4:4 colour and HDR10, so each connected monitor receives the full 18.5 Gbps signal without chroma subsampling.

Which HDMI version and HDCP level limit the bandwidth and copy-protection handshake?

HDMI 2.0b and HDCP 2.2 set the 18.5 Gbps ceiling and enforce 4K premium-content rules on every input and output.

How much rack or shelf space does the 170×56×24 mm chassis need, and what power does it draw?

The box measures 170 mm long, 56 mm wide and 24 mm high, and runs from a 5 V supply at up to 600 mA.
