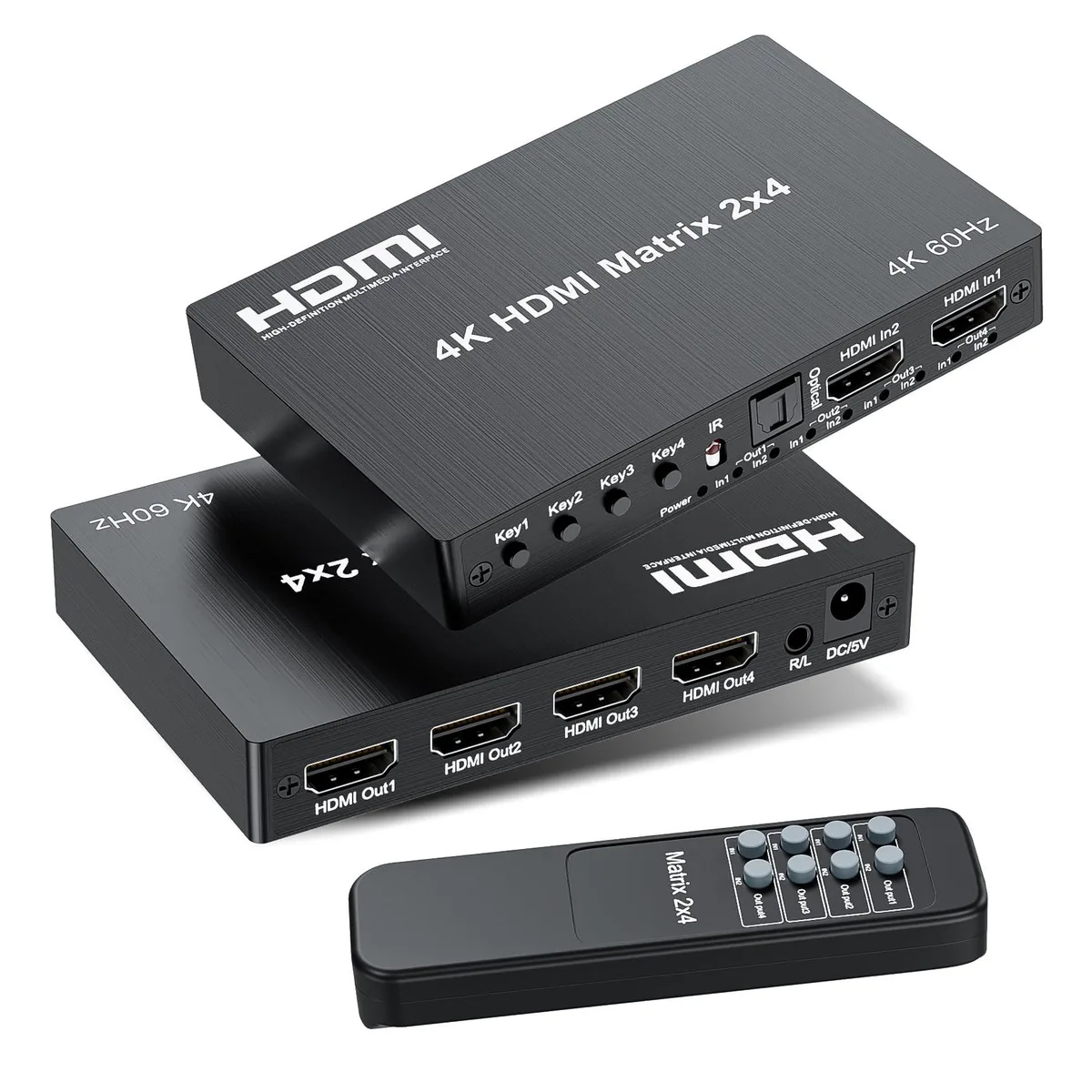

Black rectangular HDMI matrix switch box with IR remote control

Vszerda

Vszerda HDMI Matrix 2x4 4K 60Hz 18Gbps IR Remote Audio Extract

SKU CH-VRX1-BKZM4

A 2×4 HDMI matrix routes two sources to four displays at 4K 60 Hz with 18 Gbps bandwidth and extracts audio via optical or 3.5 mm outputs

  • TypeHDMI
  • Changer TypeHDMI
  • Input Connector6
  • Output ConnectorFemale
  • Maximum Resolutions4K 2X4 Matrix
  • Dimensions6.5 in x 4.7 in x 3.5 in
  • Routes two sources to four displays independently
  • Delivers 4K at 60 Hz with HDR and 18 Gbps bandwidth
  • Extracts audio via optical or 3.5 mm jack in LPCM, DTS 5.1 or Dolby AC3
  • Controlled by IR remote for source selection
  • Works with PC, consoles, streaming sticks and Blu-ray players

2x4 HDMI Matrix for Multi-Display Routing

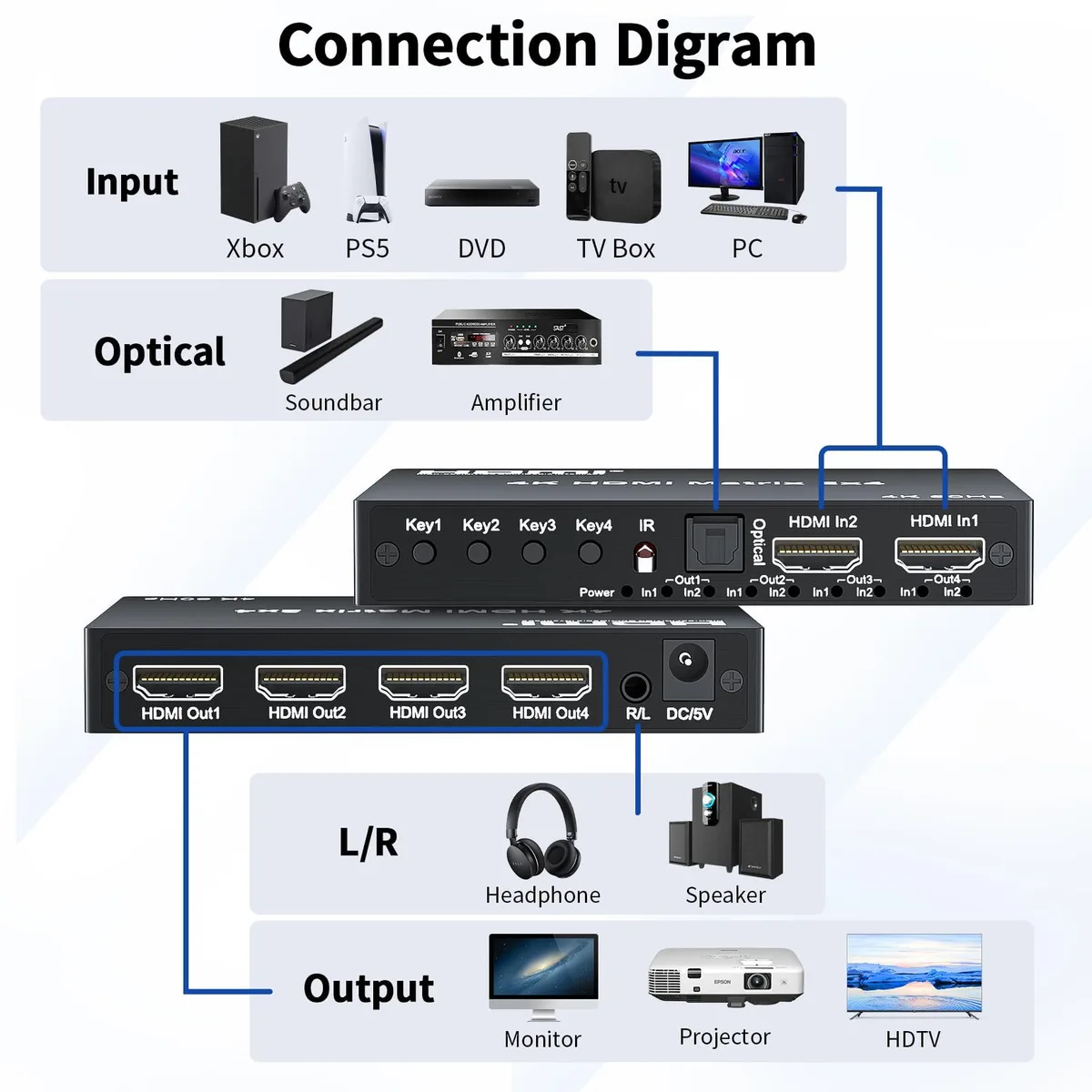

The Vszerda HDMI Matrix 2x4 routes two HDMI sources to four displays, letting any input appear on any output independently. It suits installers who need flexible distribution in home theatres, classrooms, conference rooms or digital-signage walls without dedicating a source to each screen.

Extracted Audio and IR Control Simplify Integration

Audio from the first output is mirrored to both a digital optical SPDIF port and a 3.5 mm analogue jack, supporting LPCM, DTS 5.1 and Dolby AC3 so external amplifiers or soundbars receive sound without an extra de-embedder. The included IR remote switches inputs from across the room, removing the need for front-panel button presses during presentations or movie nights.

Compact Metal Chassis with Full 18 Gbps Bandwidth

A black metal enclosure measuring 6.5 by 4.7 by 3.5 inches and weighing 0.41 kilograms houses HDMI 2.0 ports rated for 18 Gbps, HDCP 2.2 and 4K 60 Hz HDR. The matrix does not support ARC or CEC, so device control remains separate, and HDMI 2.1 sources must be set to 4K 60 Hz manually to maintain a stable link.

Highlights

  • Routes two sources to four displays independently
  • Delivers 4K at 60 Hz with HDR and 18 Gbps bandwidth
  • Extracts audio via optical or 3.5 mm jack in LPCM, DTS 5.1 or Dolby AC3
  • Controlled by IR remote for source selection
  • Works with PC, consoles, streaming sticks and Blu-ray players

Specifications

BrandLUKFOCAB
ModelSFX2X460-5V
Part NumberHDMI Matrix Switch 2X4
TypeHDMI
Changer TypeHDMI
Input Connector6
Output ConnectorFemale
Maximum Resolutions4K 2X4 Matrix
Dimensions6.5 in x 4.7 in x 3.5 in
Weight0.41 kilograms

Questions about this item

Will the IR remote need a battery change later?

The IR remote is included for switching inputs from a distance; the remote uses a standard coin cell that can be replaced when it runs low.

What bandwidth ceiling limits 4K 60 Hz signals through this matrix?

The switch is rated for 18 Gbps, which is the maximum throughput for 4K 60 Hz HDR content.

How warm does the unit get and how much power does it draw when running all day?

The matrix has no fan and draws minimal power from its 5 V supply, so it stays cool during continuous operation.
