Two small black boxes linked by a single Ethernet cable

Vszerda

Vszerda HDMI Extender 196ft 60m Cat6 1080p EDID

SKU CH-EA62-WR7KF

Transmits 1080p HDMI up to 196ft over a single Cat6 cable with EDID copy and 3D, HDCP, DTS-HD and Dolby TrueHD support

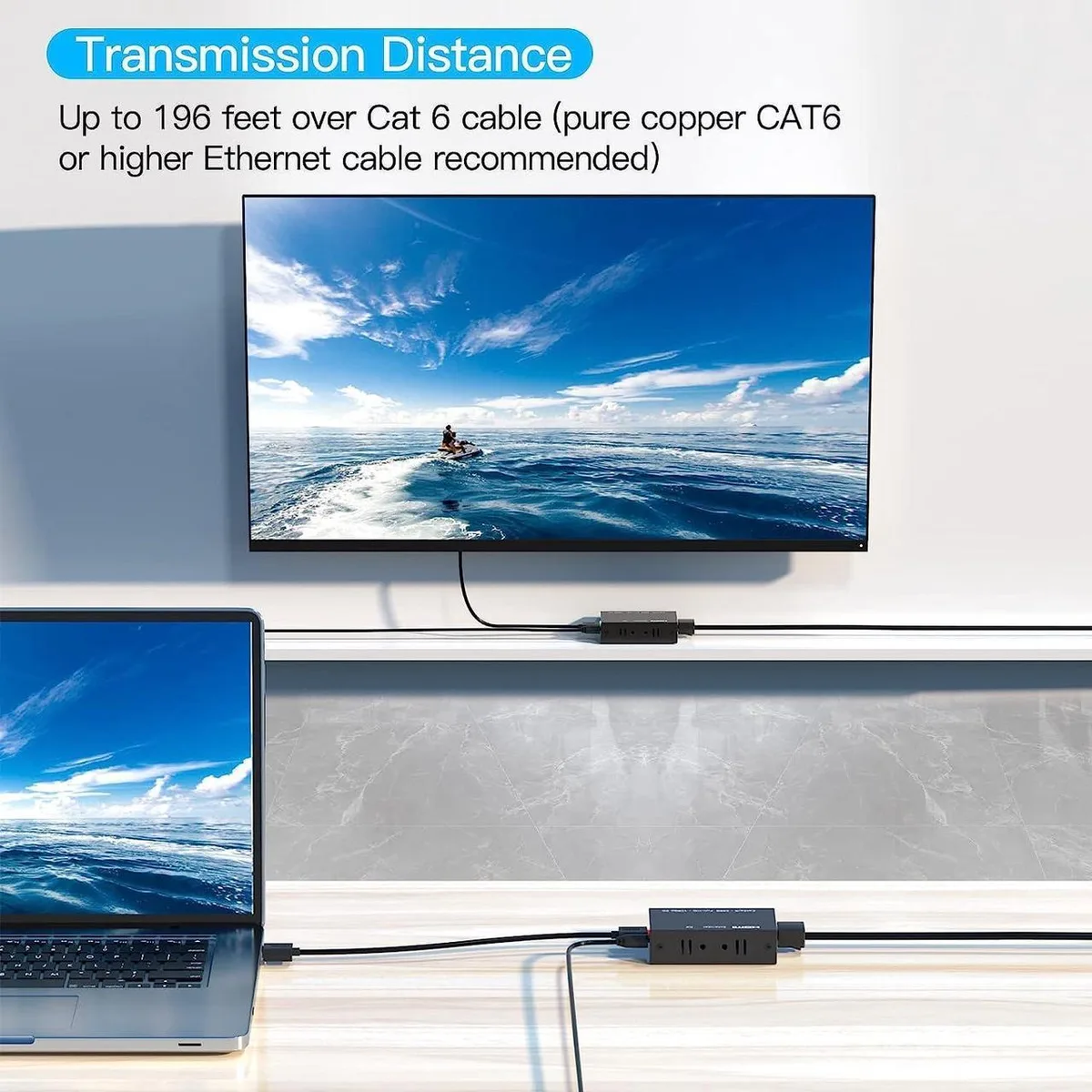

  • Transmits 1080p video up to 196ft over a single Cat6 cable
  • EDID copy button stores display settings for instant plug-and-play setup
  • Supports 3D and multi-channel audio formats including DTS-HD and Dolby TrueHD
  • 65Gbps bandwidth delivers full HD fidelity without compression
  • Works with home theatre, conferencing, security and broadcast installations

HDMI Extender Over Cat6

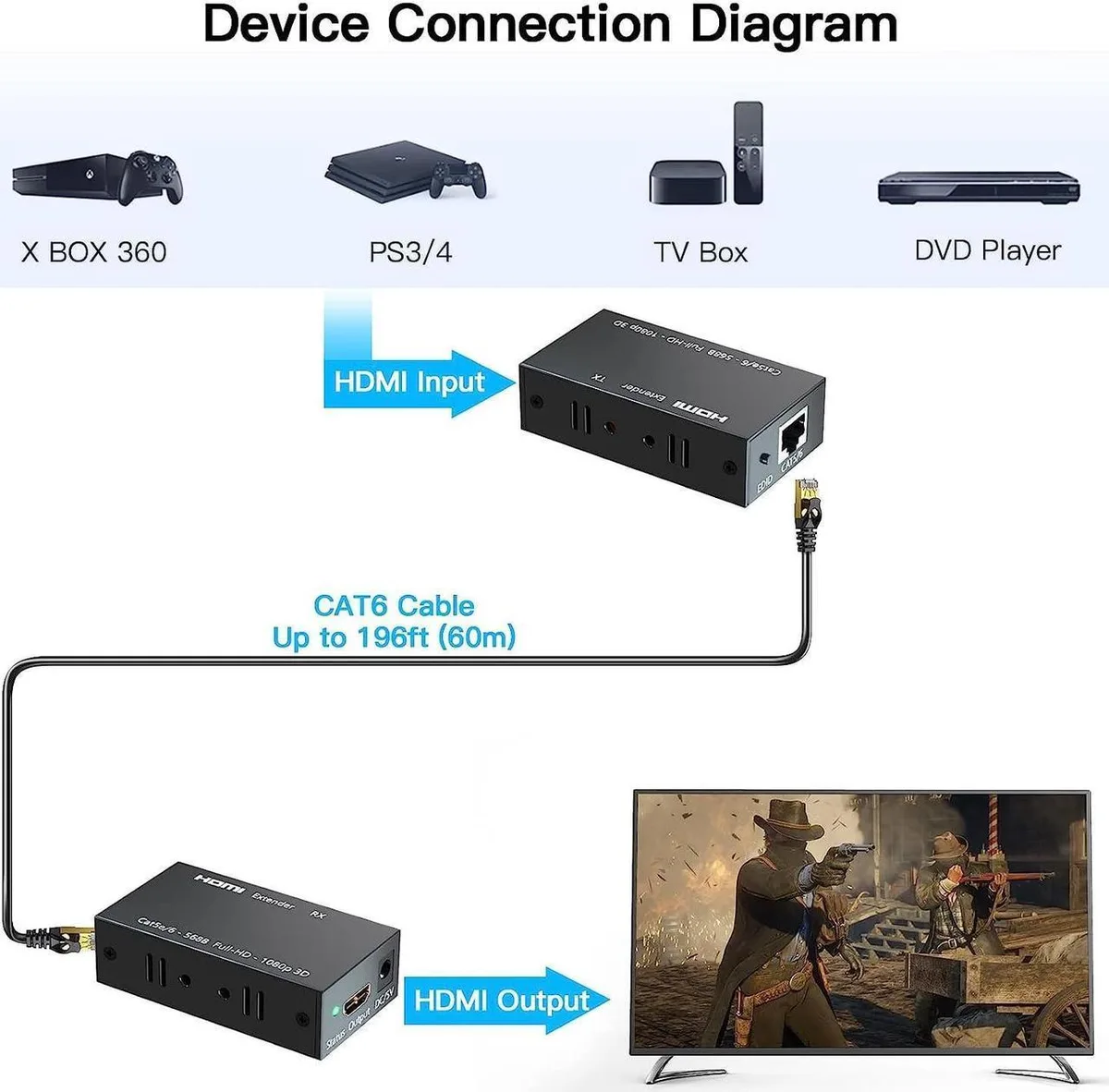

The Vszerda HDMI extender transmits 1080p video up to 196 feet using a single Cat6 cable. It includes a transmitter and receiver pair that supports 3D, HDCP and EDID copying. The kit is suited for home theatre, video conferencing or security monitoring installations where the source and display are far apart.

Build And Connection Notes

The unit uses broadcast-level bandwidth balancing and a high-performance digital chip for anti-interference transmission. It requires a solid copper Cat6 cable wired to the IEEE-568B standard and will not function through a router or switch. Power adapters accept 100 to 240 V AC at 50 or 60 Hz, and HDMI leads up to 16 feet AWG26 are supported at each end.

Compatibility Checklist

Verify that your source outputs no higher than 1920 by 1080 at 60 Hz, as 4K signals are not supported. Confirm the Cat6 run is a direct point-to-point link without intermediate network gear. Ensure you do not need IR remote pass-through, because this model lacks that function. Audio formats including DTS-HD and Dolby TrueHD are passed through.

Highlights

  • Transmits 1080p video up to 196ft over a single Cat6 cable
  • EDID copy button stores display settings for instant plug-and-play setup
  • Supports 3D and multi-channel audio formats including DTS-HD and Dolby TrueHD
  • 65Gbps bandwidth delivers full HD fidelity without compression
  • Works with home theatre, conferencing, security and broadcast installations

Specifications

No published specifications for this item yet.

Questions about this item

What resolution and refresh rate does the Cat6 HDMI extender cap at in practice?

The extender transmits up to 1920x1080 at 60 Hz over a single Cat6 cable with a maximum bandwidth of 1.65 Gbps.

What physical cable and connector standards are required for the 60 m link?

Use an oxygen-free copper Cat6 cable wired to the IEEE-568B standard; HDMI cables up to 16 ft AWG26 connect the transmitter and receiver to source and display.

How do I run the EDID copy routine and what step is commonly missed?

Connect the sender to the monitor with an HDMI cable, power the sender, then press and hold the EDID button until the indicator flashes three times; the setting is stored unless the button is pressed again.
