Small black aluminium box with HDMI, Toslink, coaxial and 3.5 mm ports

Vszerda

Vszerda HDMI ARC Extractor 192KHz Toslink Coaxial 3.5mm

SKU CH-GZDC-2NR5V

Extracts TV ARC audio to optical, coaxial and 3.5 mm analogue outputs with 192 kHz sampling

  • Extracts TV audio via ARC to optical, coaxial and 3.5 mm
  • Supports 32, 44.1, 48, 96 and 192 kHz sampling rates
  • Optical and coaxial handle 5.1 CH, 3.5 mm handles 2.0 CH
  • Plug-and-play ARC mode needs no extra setup
  • Aluminium alloy housing with noise-reduction and signal-gain chips

HDMI ARC Audio Extractor

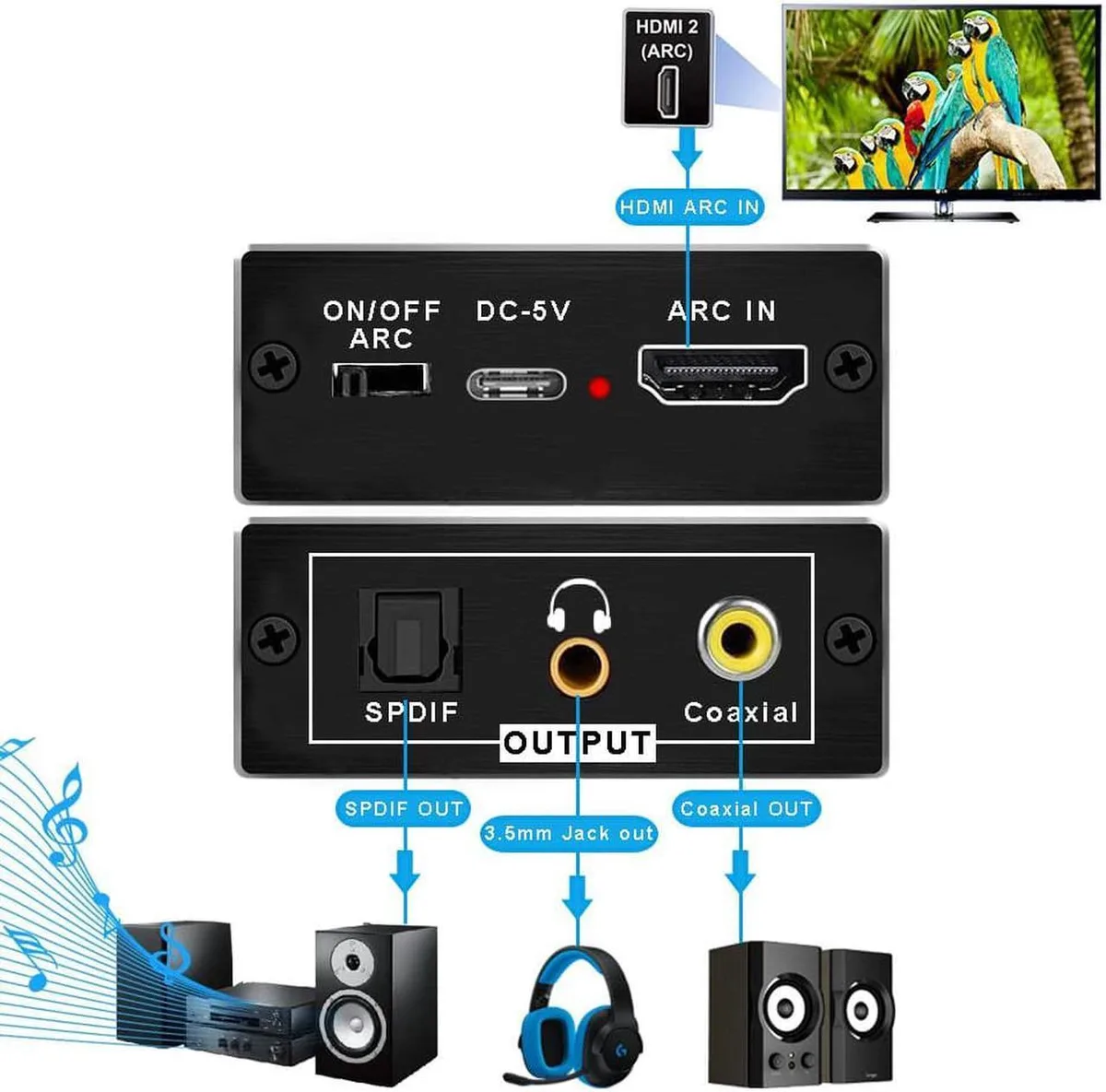

The Vszerda extractor takes the Audio Return Channel signal from a compatible television and splits it into optical Toslink, coaxial and 3.5 mm analogue outputs. It is intended for owners of soundbars, AV receivers or powered speakers that lack an HDMI ARC input but need the TV's internal app or tuner audio. The television must provide an ARC-enabled HDMI port; without it the adapter cannot function.

192 kHz Sampling and Channel Support

Optical and coaxial outputs handle 5.1-channel surround sound and remain backward compatible with 2.0-channel stereo, while the 3.5 mm jack is limited to 2.0-channel PCM or LPCM only. Supported sampling rates are 32, 44.1, 48, 96 and 192 kHz. CEC pass-through is not implemented, so the TV remote will not control external speaker volume once ARC is active.

Aluminium Chassis with Noise Reduction

An aluminium alloy housing provides passive heat dissipation and physical durability without a fan. Internal high-end chips apply digital noise reduction and signal gain techniques, and the unit features automatic signal muting plus a switchable noise-reduction mode for cleaner output during quiet passages. Power is supplied via an external USB source (not included).

Highlights

  • Extracts TV audio via ARC to optical, coaxial and 3.5 mm
  • Supports 32, 44.1, 48, 96 and 192 kHz sampling rates
  • Optical and coaxial handle 5.1 CH, 3.5 mm handles 2.0 CH
  • Plug-and-play ARC mode needs no extra setup
  • Aluminium alloy housing with noise-reduction and signal-gain chips

Specifications

No published specifications for this item yet.

Questions about this item

Will this extractor work with my older soundbar that only has a Toslink input?

Yes, the extractor provides a Toslink optical output that supports 5.1-channel audio and is backward compatible with 2.0-channel, so it will connect directly to your soundbar's optical input.

How can I confirm the extractor is passing audio correctly once connected?

After powering on and switching to HDMI ARC mode, audio should play immediately from the connected device; the unit supports 32, 44.1, 48, 96 and 192 kHz sampling rates and has an automatic signal mute function that activates if no valid signal is present.

What cables are included and what must I supply myself?

The extractor itself is supplied; you will need to provide an HDMI cable to link the TV's ARC port to the extractor, plus either a Toslink optical cable, a coaxial digital cable or a 3.5 mm stereo cable for the audio output to your sound system.
