Vszerda eSATA to SATA 22-pin cable with USB 2.0 power, 50cm

Vszerda

Vszerda eSATA to SATA 22Pin Cable USB 2.0 Power 2.5" 50cm

SKU CH-T3PD-70VQQ

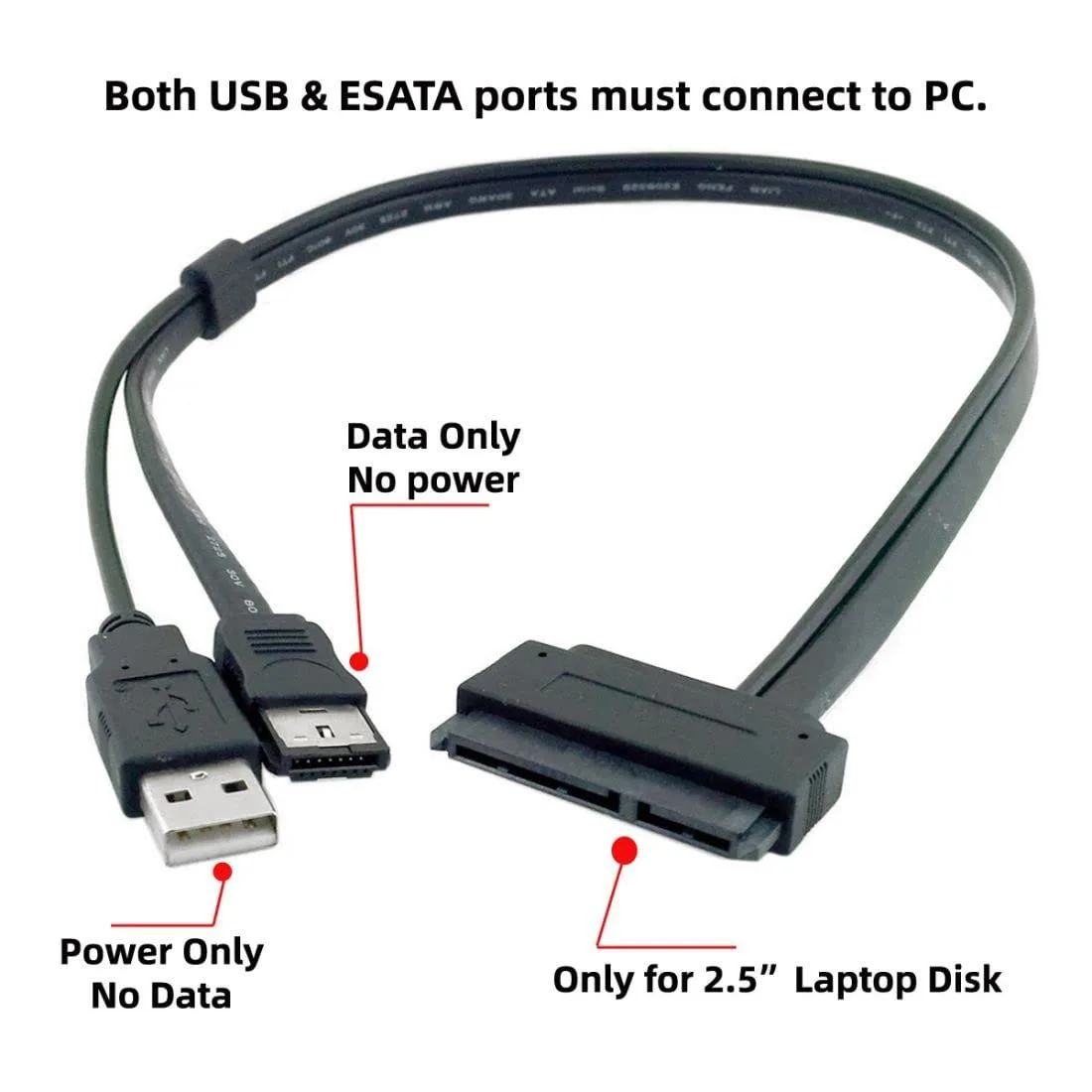

Connects a 2.5" SATA drive to an eSATA port with USB 2.0 power using a 22-pin, 50cm male-to-male copper cable

  • TypeSATA
  • Connector DetailUsb
  • Terminal GenderMale-to-Male
  • ConductorCopper
  • FeaturesPower ESATA
  • Connect 2.5" SATA drive to eSATA port
  • USB 2.0 connector supplies 5 V power only
  • 50 cm cable length for flexible placement
  • Male-to-male 22-pin SATA to eSATA link
  • Copper conductors for reliable data transfer

Direct SATA to eSATA link

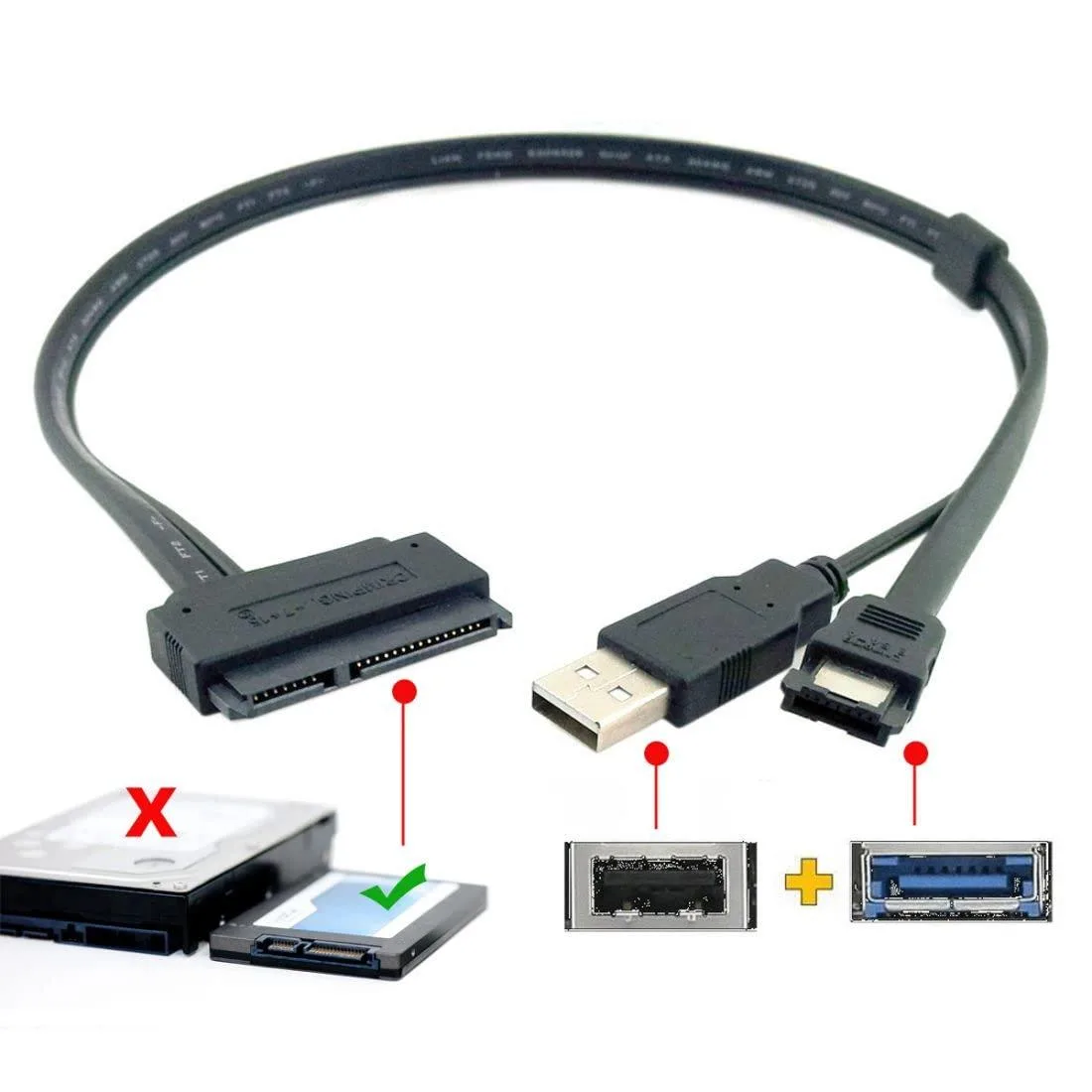

This cable bridges a 2.5-inch SATA hard drive to a computer's eSATA port for data transfer. A USB 2.0 plug draws 5 V power from the host so the drive runs without an external adapter. The 50 cm length suits internal or tight external routing. Copper conductors carry the SATA signals end to end.

Replaces separate power and data leads

Earlier setups needed a SATA data cable plus a molex or USB power brick for the same drive. This single assembly handles both jobs when the host has an eSATA port and a spare USB socket. The jump is worth it for technicians moving 2.5-inch drives between test benches or laptops with eSATA but no powered dock.

Verify host ports and drive height

Confirm the computer provides a genuine eSATA connector and a standard USB Type-A port for power. The drive must be a 2.5-inch SATA unit; 3.5-inch models need more current than USB 2.0 can supply. Check that the 50 cm reach fits your chassis layout before ordering.

Highlights

  • Connect 2.5" SATA drive to eSATA port
  • USB 2.0 connector supplies 5 V power only
  • 50 cm cable length for flexible placement
  • Male-to-male 22-pin SATA to eSATA link
  • Copper conductors for reliable data transfer

Specifications

Brandchenyang
ModelSA-075-CY
TypeSATA
Connector DetailUsb
Terminal GenderMale-to-Male
ConductorCopper
FeaturesPower ESATA

Questions about this item

What connectors does the 22-pin SATA end of the cable plug into?

The 22-pin SATA connector combines data and power in one plug that fits directly into a 2.5-inch SATA hard drive socket.

In which order should the eSATA and USB 2.0 connectors be attached during installation?

First attach the SATA connector to the drive and the eSATA connector to the computer, then plug the USB 2.0 connector into a USB port for 5 V power.

How long is the cable and what conductor material is used?

The cable is 50 cm long and uses copper conductors for the data and power lines.
