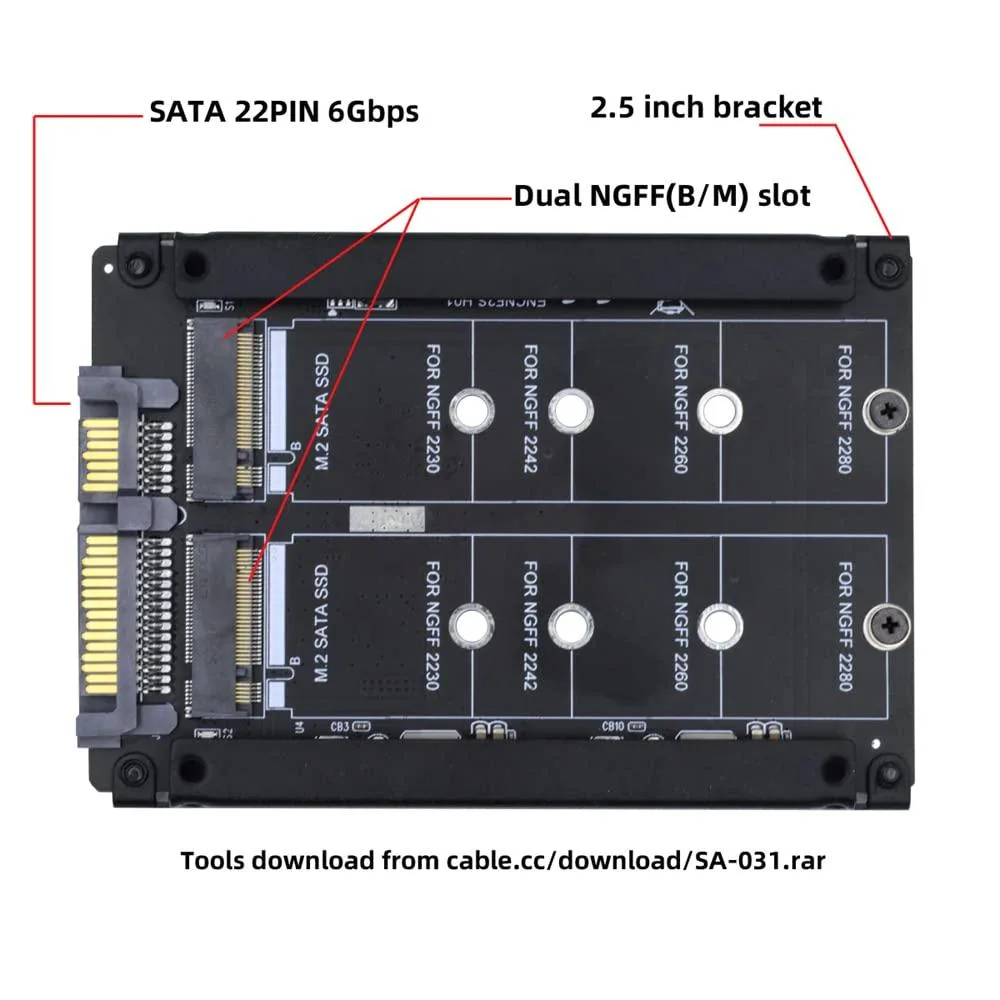

Green circuit board with two M.2 slots and 2.5 SATA connector

Vszerda

Vszerda Dual NGFF B+M Key M.2 SSD JBOD Raid0 Span Bridge 2.5 SATA Enclosure

SKU CH-CQVK-0AMQ8

Holds two B+M-key SATA M.2 drives in JBOD or RAID 0 and presents them as a single 2.5-inch SATA device

  • Supports four M.2 form factors from 22×30 mm to 22×80 mm
  • JBOD mode lets each drive operate independently
  • RAID 0 span combines two NGFF SSDs into one volume
  • Transparent to the OS with no driver installation required
  • Fits 2.5 inch SATA bays in desktops or laptops

Dual NGFF SATA Bridge Enclosure

This enclosure converts two B-key or B+M-key M.2 NGFF SATA SSDs into a single 2.5-inch SATA drive. It accepts module lengths of 22 by 30, 42, 60 or 80 millimetres and presents them to the host as one logical volume. The device is suited for builders adding SATA M.2 storage to a laptop or desktop bay without an M.2 slot.

JBOD and Span Limitations

The bridge operates in JBOD mode, so each SSD remains an independent drive unless the host system combines them into a RAID 0 span. No hardware RAID controller is onboard; spanning relies entirely on the operating system or BIOS. The enclosure is transparent to the OS and requires no driver installation.

B+M Key SATA Only

Only M.2 NGFF SSDs using the SATA transmission protocol with B or B+M key notches are supported. NVME M-key drives will not function in this enclosure. Buyers with NVME drives or with M-key-only SATA modules must choose a different adapter.

Highlights

  • Supports four M.2 form factors from 22×30 mm to 22×80 mm
  • JBOD mode lets each drive operate independently
  • RAID 0 span combines two NGFF SSDs into one volume
  • Transparent to the OS with no driver installation required
  • Fits 2.5 inch SATA bays in desktops or laptops

Specifications

No published specifications for this item yet.

Questions about this item

Which M.2 lengths does the enclosure accept?

It fits 22×30 mm, 22×42 mm, 22×60 mm and 22×80 mm NGFF SSDs.

What speed will I actually see when two drives run in JBOD Raid0 Span mode?

Both drives share a single SATA link, so combined throughput stays within the SATA bus limit.

Does the bridge use SATA or NVMe protocol?

It only works with B-key or B+M-key SATA NGFF SSDs and does not support NVME drives.
