Green circuit board with two M.2 slots and a silver low-profile bracket

Vszerda

Vszerda Dual M.2 NVMe PCIe 3.1 x8 Adapter with Low-Profile Bracket

SKU CH-AWMW-QREZJ

Adds two M-key NVMe SSDs in 2230, 2242, 2260, 2280 or 22110 sizes to a PCIe 3.1 x8 or x16 slot using an ASM2812 controller that avoids motherboard bifurcation

  • Add two NVMe drives without motherboard bifurcation via ASM2812 chipset

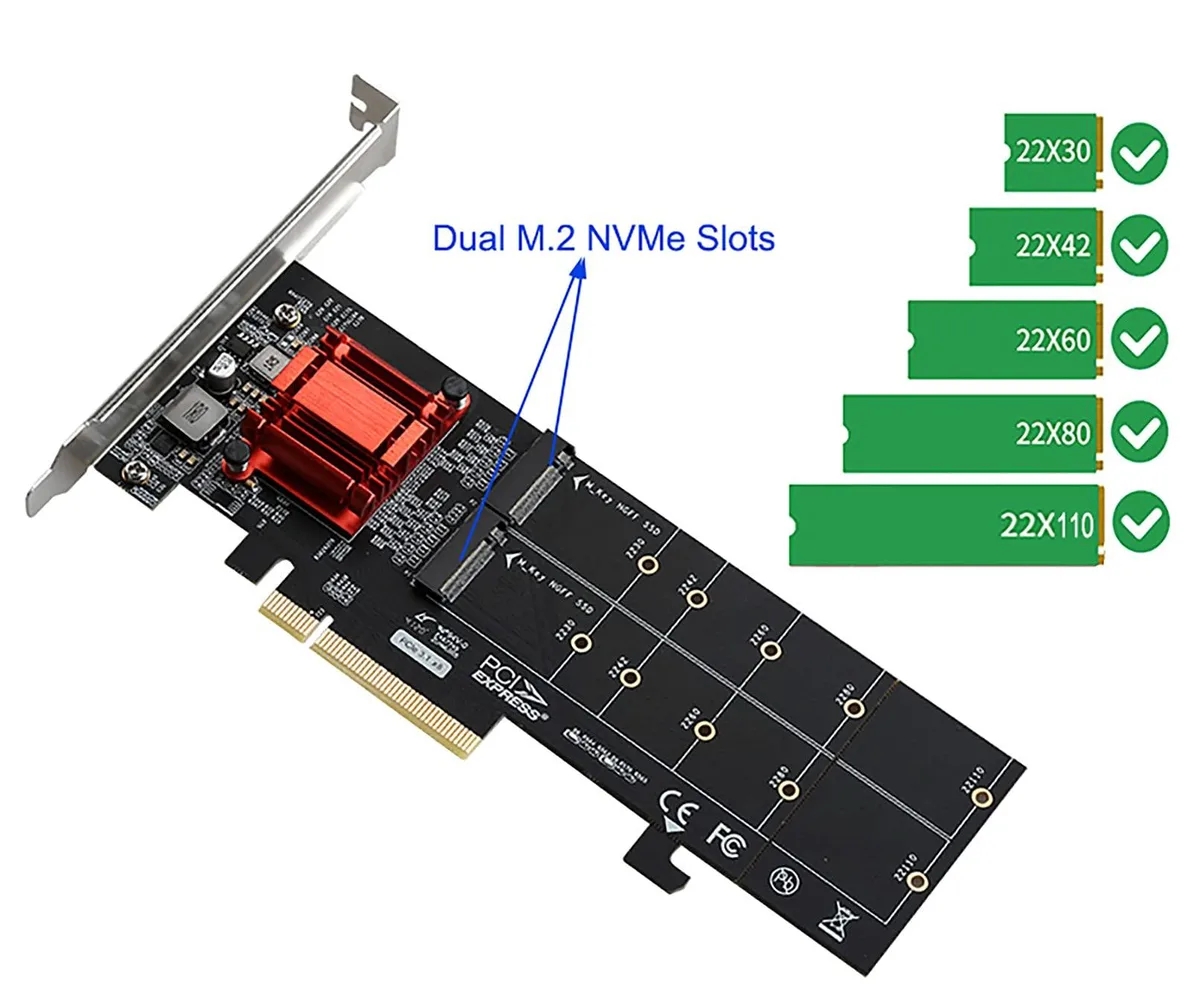

  • Fits 2230 2242 2260 2280 22110 M-key NVMe SSDs on adjustable standoffs
  • Single-drive speeds up to 3.5GB/s read and 3.2GB/s write
  • Works in PCIe 3.1 x8 or x16 slots, backward compatible with 3.0 2.0 1.0
  • Includes low-profile bracket for small-form-factor installation

Dual M.2 NVMe PCIe 3.1 x8 Adapter

This adapter installs two M.2 M-key NVMe SSDs into a single PCIe 3.1 x8 or x16 slot. It uses an ASMedia ASM2812 chipset so each drive receives a dedicated x4 lane without requiring motherboard bifurcation support. The card targets desktop workstations or servers needing extra high-speed storage.

Check your motherboard and drives first

Verify you have a free PCIe x8 or x16 slot compatible with PCIe 3.0, 2.0 or 1.0 standards. Only M.2 PCIe-based M-key NVMe SSDs are supported; SATA-based B+M key or B-key drives will not work. Older motherboards may lack NVMe boot capability, so confirm the board specification before planning a boot installation.

Build quality and daily implications

The PCB includes two M-key sockets with adjustable stand-offs and multiple mounting holes for 2230, 2242, 2260, 2280 and 22110 form factors. A full-height bracket is fitted and a low-profile bracket is included for small-form-factor cases. Two mounting screws secure each drive. Software RAID 0, 1 or JBOD can be configured through the operating system or third-party tools.

Highlights

  • Add two NVMe drives without motherboard bifurcation via ASM2812 chipset
  • Fits 2230 2242 2260 2280 22110 M-key NVMe SSDs on adjustable standoffs
  • Single-drive speeds up to 3.5GB/s read and 3.2GB/s write
  • Works in PCIe 3.1 x8 or x16 slots, backward compatible with 3.0 2.0 1.0
  • Includes low-profile bracket for small-form-factor installation

Specifications

No published specifications for this item yet.

Questions about this item

What comes in the box and what do I need to buy separately?

The package includes the dual NVMe PCIe adapter card, a low-profile bracket and two SSD mounting screws. You must supply two M-key NVMe SSDs in any of the supported lengths.

Which M.2 lengths does this adapter accept?

The board has adjustable standoffs and mounting holes for 2230, 2242, 2260, 2280 and 22110 form factors.

What do the 3.5 GB/s and 3.2 GB/s figures mean once the card is installed?

Those are the maximum sequential read and write speeds per drive when each SSD runs on its own PCIe 3.1 x4 lane through the ASM2812 chipset.
