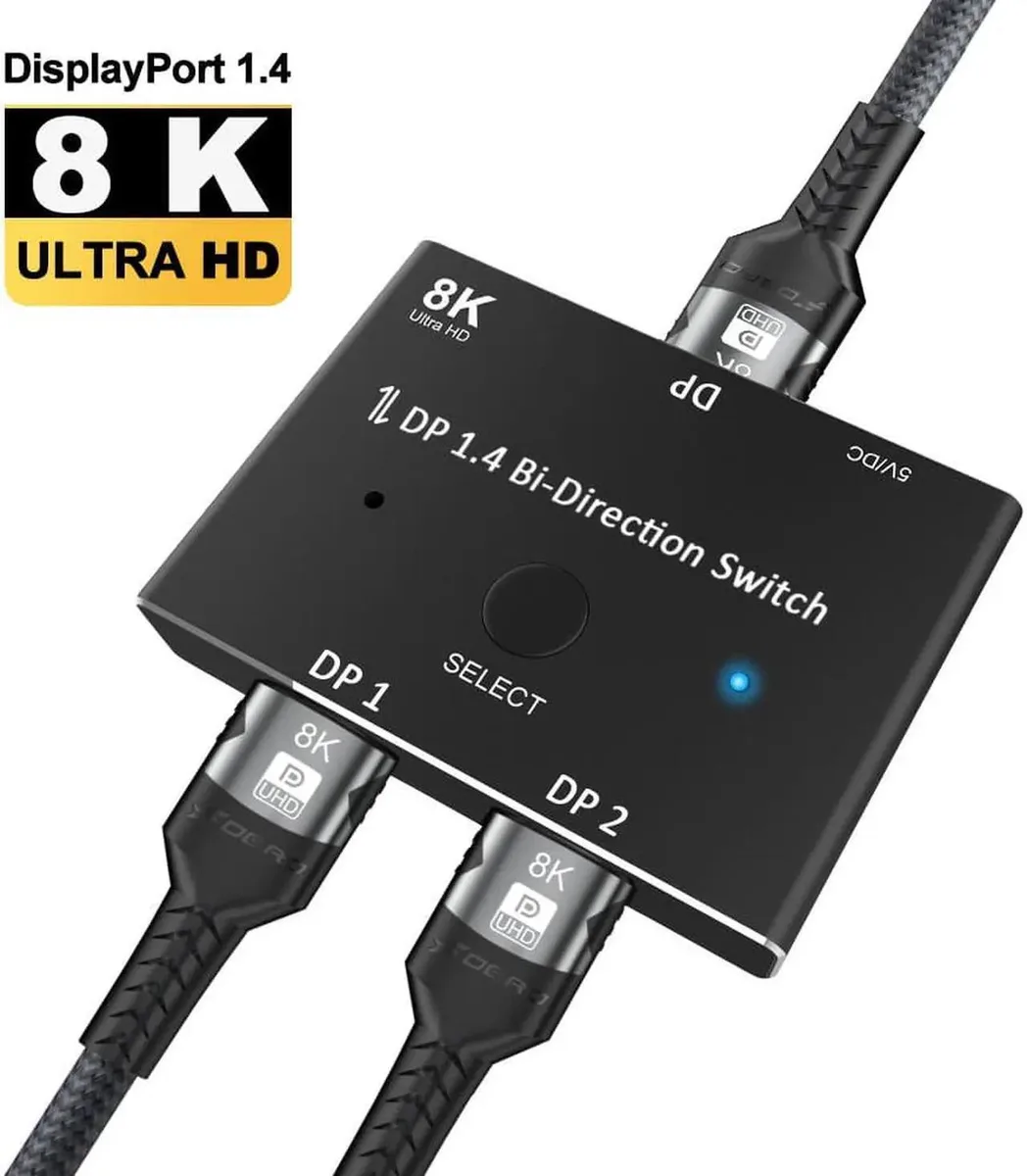

Compact silver alloy DisplayPort switch box with select button and indicator lights

Vszerda

Vszerda DisplayPort 1.4 Bi-Directional Switch 8K60 4K120

SKU CH-3T5C-B5KD6

Bi-directional DisplayPort 1.4 switch toggles between two sources or two displays at up to 8K60, 4K120 and 1080p240 with 32.4 Gbps bandwidth

  • Switch two sources to one display or one source between two displays
  • Supports 8K at 60 Hz and 4K at 120 Hz for high-resolution viewing
  • Delivers up to 32.4 Gbps bandwidth with DisplayPort 1.4 cables
  • Handles 1080p at 240 Hz and 1440p at 165 Hz for fast gaming

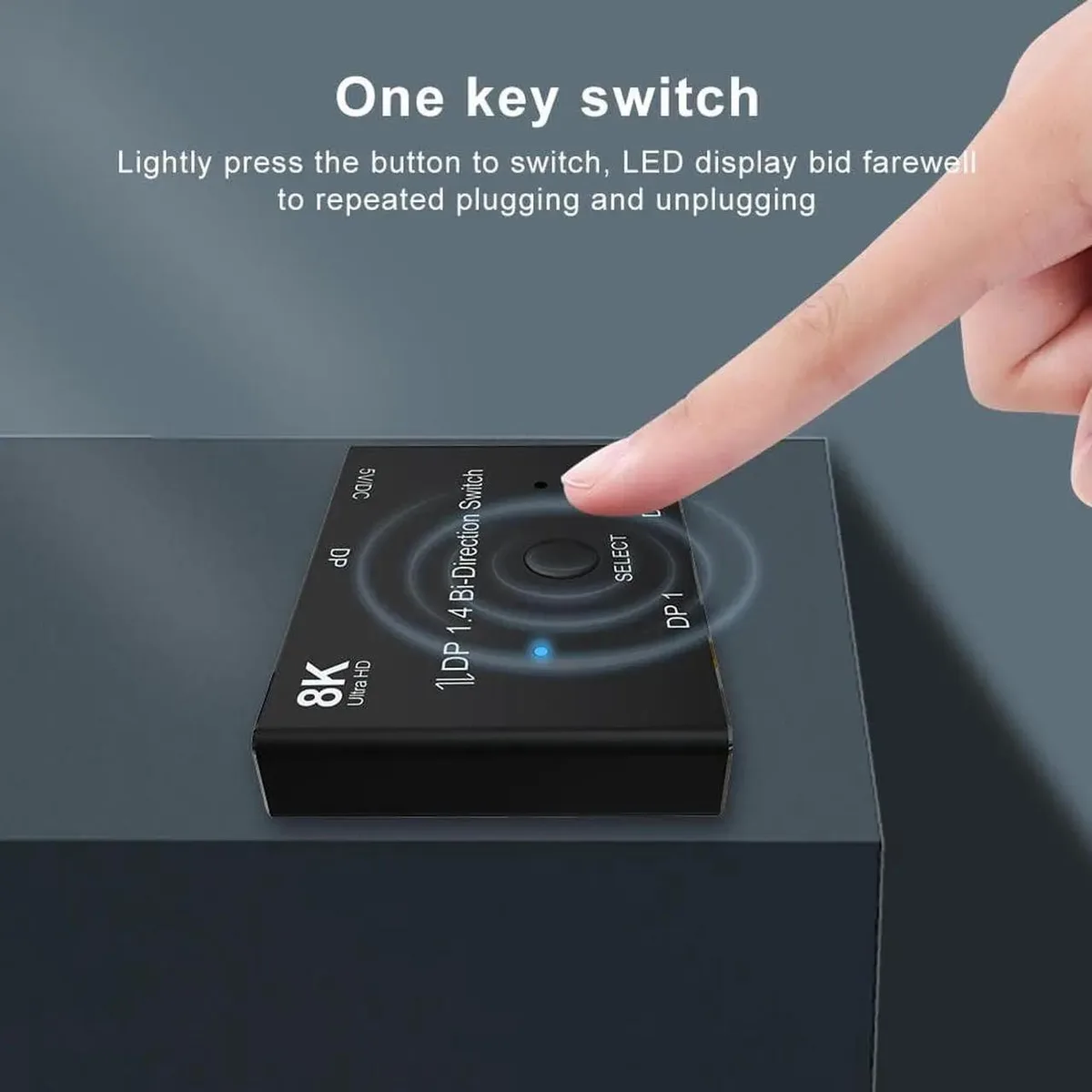

  • Manual button switching with LED indicators shows active port instantly

Bi-directional DP 1.4 switch

This DisplayPort 1.4 switch connects two sources to one display or one source to two displays in a manual bi-directional layout. It is built for users who need to toggle between a workstation and a gaming rig on a single monitor, or shift one PC between two screens. The alloy housing and tin-plated ports resist wear and interference. Simultaneous output to both displays is not supported.

Bandwidth ceiling at 32.4 Gbps

The DP 1.4 interface caps usable bandwidth at 32.4 Gbps, so every connected cable must meet the 1.4 specification to reach the advertised rates. Without certified cables the link falls back to lower DP revisions and the highest resolutions become unavailable. The button press swaps the active path in roughly one second while indicator LEDs confirm the selected channel. External power is required for reliable operation.

Resolution headroom and limits

At the top end the switch passes 8K at 60 Hz, 5K at 60 Hz and 4K at 120 Hz when the source, cable and display all support those modes. High-refresh gaming is covered up to 1440p at 165 Hz and 1080p at 240 Hz. Pushing beyond 8K 60 Hz or driving two monitors at once exceeds the hardware capability, so buyers needing simultaneous multi-monitor output or higher refresh at 8K should look elsewhere.

Highlights

  • Switch two sources to one display or one source between two displays
  • Supports 8K at 60 Hz and 4K at 120 Hz for high-resolution viewing
  • Delivers up to 32.4 Gbps bandwidth with DisplayPort 1.4 cables
  • Handles 1080p at 240 Hz and 1440p at 165 Hz for fast gaming
  • Manual button switching with LED indicators shows active port instantly

Specifications

No published specifications for this item yet.

Questions about this item

Should I choose the 2-in-1-out or 1-in-2-out mode for my setup?

Select 2-in-1-out to connect two DisplayPort sources to one display, or 1-in-2-out to switch one source between two displays; both modes cannot show on two screens at the same time.

What does the 8K@60Hz rating mean when the switch is installed in my PC?

It means the switch passes an 8K signal at 60 frames per second, 4K at 120 Hz or 1080p at 240 Hz, provided you use standard DisplayPort 1.4 cables on every link.

How does the DisplayPort 1.4 interface limit the bandwidth in practice?

The DP 1.4 connection caps throughput at 32.4 Gbps, which is the ceiling for 8K60, 4K120 and 1080p240 signals through this switch.
