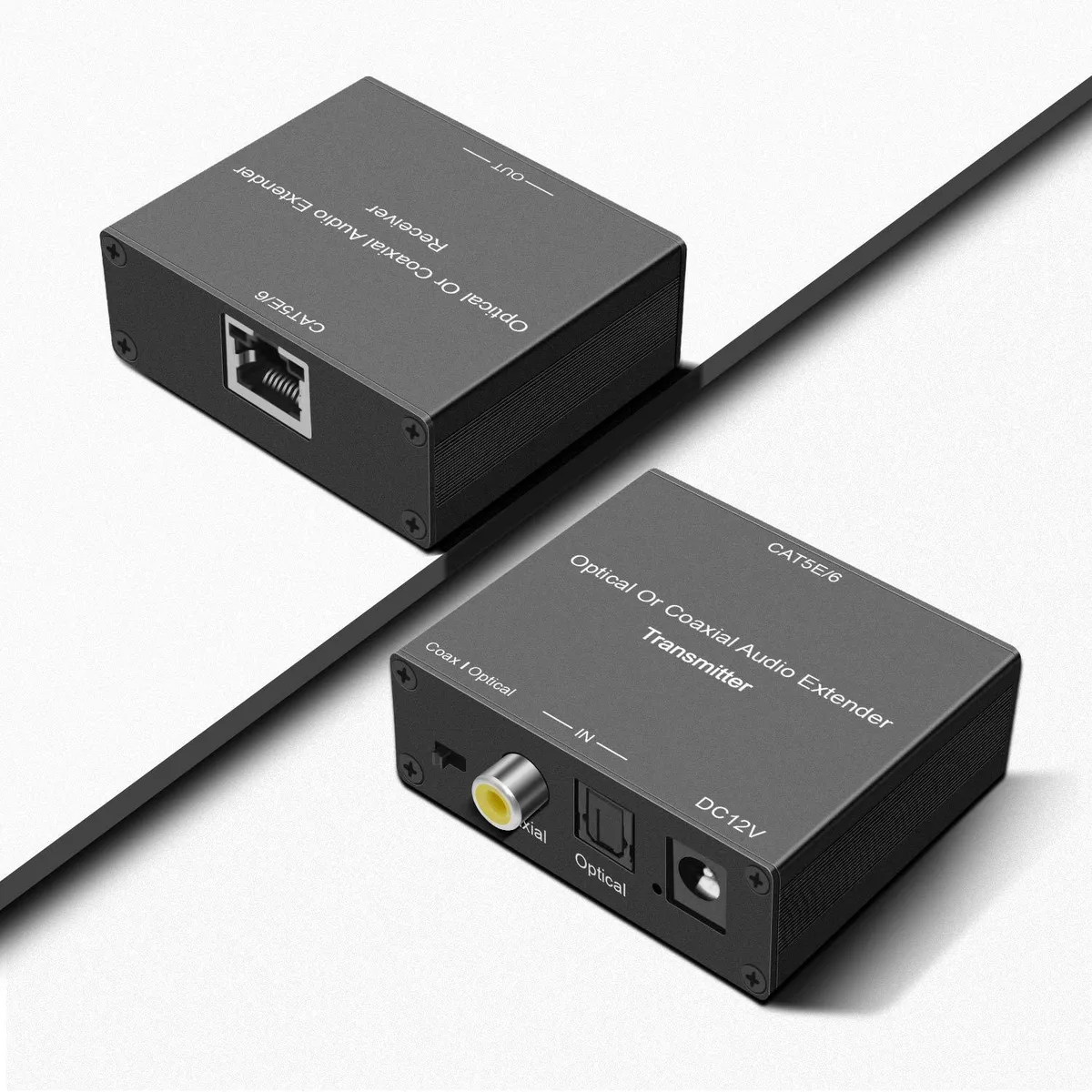

Small black transmitter and receiver boxes with Toslink and coaxial ports, linked by a single Ethernet cable

Vszerda

Vszerda Digital Audio Extender Toslink Coaxial over Cat5e/6 500ft 96kHz 12.8Mb/s

SKU CH-6TDY-6Z7ZF

Extends Toslink or coaxial digital audio up to 500 feet over Cat5e/6 cable at 96 kHz and 12.8 Mb/s with surge protection

  • Transmits digital audio up to 500 ft over Cat5e/6 cable
  • Supports Dolby Digital, DTS 5.1 and DTS-HD surround formats
  • Handles 96 kHz sampling rate at 12.8 Mb/s data rate
  • Powered from transmitter side only with included 12 V adapter
  • Built-in 2 kV/4 kV surge protection safeguards connected equipment

Digital audio extender over Cat5e/6

This Vszerda extender sends Toslink or coaxial S/PDIF signals up to 500 feet over a single Cat5e or Cat6 cable. It handles uncompressed LPCM and compressed 5.1 or 7.1 surround formats including Dolby Digital, DTS and Dolby TrueHD. The transmitter requires only a 12 V DC supply and includes a red power indicator.

Maximum reach 500 feet at 96 kHz sampling

The key figure is the 500-foot distance at up to 96 kHz with a 12.8 Mb/s data rate. Coaxial ports present 75 ohms impedance at 500 mVp-p while the optical interface uses a 660 nm wavelength. Surge protection is rated at 2 kV differential and 4 kV common mode.

Power only the transmitter unit

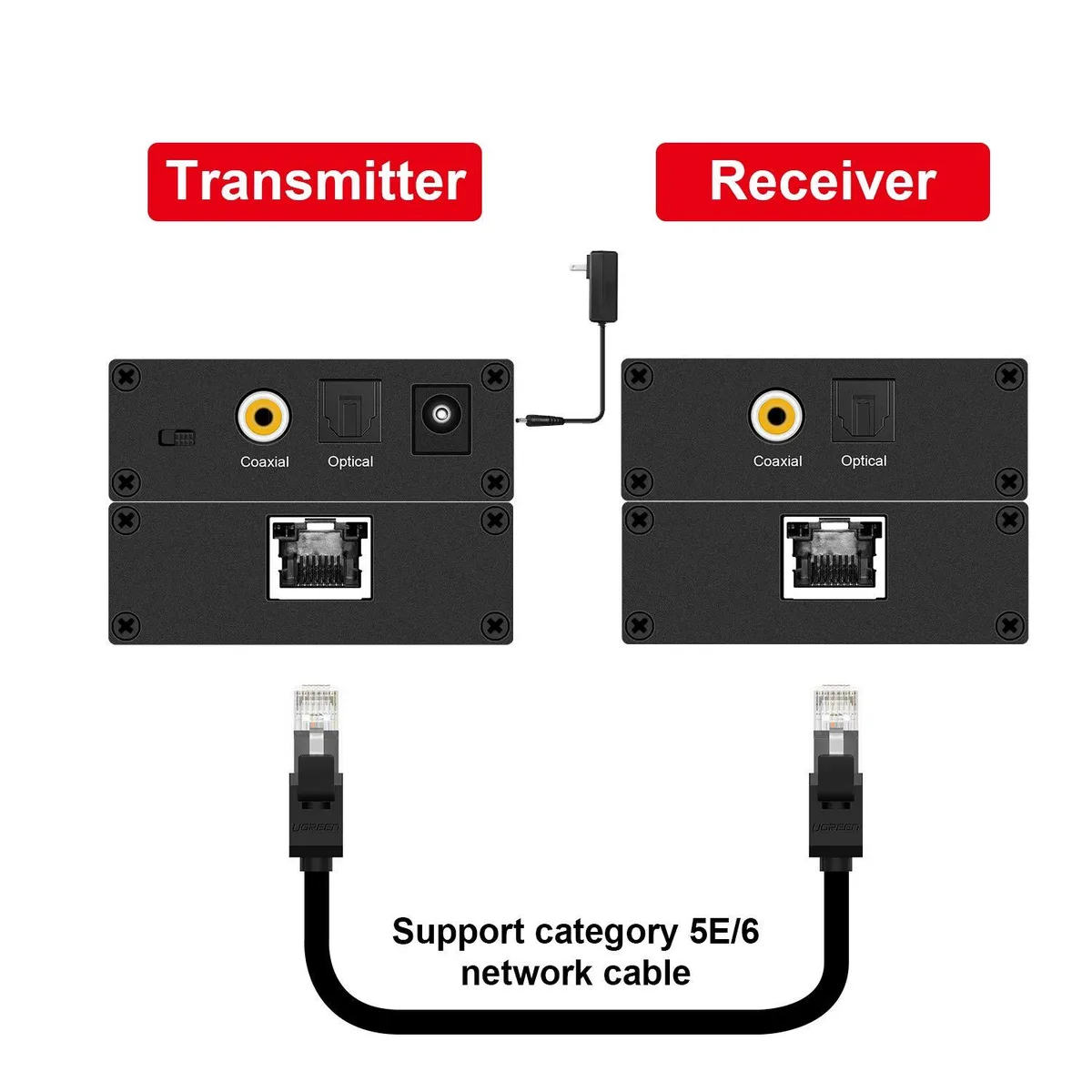

Only the transmitter side needs the included 12 V DC adapter; the receiver draws power over the Cat cable. Use solid copper 24 AWG or lower UTP cable with 100 ohm impedance at 1 MHz. Common issues arise from stranded patch cables or runs exceeding the 500-foot limit.

Highlights

  • Transmits digital audio up to 500 ft over Cat5e/6 cable
  • Supports Dolby Digital, DTS 5.1 and DTS-HD surround formats
  • Handles 96 kHz sampling rate at 12.8 Mb/s data rate
  • Powered from transmitter side only with included 12 V adapter
  • Built-in 2 kV/4 kV surge protection safeguards connected equipment

Specifications

No published specifications for this item yet.

Questions about this item

What does the 96 kHz sampling rate mean when I connect this extender to my DAC?

The extender passes stereo PCM up to 96 kHz and compressed 5.1 surround formats such as Dolby Digital and DTS without resampling, so your DAC receives the original stream.

How does the single Cat5e/6 link limit the audio formats I can send?

The 12.8 Mb/s bandwidth carries uncompressed two-channel LPCM at 96 kHz or compressed 5.1 bitstreams; it cannot transport uncompressed 7.1 or higher-rate formats.

What cable type and length will physically work with the transmitter and receiver units?

Solid-core 24 AWG or thicker Cat5e/6 UTP up to 150 m (500 ft) with 100 Ω impedance at 1 MHz is specified; stranded patch cords are not recommended.
