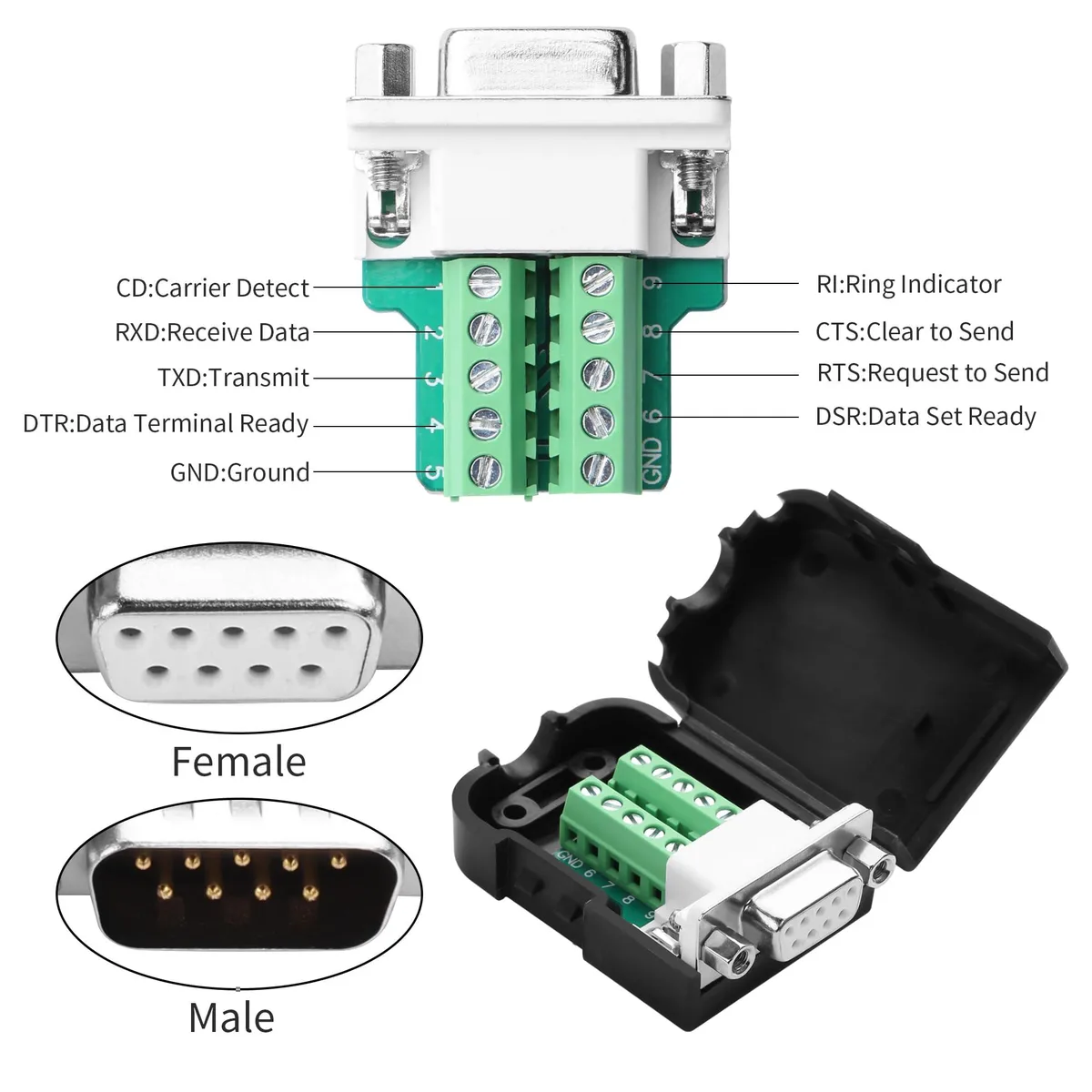

Pair of DB9 male and female solderless breakout boards with folding snap-on case and assembly screwdriver

Vszerda

Vszerda DB9 RS232 solderless breakout pair with case (A, Nuts)

SKU CH-A1S5-AS7Z2

A solderless DB9 RS-232 breakout pair with male and female connectors, pure copper plated joints, 128-type terminals and a snap-on case for serial device wiring

  • Solderless terminals let you wire DB9 links without a soldering iron
  • Pure copper plated joints give reliable signal contact and long service life
  • Folding snap-on case assembles tool-free and protects the connections
  • 5 mm cable opening fits standard serial leads cleanly
  • Male and female boards plus screws, bolts, nuts and a screwdriver included

DB9 RS232 solderless breakout pair

The set provides one male and one female DB9 connector that terminate serial cables without any soldering. Pure copper plated joints and copper contacts give reliable conductivity for industrial and legacy equipment links. A folding snap-on housing made from environmentally friendly PP engineering material snaps together tool-free using the supplied screws, long bolts or nuts and the included screwdriver. The cable entry accepts a 10.5mm opening.

Solderless 128-type terminal block

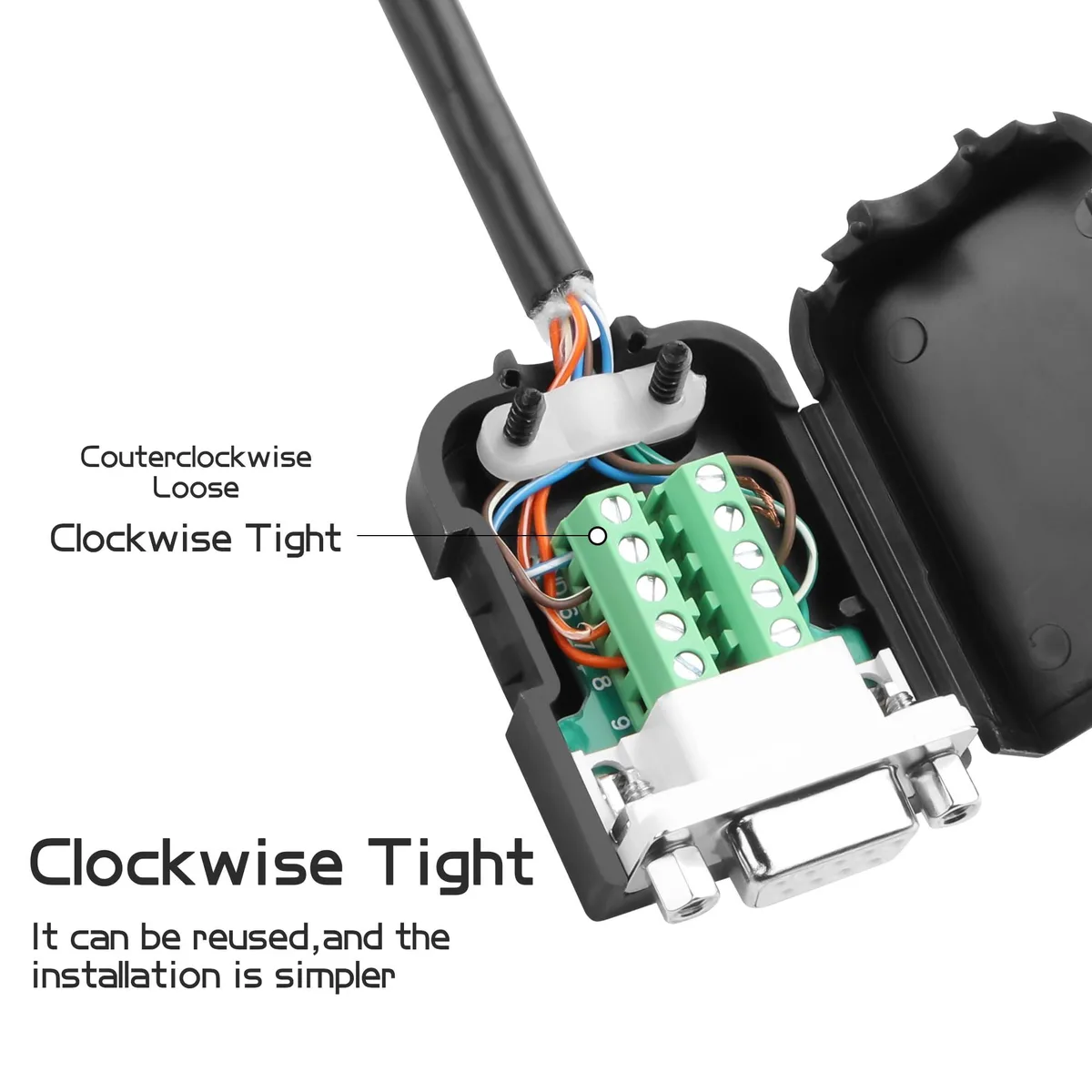

The decisive feature is the 128-type environmental protection copper terminal design that clamps each wire without a soldering iron. This makes the adapter suitable for field repairs and quick re-wiring where hot work is impractical or prohibited. Installers simply strip the conductor, insert it into the terminal and tighten the screw for a gas-tight connection.

Nine-pin serial links for legacy gear

The pair comfortably handles standard RS232 signalling between devices such as PLCs, PDAs, modems, set-top boxes, barcode scanners, tax control machines, digital cameras and industrial instruments. It runs out when the application demands more than nine conductors, higher voltage isolation or a different connector gender than the supplied male-plus-female combination.

Highlights

  • Solderless terminals let you wire DB9 links without a soldering iron
  • Pure copper plated joints give reliable signal contact and long service life
  • Folding snap-on case assembles tool-free and protects the connections
  • 5 mm cable opening fits standard serial leads cleanly
  • Male and female boards plus screws, bolts, nuts and a screwdriver included

Specifications

No published specifications for this item yet.

Questions about this item

What does the 232 rating mean when I wire this into a live system?

The 232 marking identifies the RS-232 serial standard, so the breakout carries the same voltage levels and pin-out used by PLCs, modems, barcode scanners and similar industrial gear.

Which interface standard does the DB9 connector follow, and what does that limit in practice?

The connector follows the RS-232 D-SUB 9-pin layout, limiting the link to the signal set and voltage swing defined by that standard rather than newer high-speed serial buses.

What clearance do I need for the cable opening when I mount the case?

The case cable port measures 10.5 mm (0.41 in), so allow at least that diameter for the cable to pass through the snap-on housing.
