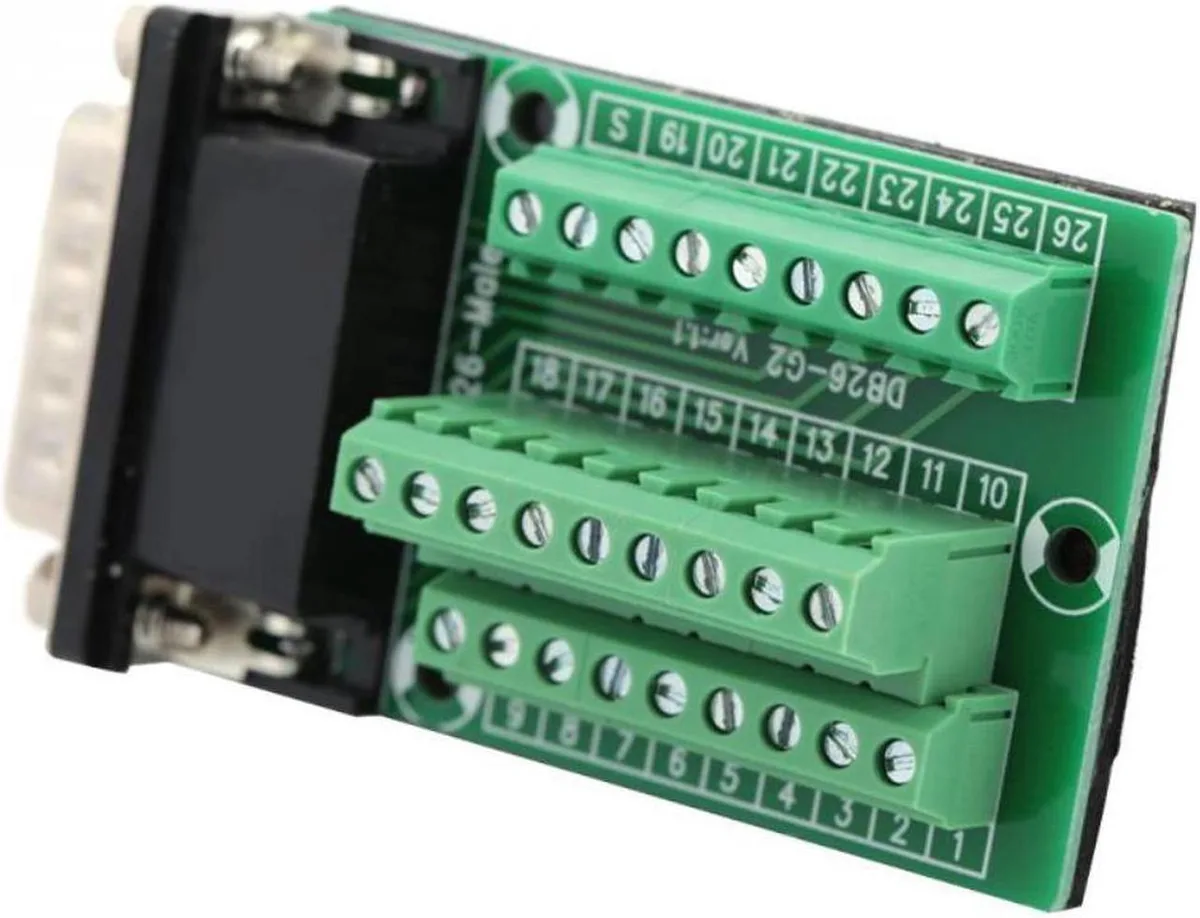

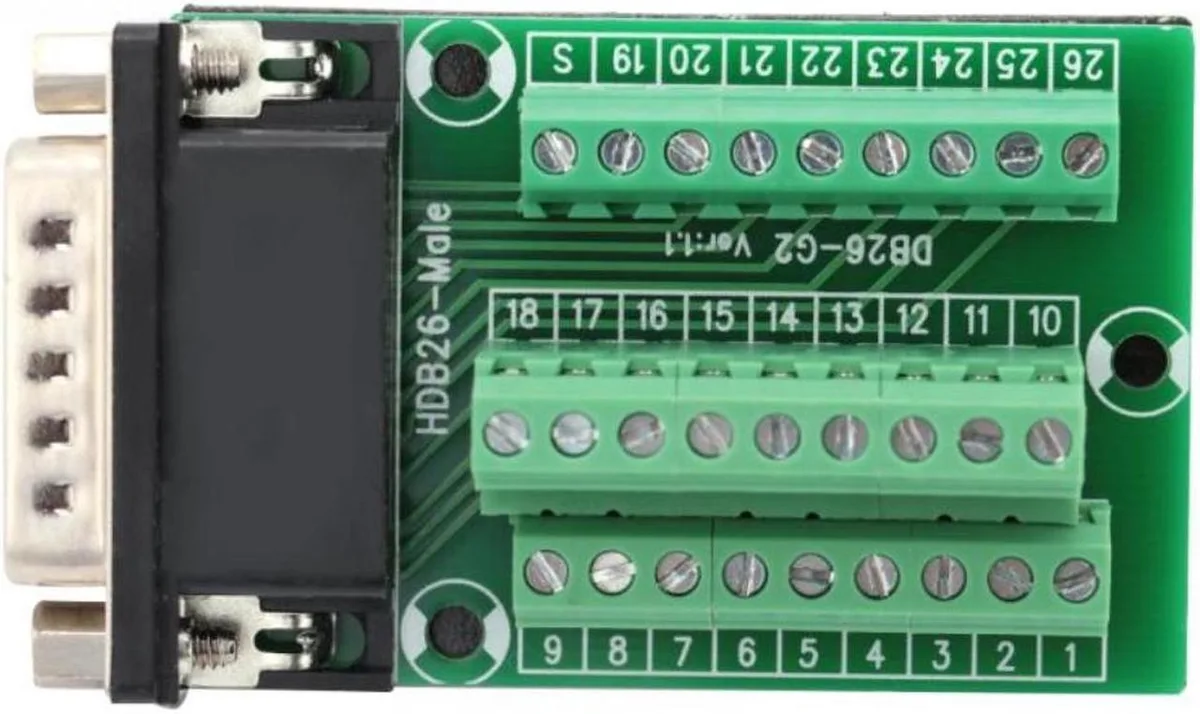

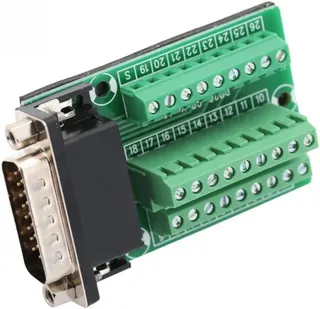

Green rectangular breakout board with male DB26 connector and labelled solder terminals

Vszerda

Vszerda DB26-G2-01 male breakout board audio adapter

SKU CH-ZWFN-JKGHW MPN DB26-G2-01

Male DB26 breakout board routes 26 signals to PCB terminals measuring 69 by 39.5 by 20.5 mm and weighing 35 g

  • Male DB26 breakout for easy PCB signal access
  • Clear pin markings simplify wiring and reduce errors
  • Reliable terminal contacts maintain stable signal connections
  • Compact 69 × 39.5 × 20.5 mm board fits tight enclosures
  • Lightweight 35 g design adds minimal mass to builds

Male DB26 Breakout Board

The Vszerda DB26-G2-01 is a male DB26 connector mounted on a compact breakout board with clearly marked PCB terminals. It provides a direct solder or screw-terminal interface for 26 signal lines, making it suited for engineers, technicians and hobbyists who need to tap or extend a DB26 cable in test rigs, industrial equipment or custom audio wiring.

Replaces Flying-Lead Splices

Instead of soldering individual wires to a bare DB26 plug, this board gives a labelled landing zone for each pin, reducing wiring errors and mechanical strain on the connector. The jump is worth it when you are building or repairing harnesses that must be reworked repeatedly, or when a project demands a secure, serviceable termination rather than a permanent pigtail.

Simple Through-Hole Mounting

The board measures 69 by 39.5 by 20.5 mm and weighs about 35 g, so it fits in tight enclosures and can be secured with standoffs or adhesive. Installation is straightforward: solder wires to the marked pads or use the terminal blocks if fitted. The main pitfall is misaligning the pin‑out — always verify continuity against the silkscreen labels before powering the circuit.

Highlights

  • Male DB26 breakout for easy PCB signal access
  • Clear pin markings simplify wiring and reduce errors
  • Reliable terminal contacts maintain stable signal connections
  • Compact 69 × 39.5 × 20.5 mm board fits tight enclosures
  • Lightweight 35 g design adds minimal mass to builds

Specifications

No published specifications for this item yet.

Questions about this item

What are the overall dimensions of the DB26-G2-01 breakout board?

The board measures 69 by 39.5 by 20.5 millimetres, or 2.7 by 1.6 by 0.8 inches.

How do I connect wires to the PCB terminals on this male adapter?

Strip each wire, insert it into the labelled terminal block, and tighten the screw; the clear pin markings show exactly which signal goes where.

Will the terminal screws need periodic re-tightening after installation?

Vibration can loosen screw terminals over time, so check and re-torque them during routine system maintenance.
