Green PCB DB25 male breakout board with screw terminals in black ABS case

Vszerda

Vszerda DB25 Breakout Board Solder-Free Male Adapter 25-pin data adapter

SKU CH-1SK6-PBD3V

A solder-free DB25 male breakout board with labelled screw terminals, an insulated ABS case and all-copper contacts for 26-16 AWG wire up to 10 A

  • Solder-free terminal block speeds up wiring

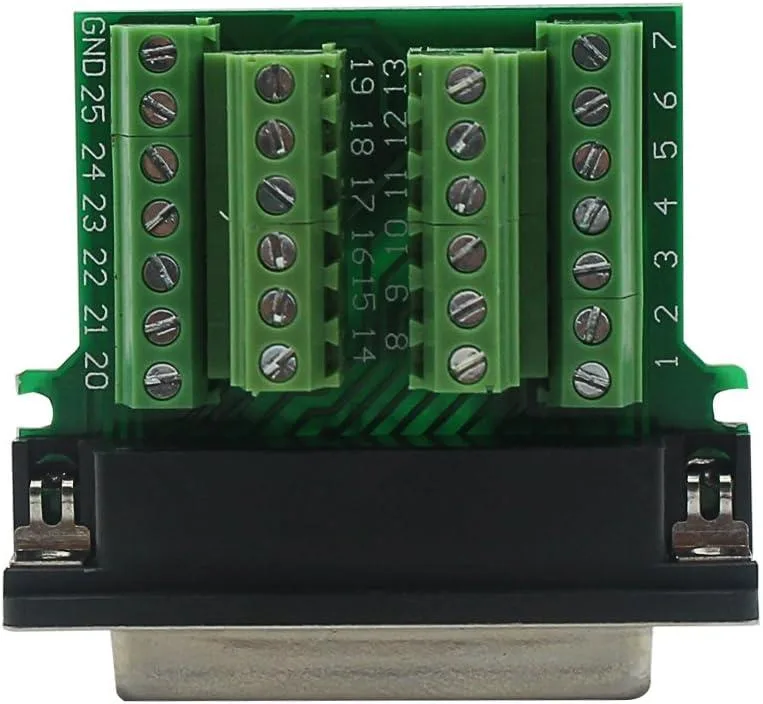

  • All 25 DB25 pins clearly labelled on PCB
  • Insulating ABS+PC case with anti-slip surface
  • Pure copper nickel-plated contacts rated 10 A
  • Accepts 26-16 AWG wires in 3 mm holes

Solder-Free DB25 Male Adapter

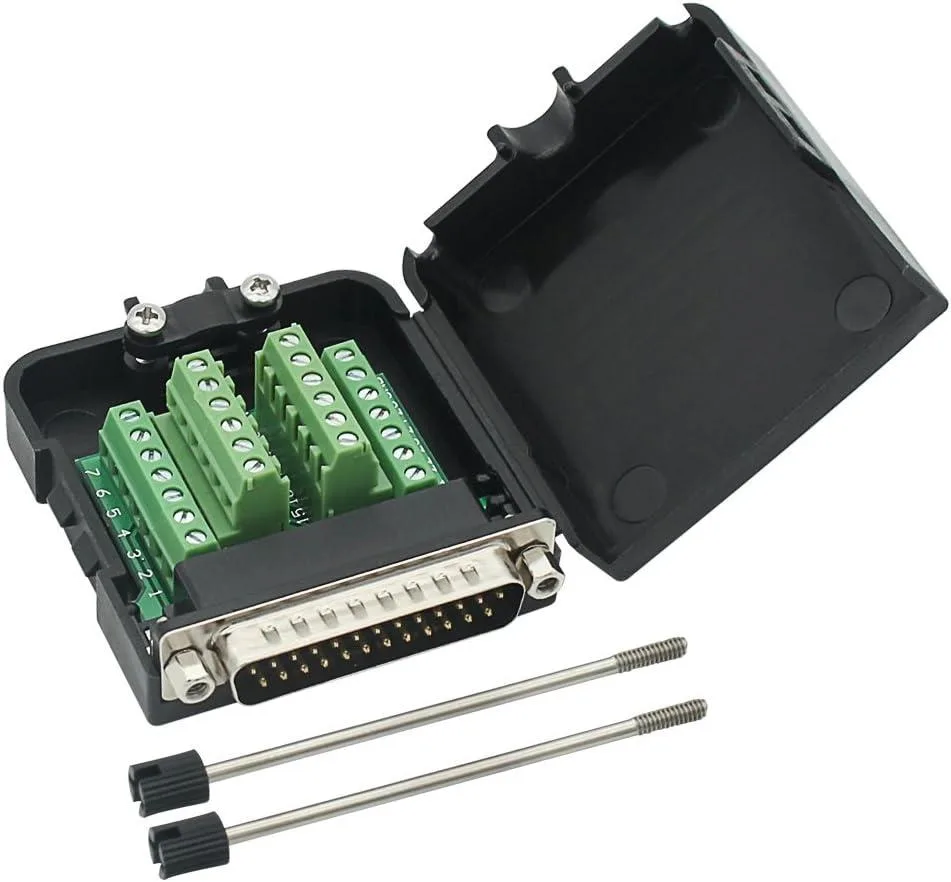

The Vszerda DB25 breakout board converts a 25-pin serial port to screw terminals without soldering. All signal lines are clearly labelled on the PCB. An ABS and PC insulation case with anti-slip texture encloses the board. Nickel-plated copper pins and a copper base resist oxidation.

Build Integration and Clearance

The adapter measures 59 x 55.5 x 23 mm and weighs 60 g. A 10 mm cable entry hole accepts wires from 26 to 16 AWG. Terminal holes are 3 mm in diameter on a 5 mm pitch. Each terminal accepts 0.2 N·m (1.7 lb-in) of torque for secure connections.

Suitability and Limitations

Ideal for engineers wiring industrial control gear or legacy serial equipment where soldering is impractical. The 10 A rating supports typical signal and low-power loads. Builders needing female DB25 gender, higher pin counts or sealed connectors for harsh environments should look elsewhere.

Highlights

  • Solder-free terminal block speeds up wiring
  • All 25 DB25 pins clearly labelled on PCB
  • Insulating ABS+PC case with anti-slip surface
  • Pure copper nickel-plated contacts rated 10 A
  • Accepts 26-16 AWG wires in 3 mm holes

Specifications

No published specifications for this item yet.

Questions about this item

How much current can the 25-pin adapter carry continuously?

The adapter is rated for 10 A continuous current through its nickel-plated copper contacts.

How hot does the adapter get when running at full load all day?

With all-copper contact bases and an ABS-plus-PC insulating case, heat is conducted away from the terminals and the housing stays cool to the touch during sustained 10 A operation.

What wire gauges can I clamp into the screw terminals without soldering?

The terminals accept solid or stranded wire from 26 AWG up to 16 AWG, secured by the captive screws.
