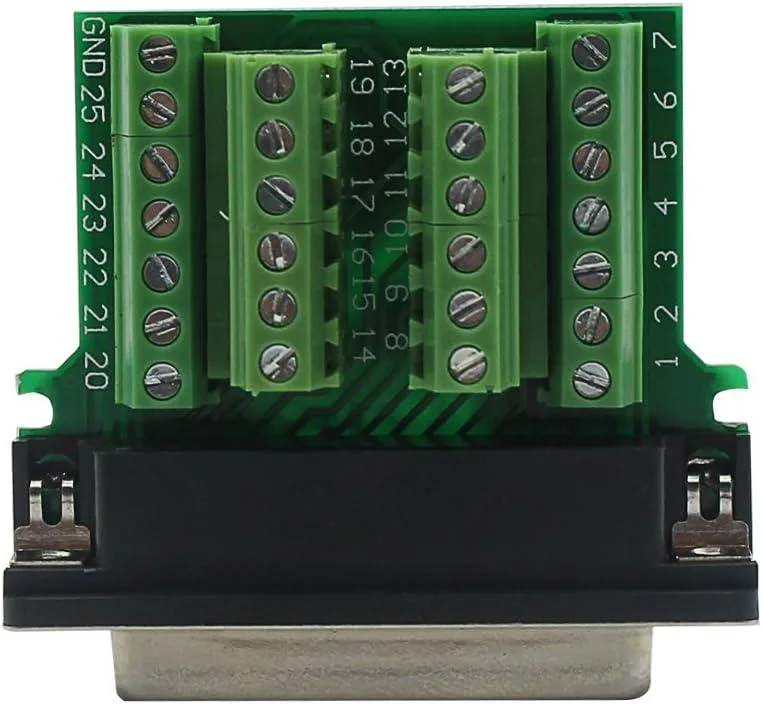

Green PCB DB25 female breakout board with screw terminals in black ABS case

Vszerda

Vszerda DB25 Breakout Board Female Adapter 25-pin to Terminal Connector with Case

SKU CH-ARHB-Y2JAX

Solder-free DB25 female adapter routes 25 signals to labelled screw terminals inside a 59 x 55.5 x 23 mm insulated case

  • Solder-free wiring speeds installation with terminal holes at 3 mm pitch
  • Labeled signal ports simplify debugging on 25-pin serial links
  • All-copper base and nickel-plated pins resist oxidation for reliable contact
  • Insulated ABS+PC case protects connections and prevents shorting
  • Compact 59 × 55.5 × 23 mm footprint fits tight enclosures

DB25 Female Breakout Board

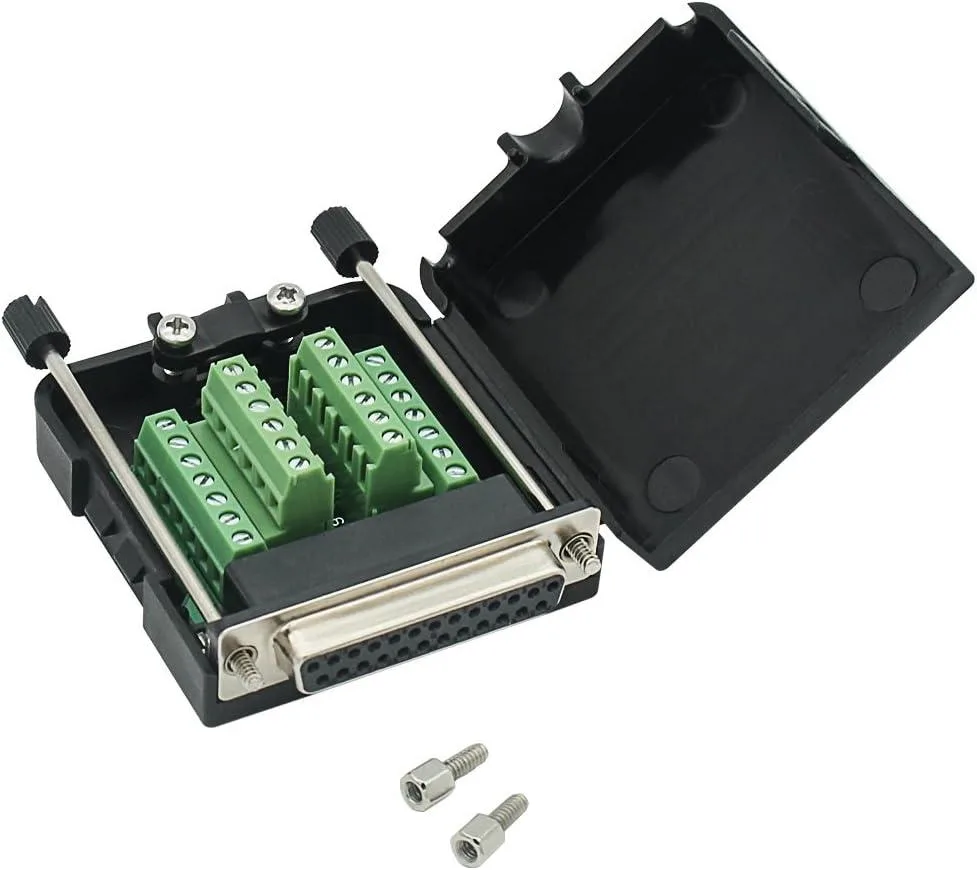

The Vszerda DB25 breakout board converts a 25-pin female port into labelled screw terminals without any soldering. It is built on a high-quality PCB with an all-copper base and nickel-plated brass contacts inside an ABS and PC insulating case. The adapter suits engineers and technicians who need quick, reliable access to serial or parallel signals in industrial or test environments.

25-pin to screw-terminal conversion

The single specification that decides fit is the DB25 female connector paired with 3 mm terminal holes on a 5 mm pitch accepting 26 to 16 AWG wire. The board measures 59 by 55.5 by 23 mm overall, with a 10 mm cable entry hole and long mounting bolts and nuts included. Rated current is 10 A and the recommended tightening torque is 0.2 N·m (1.7 lb-in).

For bench wiring, not high-density panels

This adapter suits anyone who wants a solder-free way to break out DB25 signals to screw terminals for prototyping, machinery interfaces or legacy equipment repair. It is not for builders who need a high-density right-angle header, a male DB25 version, or a shielded hood for EMI-sensitive runs.

Highlights

  • Solder-free wiring speeds installation with terminal holes at 3 mm pitch
  • Labeled signal ports simplify debugging on 25-pin serial links
  • All-copper base and nickel-plated pins resist oxidation for reliable contact
  • Insulated ABS+PC case protects connections and prevents shorting
  • Compact 59 × 55.5 × 23 mm footprint fits tight enclosures

Specifications

No published specifications for this item yet.

Questions about this item

What does the 25-pin female connector actually give me in a real machine?

It provides a solder-free DB25 female port with clearly labeled signal terminals so you can connect serial or industrial control cables directly to screw terminals without soldering.

What interface standard does the DB25 connector follow and what does that limit in practice?

The adapter uses a standard DB25 female interface; the 10 A current rating and 26–16 AWG wire range set the practical limits for signal and power connections.

What physical space and mounting hardware do I need to fit this breakout board?

The board measures 59 x 55.5 x 23 mm with a 10 mm cable entry hole and includes long bolts and nuts for panel or enclosure mounting.
