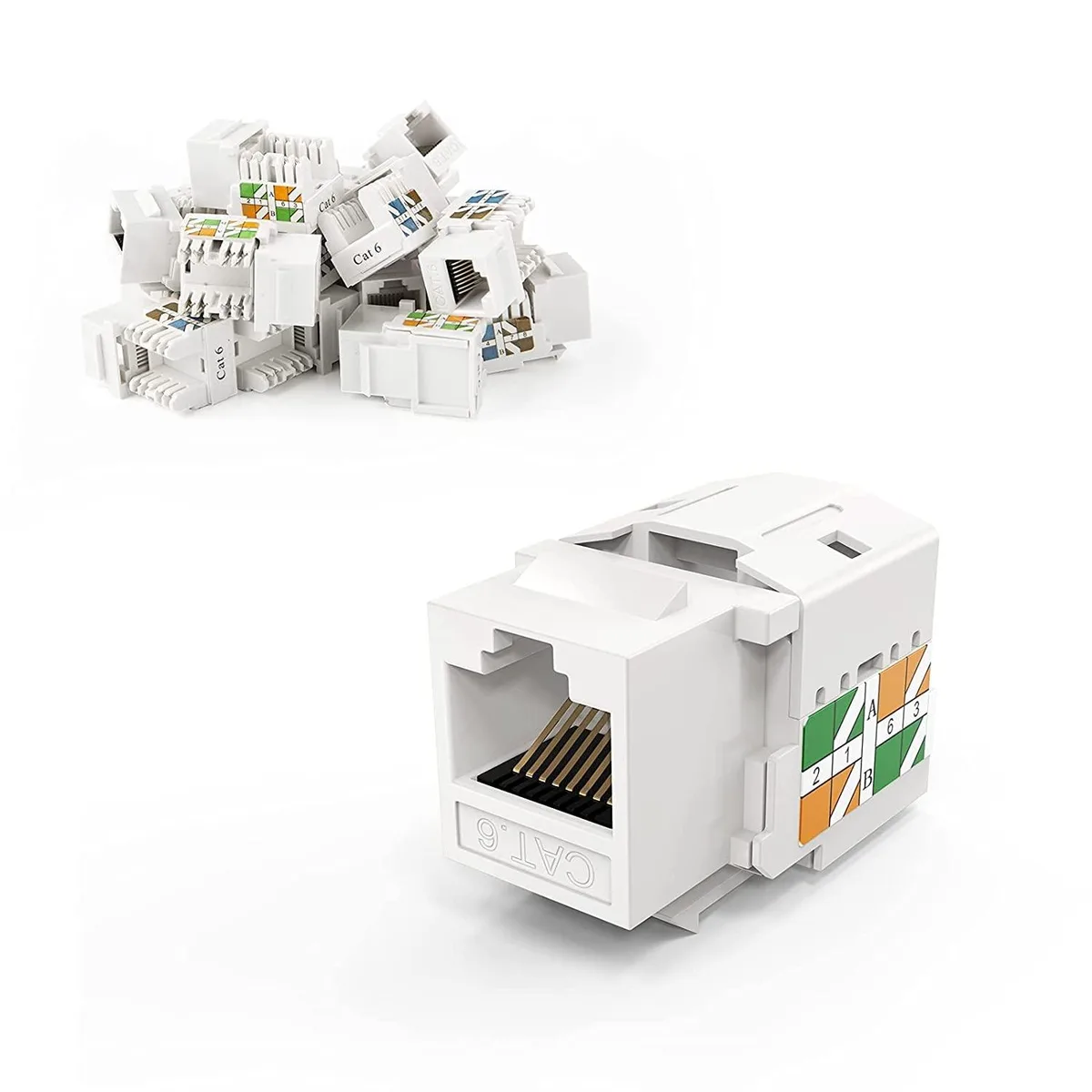

White Cat6 keystone jacks, 60 pack, RJ45 female connectors with gold contacts

Vszerda

Vszerda Cat6 Keystone Jack RJ45 60-Pack White

SKU CH-PQ50-83RQ5

A 60-pack of Cat6 keystone jacks with colour-coded 110 blocks for T568A and T568B wiring, accepting 23 or 24 AWG solid cables and supporting up to 1000 Mbps transmission

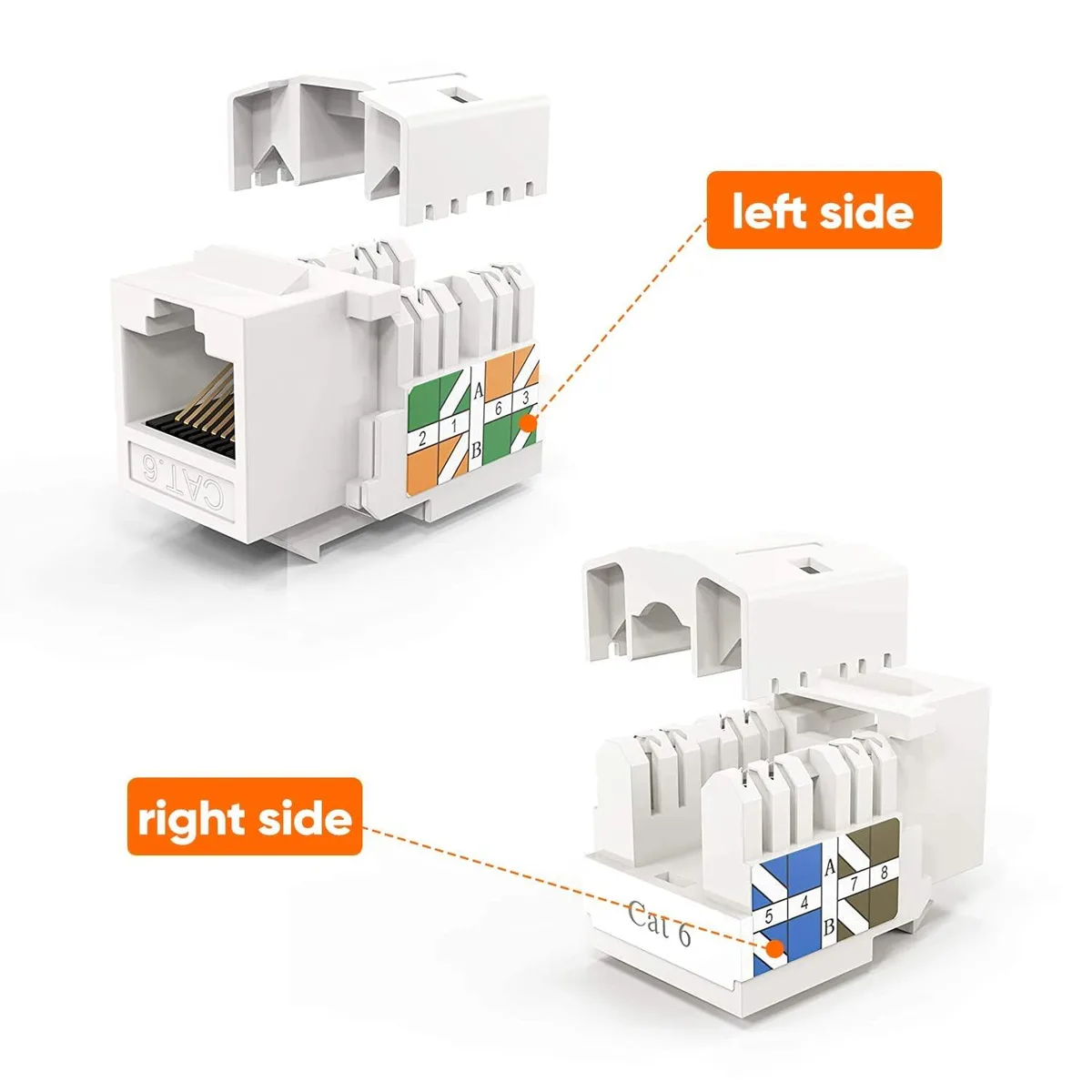

  • Supports T568A and T568B wiring with colour-coded 110 blocks
  • 50 micron gold-plated contacts for reliable signal transmission
  • 1000 Mbps data speed over solid 23 or 24 AWG cable
  • 60 keystone modules snap into standard wall plates and surface boxes
  • Tool-free punch-down with dual IDC covers for quick installation

60-Pack Cat6 Keystone Jacks

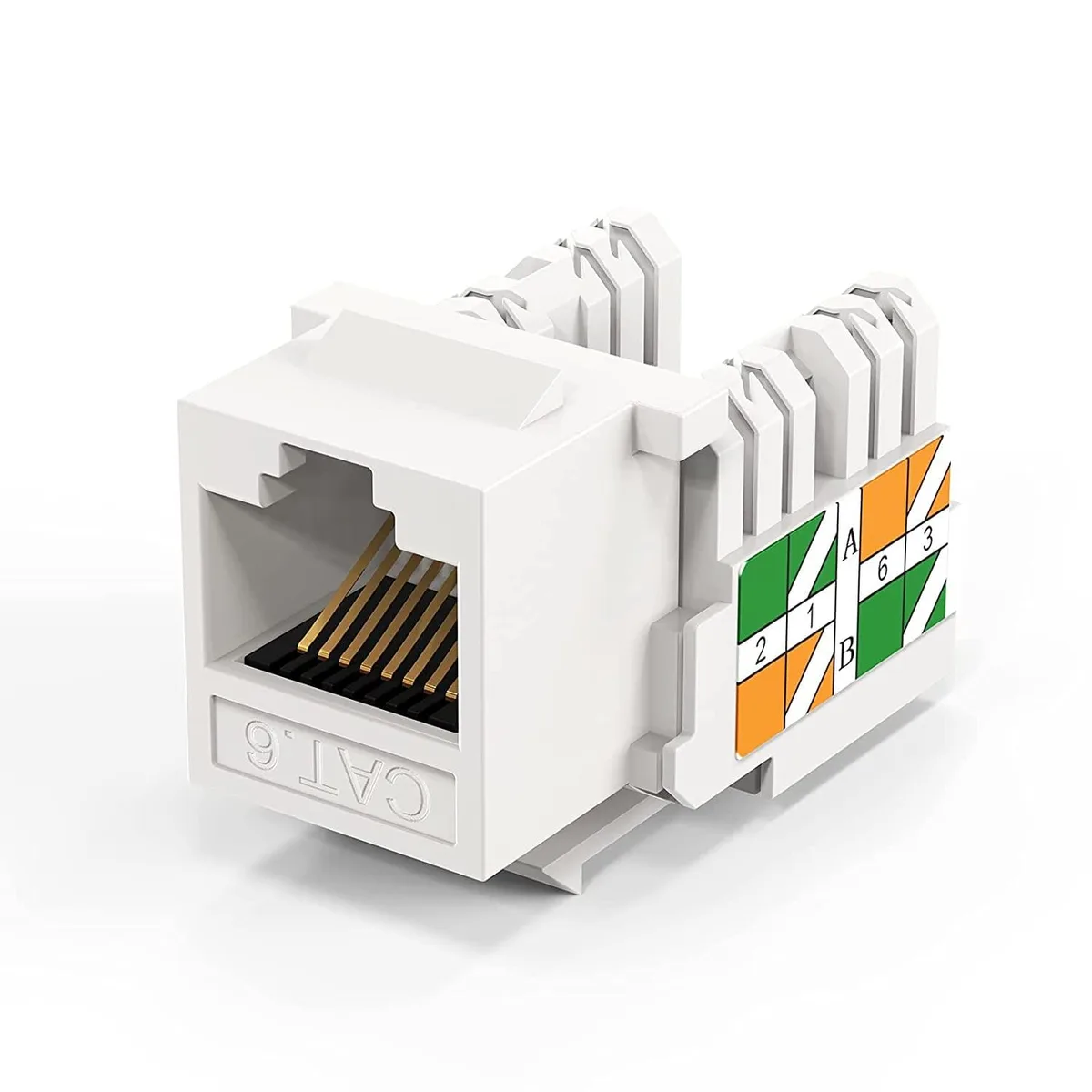

This pack supplies sixty white Cat6 keystone jack modules terminated with 110 or Krone IDC blocks. Each jack accepts 23 or 24 AWG solid Ethernet cable and is colour-coded for T568A and T568B wiring schemes. Contacts are plated with 50 micron gold and the product carries UL listing, TIA/EIA 568-C.2 verification and RoHS compliance. The jacks snap into standard keystone ports on patch panels, surface-mount boxes and faceplates.

Suited for structured cabling installs

Installers wiring homes, offices, surveillance systems or engineering projects will find the bulk quantity convenient for multi-room or multi-floor deployments. Backward compatibility with Cat5 and Cat5e solid or stranded cables allows integration into existing plant. Builders needing a 24-port 1U patch panel, a 1U APC or a six- or eight-gang wall-plate insert should look elsewhere because the modules do not fit those specific formats.

1000 Mbps transmission rating

The single specification that decides fit is the rated transmission speed of up to 1000 Mbps over Cat6 cable. Actual throughput depends on cable quality and run length, so verify that the installed link meets the required performance envelope before committing to this part.

Highlights

  • Supports T568A and T568B wiring with colour-coded 110 blocks
  • 50 micron gold-plated contacts for reliable signal transmission
  • 1000 Mbps data speed over solid 23 or 24 AWG cable
  • 60 keystone modules snap into standard wall plates and surface boxes
  • Tool-free punch-down with dual IDC covers for quick installation

Specifications

No published specifications for this item yet.

Questions about this item

How do I punch down the wires on the 110 blocks of this keystone jack?

Strip the jacket, separate the eight conductors, match each wire to the colour-coded T568A or T568B label on the 110 IDC blocks, press them fully home with a 110 punch-down tool, trim the excess, then snap the cover on.

What cable gauges can I use with these jacks and will I need to re-terminate later?

The IDC blocks accept 23 or 24 AWG solid conductors; re-termination is only needed if a wire breaks or the jack is removed, because the 50 micron gold contacts are rated for the life of the installation.

At what speed does the link stop scaling when I push long runs through these jacks?

The jack is verified to 1000 Mbps; beyond that the cable length and quality become the limiting factor, not the connector itself.
