Vszerda
Vszerda ADP6ST0 SATA 1-to-5 multiplier card
Connects one SATA port to five drives using a JMicron JMB575 controller with 6.0 Gbps support and hot-swap capability
- Colordefault
- Conductorcopper
- Expands one SATA port to five drives via PM support
- JMicron JMB575 controller enables 6.0 Gbps SATA III performance
- Compliant with Serial ATA Port Multiplier and Selector specs
- Hot-swap and staggered spin-up support protect drives during changes
- Includes USB DC power cable and mounting screws for installation
SATA 1-to-5 port multiplier

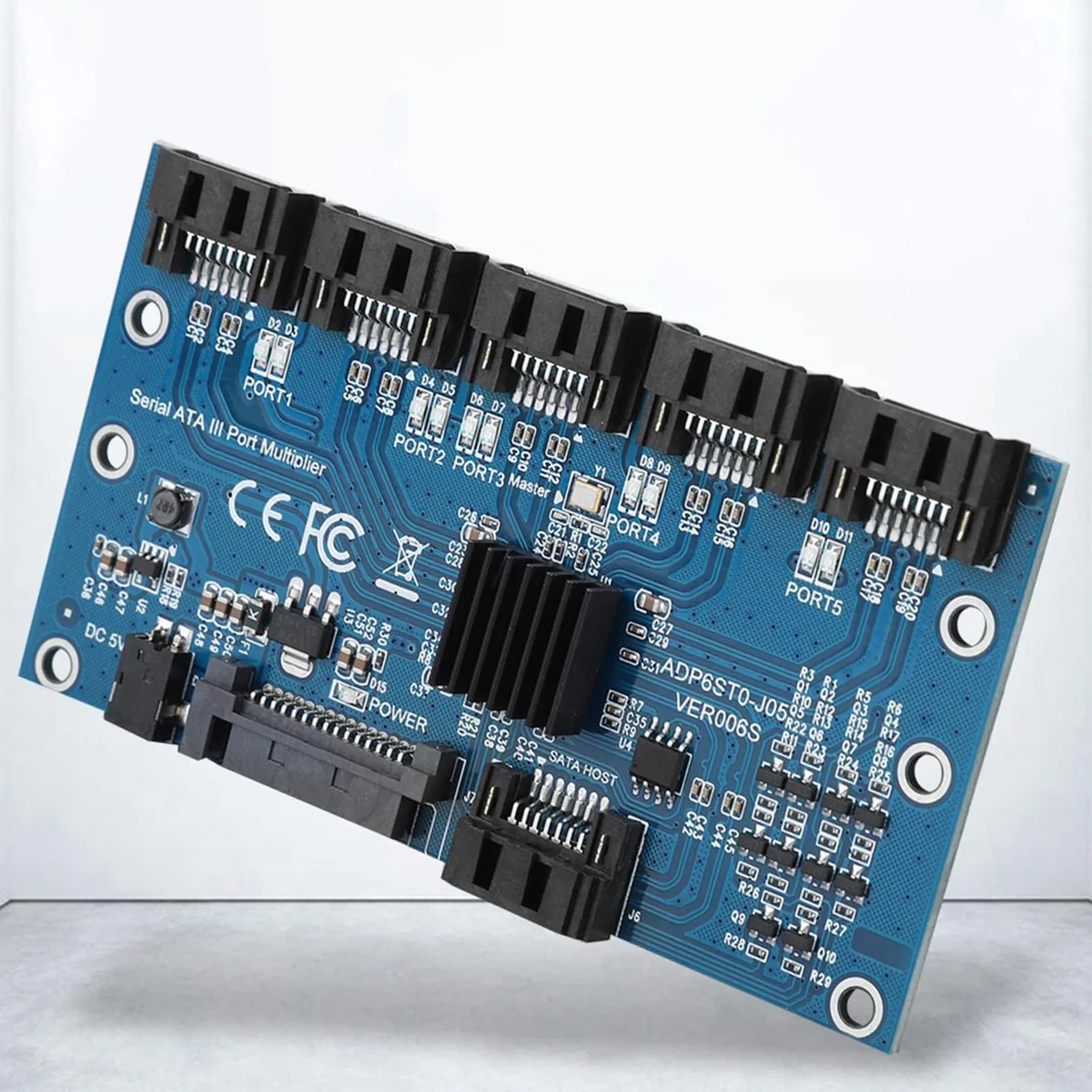

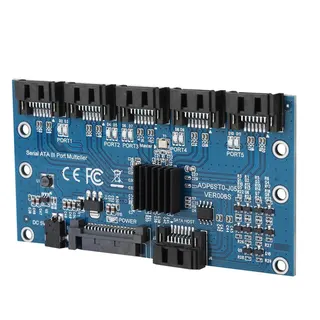

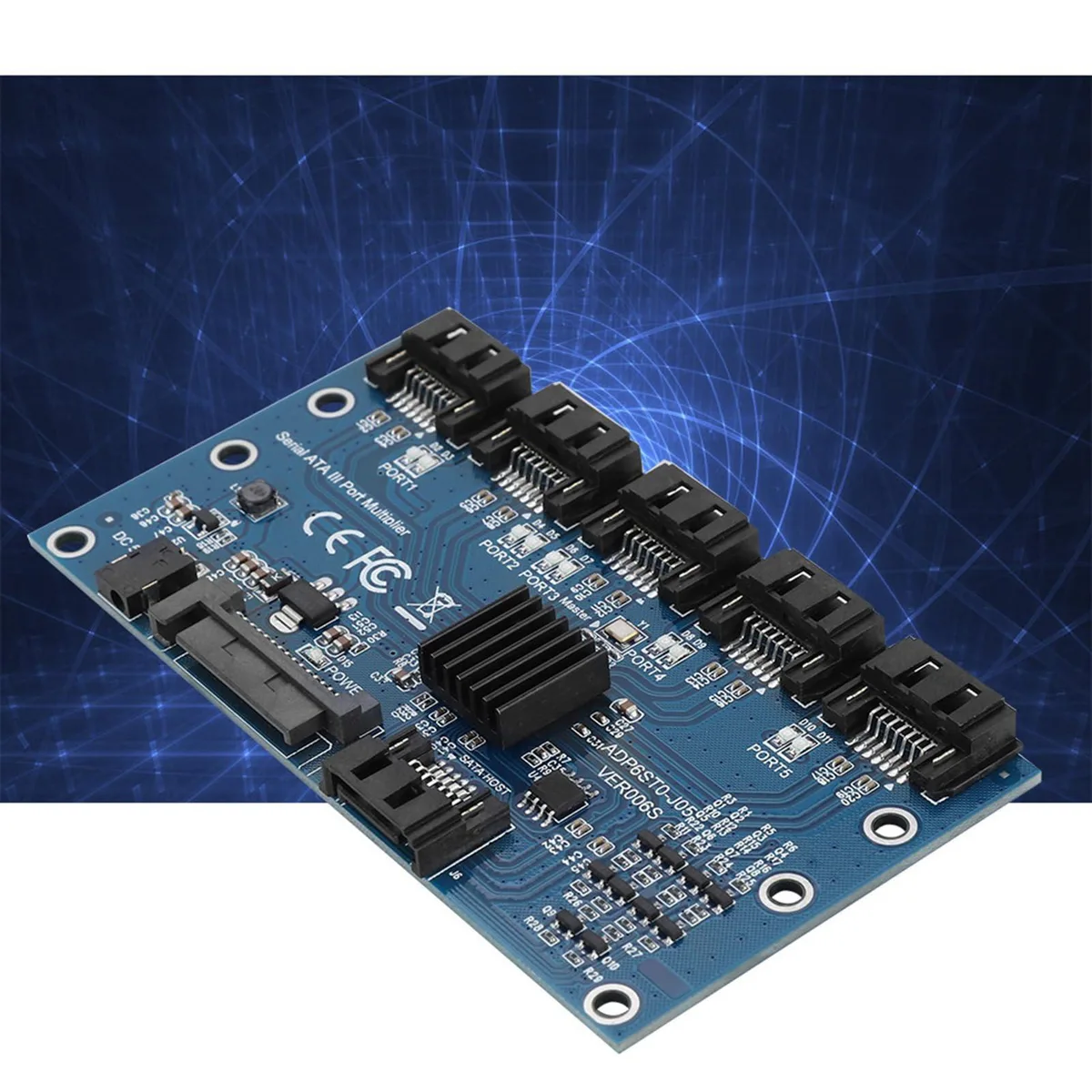

The Vszerda ADP6ST0 expands a single SATA 3.0 host port into five device ports using a JMicron JMB575 controller. It operates at 6.0 Gbps and supports port multiplier, port selector and PHY electrical specifications. The card includes a USB DC power cable, a connection cable and mounting screws.
Motherboards with multiplier support
This card suits builders whose motherboard or host controller explicitly supports SATA port multiplier function; without that support only one drive will be visible. It is not for systems that lack multiplier capability or for users who need to connect drives through a different host interface.
JMicron JMB575 controller
The onboard JMB575 chip provides the multiplier logic and handles 6.0 Gbps signalling with automatic impedance calibration and spread-spectrum clocking. It also enables hot-swap, staggered spin-up and low-power modes when the host platform allows them.
Highlights
- Expands one SATA port to five drives via PM support
- JMicron JMB575 controller enables 6.0 Gbps SATA III performance
- Compliant with Serial ATA Port Multiplier and Selector specs
- Hot-swap and staggered spin-up support protect drives during changes
- Includes USB DC power cable and mounting screws for installation
Specifications
| Brand | Vszerda |
|---|---|
| Model | ASHATA4hie1km370 |
| Color | default |
| Conductor | copper |
Questions about this item
How many drives can the JMB575 multiplier present to the host at once?
The JMB575 port multiplier can present up to 5 drives to a host port that supports SATA multiplier function.
What power input does the card need for all-day operation?
A 2.5 V DC power cable is included and must be connected to the card for stable operation.
Which host-side feature must my motherboard or HBA already provide?
The host port must support the SATA Port Multiplier function; without it only a single drive will be detected.
