Vszerda 8-port SATA 3.0 PCIe card with low-profile bracket only

Vszerda

Vszerda 8 Port SATA 3.0 PCIe Card 6 Cables Low Profile Bracket Only Card

SKU CH-HPJA-ND8DC

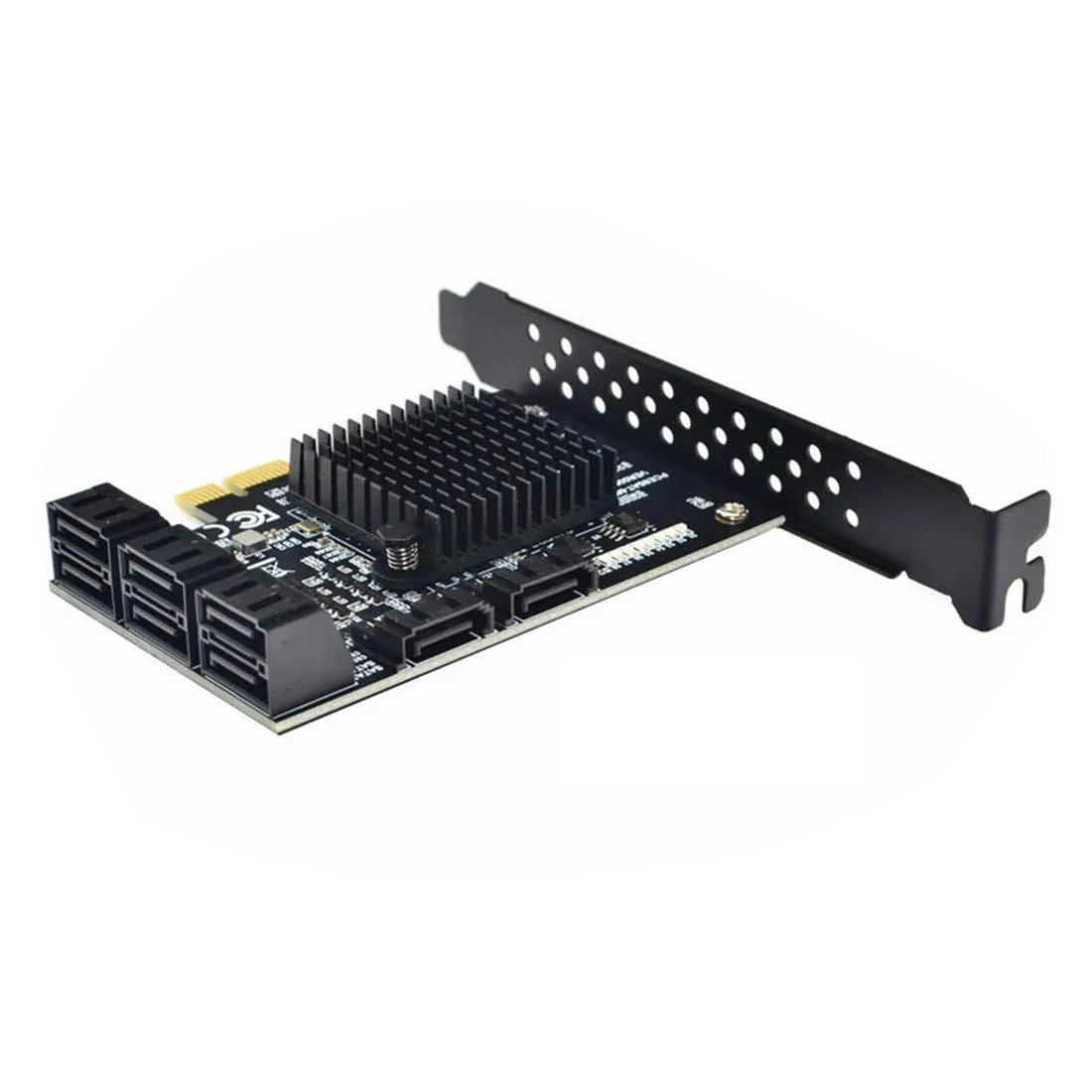

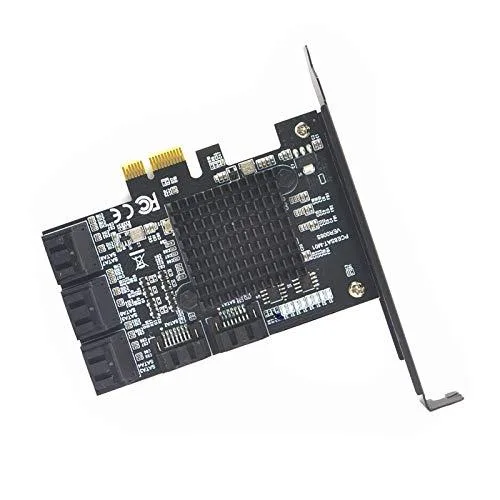

Adds eight SATA 3.0 ports via a PCIe x1 slot using the Marvell 88SE9215 chip with a heatsink and includes six cables

  • ColorOnly Card
  • Conductorcopper
  • 8 ports add storage capacity via SATA 3.0
  • 6 Gbps peak throughput on PCIe 2.0 x1
  • 6 cables included for immediate drive connection
  • Low-profile bracket fits compact chassis
  • Marvell 88SE9215 chip with heat sink runs cool

Eight-port SATA 3.0 expansion card

This Vszerda adapter adds eight SATA 3.0 ports through a single PCI-Express x1 slot. It uses the Marvell 88SE9215 chip with a heatsink and includes six SATA cables. The card is compliant with SATA 3.0, 2.0 and 1.0 as well as PCI-Express 2.0 and 1.0.

Builders adding multiple hard drives or SSDs

The card suits users who need extra SATA connections for storage drives on Windows 10, 8, 7, Vista, XP, 2003, 2008 or Linux. It is not for systems without a free PCI-Express slot, for boot drives not already installed in AHCI mode, or for configurations that require RAID functionality.

Marvell 88SE9215 controller with AHCI support

The controller provides 6.0 Gbps, 3.0 Gbps and 1.5 Gbps link speeds and supports NCQ and port-multiplier switching. It operates in AHCI 1.0 or IDE mode and enables hot-swap operation. A low-profile bracket is included for small-form-factor cases.

Highlights

  • 8 ports add storage capacity via SATA 3.0
  • 6 Gbps peak throughput on PCIe 2.0 x1
  • 6 cables included for immediate drive connection
  • Low-profile bracket fits compact chassis
  • Marvell 88SE9215 chip with heat sink runs cool

Specifications

BrandVszerda
ColorOnly Card
Conductorcopper

Questions about this item

How do I install the Vszerda 8-port SATA 3.0 PCIe card and what BIOS step is often missed?

Insert the card into any PCI-Express x1 slot (x2, x4, x8, x16 also work), connect drives with the supplied cables, then enter the motherboard BIOS and set the adapter's SATA controller to AHCI mode before selecting the boot drive; skipping the AHCI setting is the common error.

What maintenance or replacement will the Vszerda 8-port SATA 3.0 card need over time?

The Marvell 88SE9215 controller has an integrated heat sink, so no fan maintenance is required; only the six included SATA cables may need replacement if connectors wear or cables are damaged.

What throughput limit appears first on the Vszerda 8-port SATA 3.0 card during sustained transfers?

The PCI-Express 2.0 x1 host link caps aggregate bandwidth at roughly 5 Gbps, so combined drive traffic hits the bus ceiling before the individual SATA 3.0 6.0 Gbps ports saturate.
