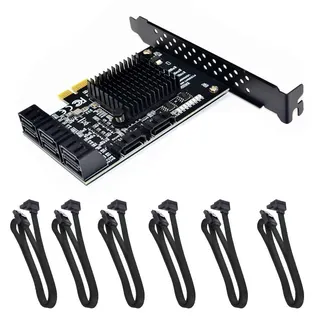

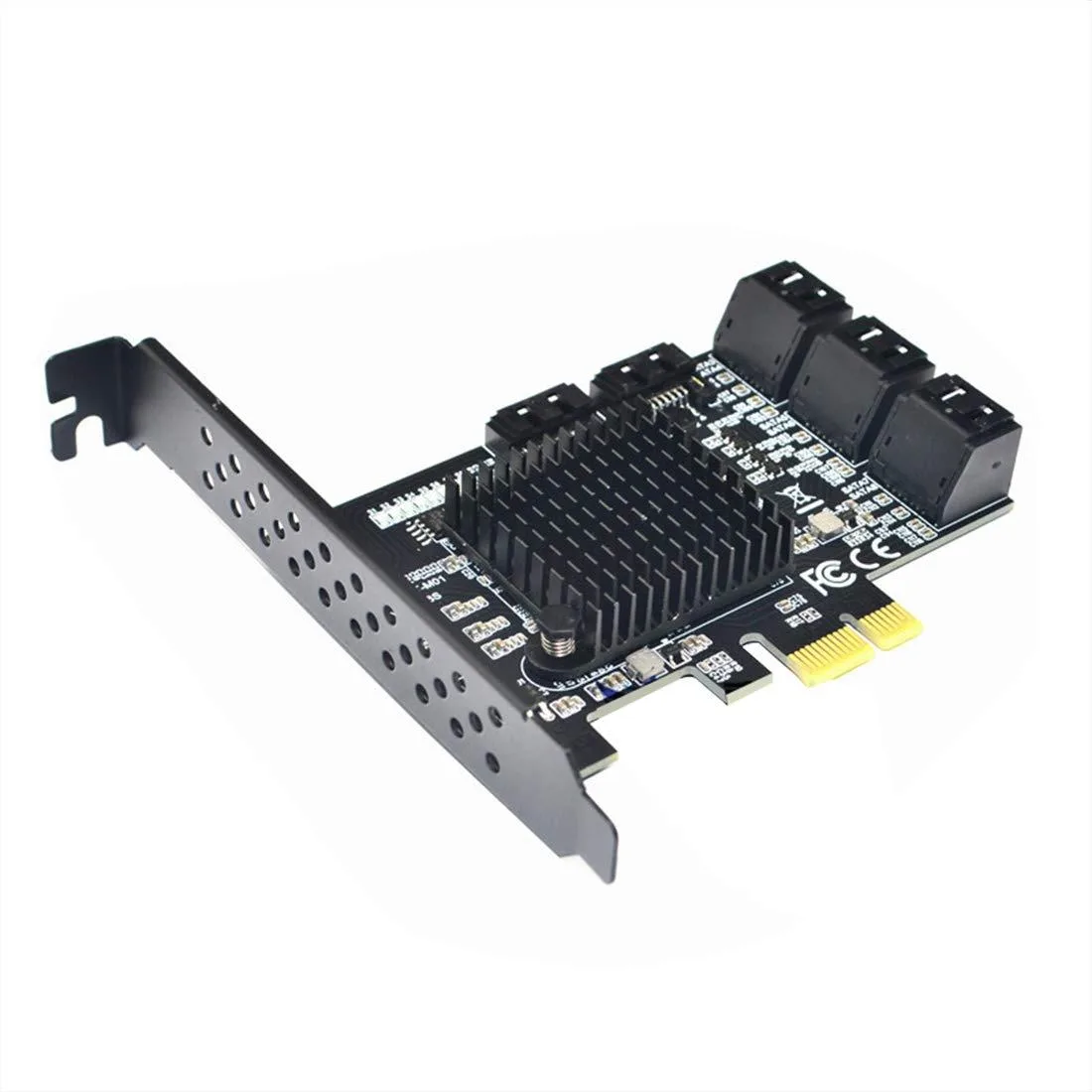

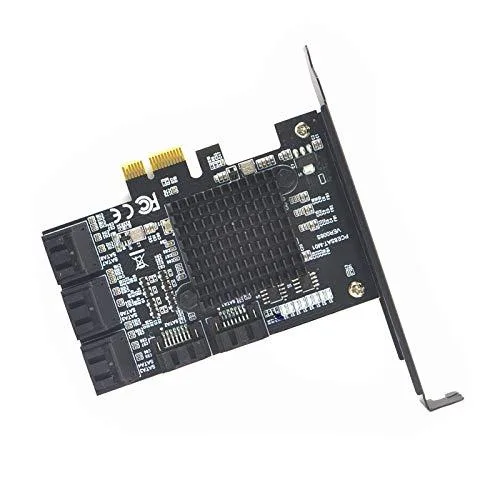

Vszerda 8-port SATA PCIe card with six black 90-degree cables and heatsink

Vszerda

Vszerda 8 Port SATA 3.0 PCIe Card 6 Cables 90 ° Black Low Profile Bracket Heatsink Marvell 88SE9215

SKU CH-2BD2-NKWYV

Adds eight SATA 3.0 ports via a PCIe x1 slot using a Marvell 88SE9215 controller with six 90 ° cables and a low-profile bracket

  • Color6*Black 90 °Cable
  • Conductorcopper
  • 8 ports add SATA 3.0 storage via PCIe x1 slot
  • 6 Gbps throughput with Marvell 88SE9215 controller
  • Six 90-degree cables fit tight chassis builds
  • Low-profile bracket included for slim cases
  • Works with Windows 10 32 and 64 bit systems

Expansion card for eight SATA drives

The Vszerda adapter adds eight SATA 3.0 ports through a single PCI-Express x1 slot using a Marvell 88SE9215 controller. It targets builders who need more drive connections than the motherboard provides and who run Windows 10, 8, 7, Vista, XP, 2003, 2008 or Linux.

Marvell 88SE9215 controller with 6 Gbps SATA

The chipset delivers native 6.0 Gbps, 3.0 Gbps and 1.5 Gbps signalling and supports AHCI 1.0, IDE mode, NCQ and port-multiplier FIS switching. Six right-angle cables and a low-profile bracket with a heatsink are included in the box.

Fits any PCI-Express x1, x2, x4, x8 or x16 slot

The card occupies one expansion slot and draws power from the bus, leaving other slots free for graphics or networking cards. It is not for builders who need more than eight ports or who require boot support on motherboards that cannot disable their onboard SATA controllers.

Highlights

  • 8 ports add SATA 3.0 storage via PCIe x1 slot
  • 6 Gbps throughput with Marvell 88SE9215 controller
  • Six 90-degree cables fit tight chassis builds
  • Low-profile bracket included for slim cases
  • Works with Windows 10 32 and 64 bit systems

Specifications

BrandVszerda
Color6*Black 90 °Cable
Conductorcopper

Questions about this item

What does the 6.0 Gbps SATA 3.0 speed mean once the card is installed in my PC?

Each connected drive can transfer at up to 6.0 Gbps, matching the SATA 3.0 specification, and the card falls back to 3.0 Gbps or 1.5 Gbps for older drives.

How does the PCI-Express v2.0 x1 interface limit real-world throughput?

The x1 lane caps total bandwidth at the PCIe 2.0 rate, so combined drive traffic cannot exceed that link speed even though each SATA port supports 6.0 Gbps.

What physical space and bracket does the card need to fit in my case?

It occupies a single PCI-Express x1 slot and includes a low-profile bracket for slim chassis, with six 90 ° cables that route close to the board.
