Vszerda 500W Power Adapter for DELL Optiplex 3050 5060 7060 7070 5090 3650 3670 3671 3260 3681 MT XPS 8940

500W Replacement for DELL Optiplex and XPS

This Vszerda power adapter delivers a maximum output of 500W and accepts AC input from 100-240V at 50-60Hz. It is built as a direct replacement for listed DELL Optiplex MT models including 3050, 5060, 7060, 7070, 5090, 3650, 3670, 3671, 3260, 3681, 3080, 3890 and XPS 8940. Compatible part numbers include 4FWF7, 04FWF7, 5K7J8 and Y7R0X. Builders should verify the physical connector layout against their existing unit before purchase.

Sustained 500W delivery across multi-rail loads

The unit is rated for a continuous maximum output of 500W rather than a short-term peak. It supplies power through PCI-E 6-pin, PCI-E 8-pin (6+2) and dual CPU 4-pin connectors, distributing the load across graphics and processor rails. This arrangement supports stable operation during extended workloads on supported DELL workstations. The 7A input rating at full voltage range ensures consistent draw from the mains supply.

Proprietary chassis fit

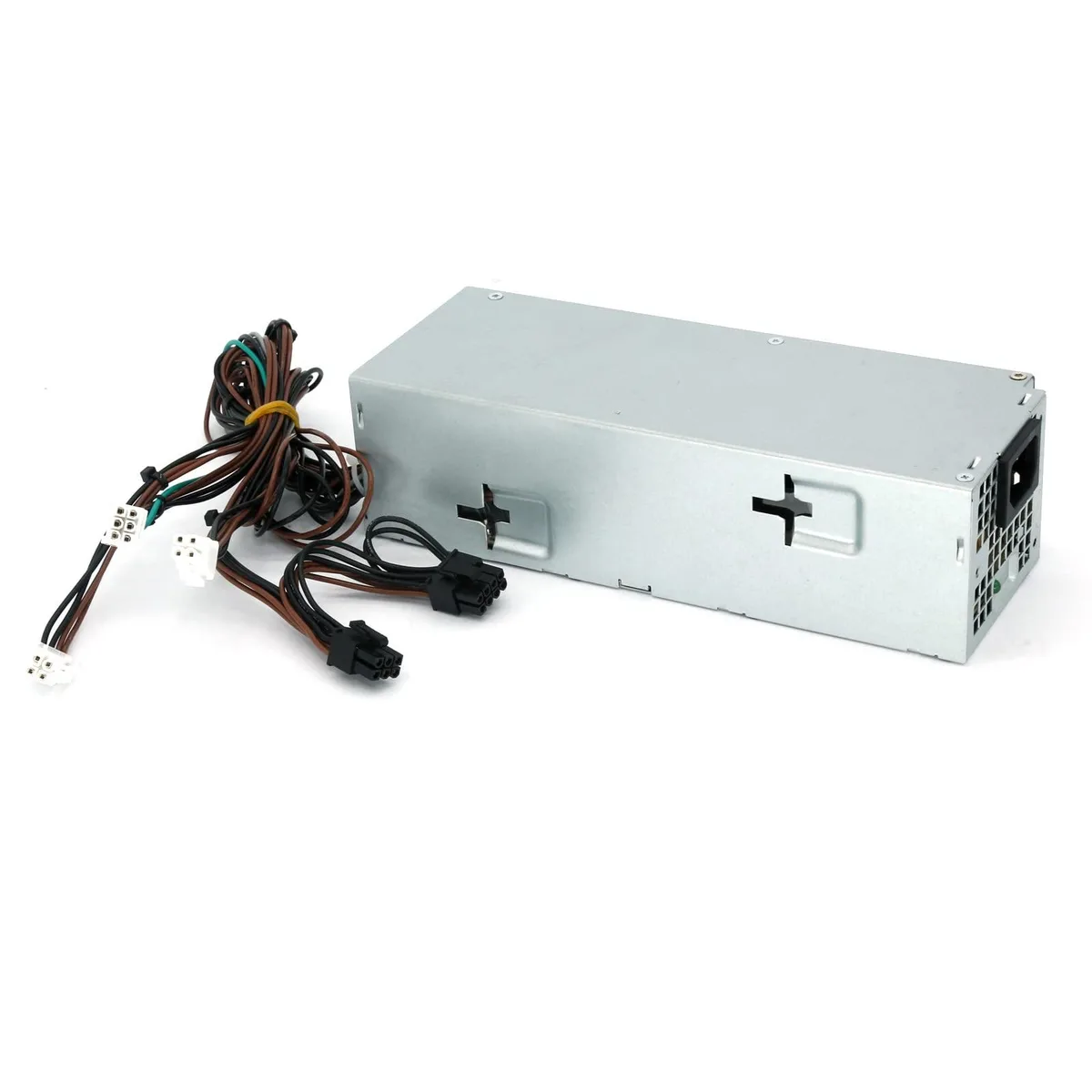

The adapter uses the DELL-specific form factor and mounting points required by the listed Optiplex and XPS chassis. Its connector set includes two CPU 4-pin plugs, one PCI-E 6-pin and one PCI-E 8-pin (6+2) for discrete graphics cards. Because DELL configurations vary even within the same model family, the supplier advises comparing photographs and pin arrangements before installation. Systems needing additional PCI-E cables or non-standard mainboard headers are not supported by this unit.
