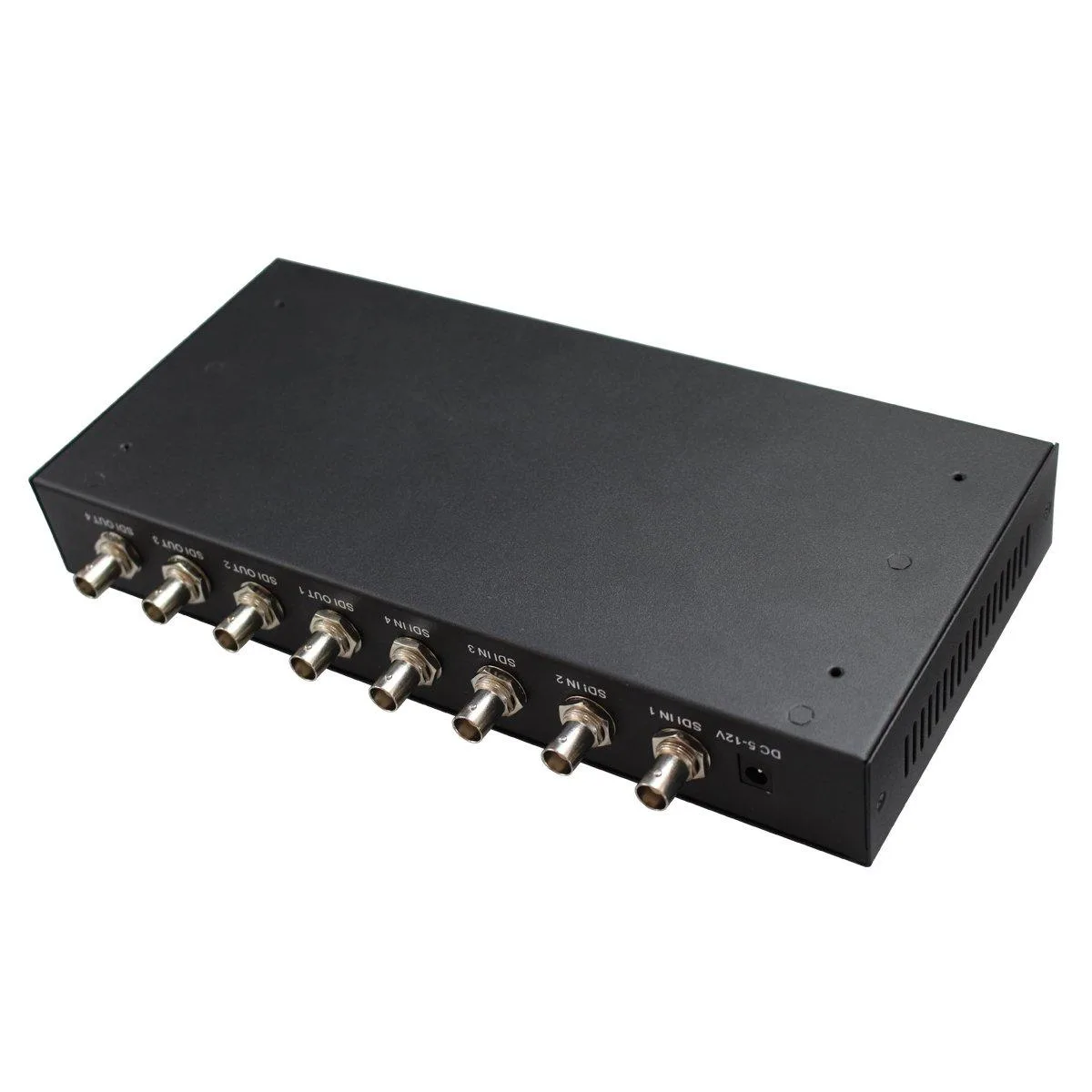

Black metal box with four BNC inputs and four BNC outputs on the rear panel

Vszerda

Vszerda 4x4 SDI Matrix Switcher 4 In 4 Out BNC 1.157kg

SKU CH-1D8H-GRX71

A 4×4 SDI matrix switcher routes four BNC inputs to four independent BNC outputs with SMPTE 424M, 292M and 259M-C compatibility

  • TypeS-Video
  • Changer TypeCoaxial
  • ColorBlack
  • Ports4
  • Input Connector4
  • Weight1.157 kilograms
  • Routes any of four SDI sources to four independent displays via BNC matrix switching
  • Supports SD-SDI, HD-SDI and 3G-SDI formats for broadcast-grade signal compatibility
  • Compliant with SMPTE 259M-C, 292M and 424M standards ensuring professional interoperability
  • Handles resolutions from 480i through 1080p at 24, 25, 30, 50 and 60 Hz frame rates

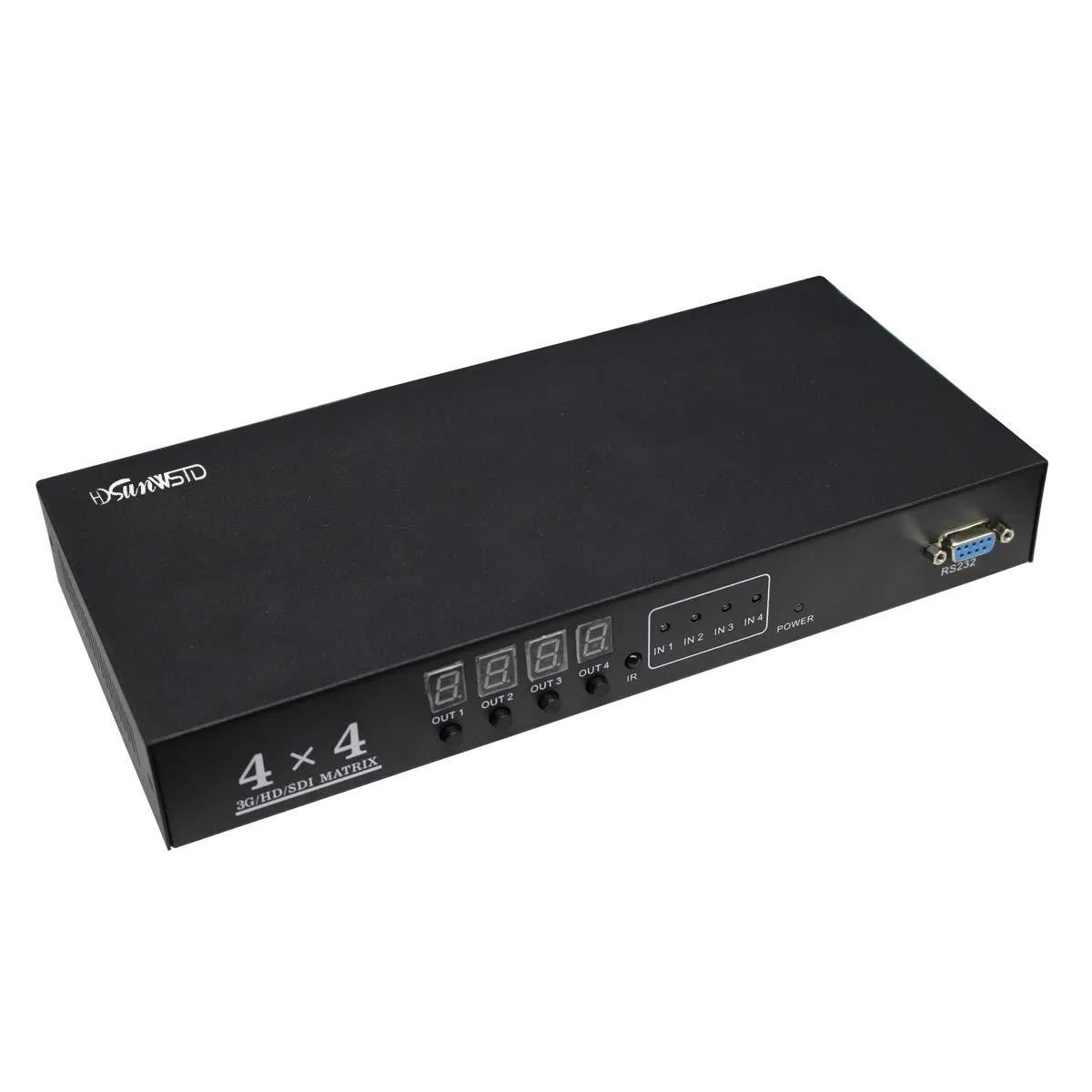

  • Compact 1.157 kg chassis with front-panel buttons and IR remote for flexible operation

Professional 4x4 SDI Matrix Switcher

The Vszerda 4x4 SDI matrix switcher routes four BNC SDI inputs to four independent BNC SDI outputs. It is built for broadcast studios, security operations and training venues that need reliable signal distribution across multiple displays.

Signal integrity and SMPTE compliance

The unit handles SD-SDI, HD-SDI and 3G-SDI formats with compatibility across SMPTE 259M-C, 292M and 424M standards. Output signal level is maintained at 800mVp-p for consistent transmission quality.

Resolution support up to 1080P at 60Hz

Supported input and output resolutions include 480i, 576i, 720P and 1080i at 50 or 60Hz, plus 1080P at 24, 25, 30, 50 and 60Hz. Buyers needing 4K or higher frame rates should select a different matrix.

Highlights

  • Routes any of four SDI sources to four independent displays via BNC matrix switching
  • Supports SD-SDI, HD-SDI and 3G-SDI formats for broadcast-grade signal compatibility
  • Compliant with SMPTE 259M-C, 292M and 424M standards ensuring professional interoperability
  • Handles resolutions from 480i through 1080p at 24, 25, 30, 50 and 60 Hz frame rates
  • Compact 1.157 kg chassis with front-panel buttons and IR remote for flexible operation

Specifications

BrandHDSUNWSTD
TypeS-Video
Changer TypeCoaxial
ColorBlack
Ports4
Input Connector4
Weight1.157 kilograms

Questions about this item

How do I install the Vszerda 4×4 SDI matrix and which step is often missed?

Connect each source to the four BNC SDI inputs and each display to the four BNC SDI outputs, then attach the included US power adapter; the step often missed is verifying that every cable run stays within the 800 mVp-p output range so the signal arrives at the far end without attenuation.

What maintenance or replacement will this switcher need later?

The unit has no user-serviceable parts and no cooling fans; plan only to replace the external power adapter if it fails and to inspect BNC connectors for corrosion during routine rack checks.

What limit appears first during sustained 3G-SDI operation?

The 800 mVp-p output level is the first constraint; on long coaxial runs the signal will drop below spec before the switcher itself reaches any thermal limit.
