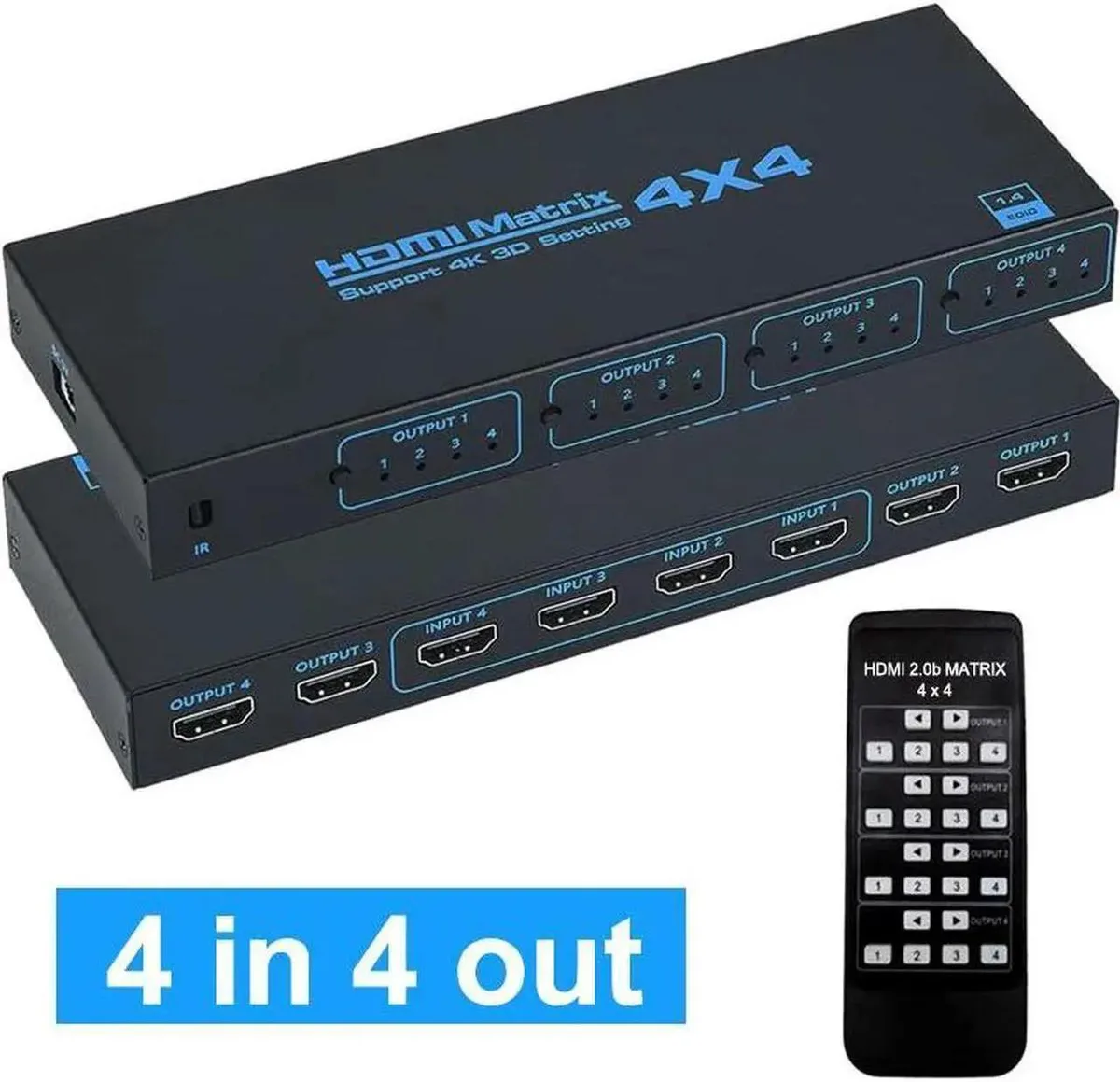

Black rectangular box with four HDMI ports on each side and an IR remote control

Vszerda

Vszerda 4x4 HDMI Matrix Switch 4K 30Hz YUV 4:2:0 10.2Gbps IR Remote

SKU CH-R2RG-6T44T

Routes four HDMI sources to four displays at 4K 30 Hz YUV 4:2:0 with IR remote control

  • Routes four sources to four displays independently
  • Handles 4K 30 Hz YUV 4:2:0 and 1080p 60 Hz signals
  • Operates at 10.2 Gbps bandwidth via HDMI 1.4
  • Includes IR remote for convenient switching
  • Supports 3D video formats for compatible content

4x4 HDMI Matrix Switch

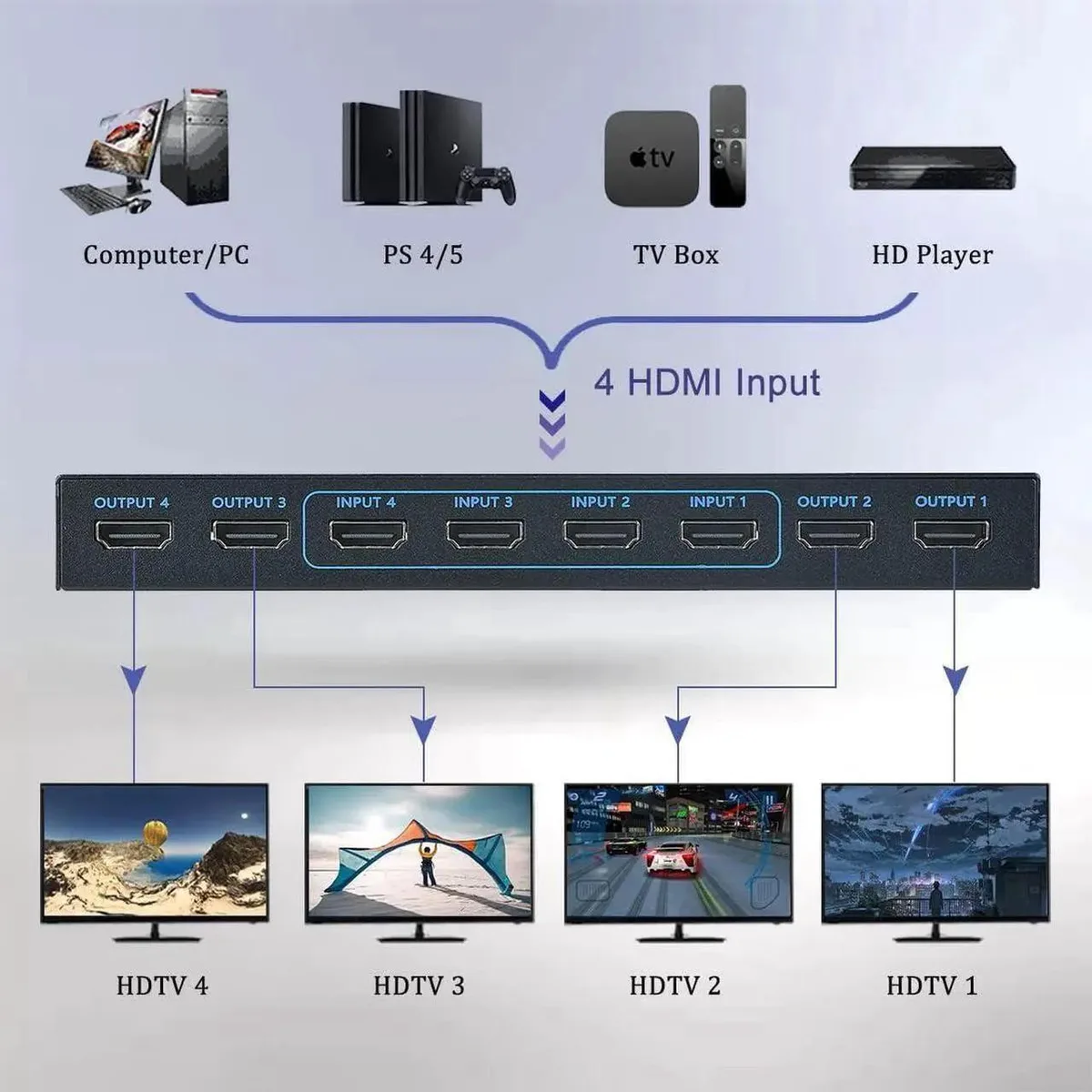

The Vszerda 4x4 HDMI matrix switch routes four HDMI sources to four displays independently. It suits installers who need fixed routing in home theatres, conference rooms, retail signage or classroom AV setups. Each output can show any input without affecting the others.

Installation and common issues

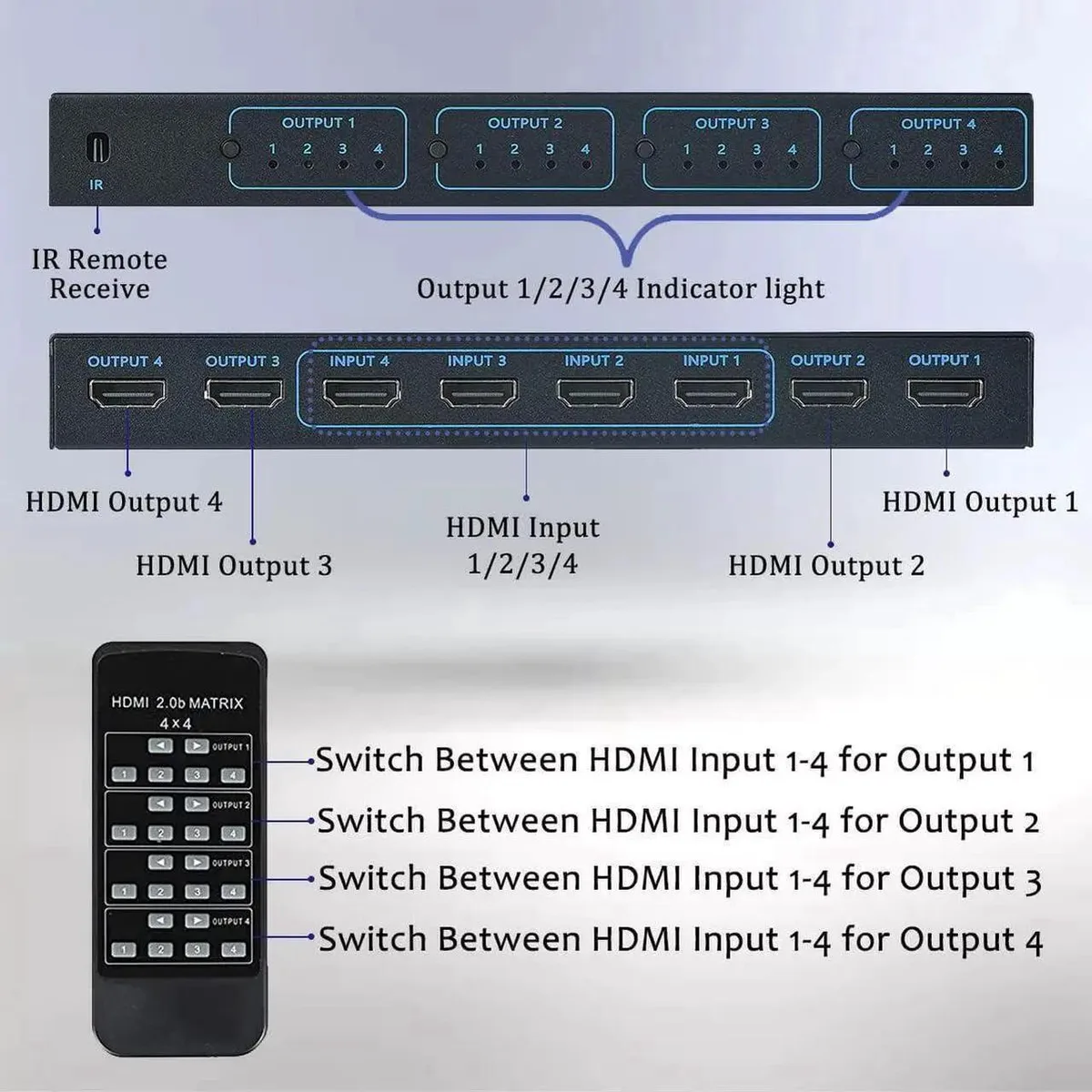

Connect sources and displays with standard HDMI cables, then power the unit. Switch inputs using the front-panel buttons or the supplied IR remote. Allow three to five seconds for the new signal to appear on screen; the switch is not seamless. No EDID management is required.

HDMI 1.4 bandwidth limits

The HDMI 1.4 interface caps video at YUV 4:2:0 4K 30 Hz or 1080p 60 Hz with 10.2 Gbps bandwidth. Higher refresh rates, 4:4:4 chroma or HDR metadata are not supported. Cable runs must stay within the limits of the HDMI 1.4 specification for reliable operation.

Highlights

  • Routes four sources to four displays independently
  • Handles 4K 30 Hz YUV 4:2:0 and 1080p 60 Hz signals
  • Operates at 10.2 Gbps bandwidth via HDMI 1.4
  • Includes IR remote for convenient switching
  • Supports 3D video formats for compatible content

Specifications

No published specifications for this item yet.

Questions about this item

How do I confirm the 4K 30Hz YUV 4:2:0 signal is active after connecting sources and displays?

Select an input with the IR remote or front panel button, wait the stated 3-5 seconds, then verify the display shows 4K at 30 Hz with YUV 4:2:0 colour sampling.

What comes in the box and what extra cables are required?

The matrix switch and IR remote are included; you must supply four HDMI source cables and four HDMI display cables separately.

Which version should I choose for 1080p 60Hz versus 4K 30Hz needs?

This single model handles both — it supports 1080p at 60 Hz and 4K at 30 Hz YUV 4:2:0 over HDMI 1.4, so no other version is required.
