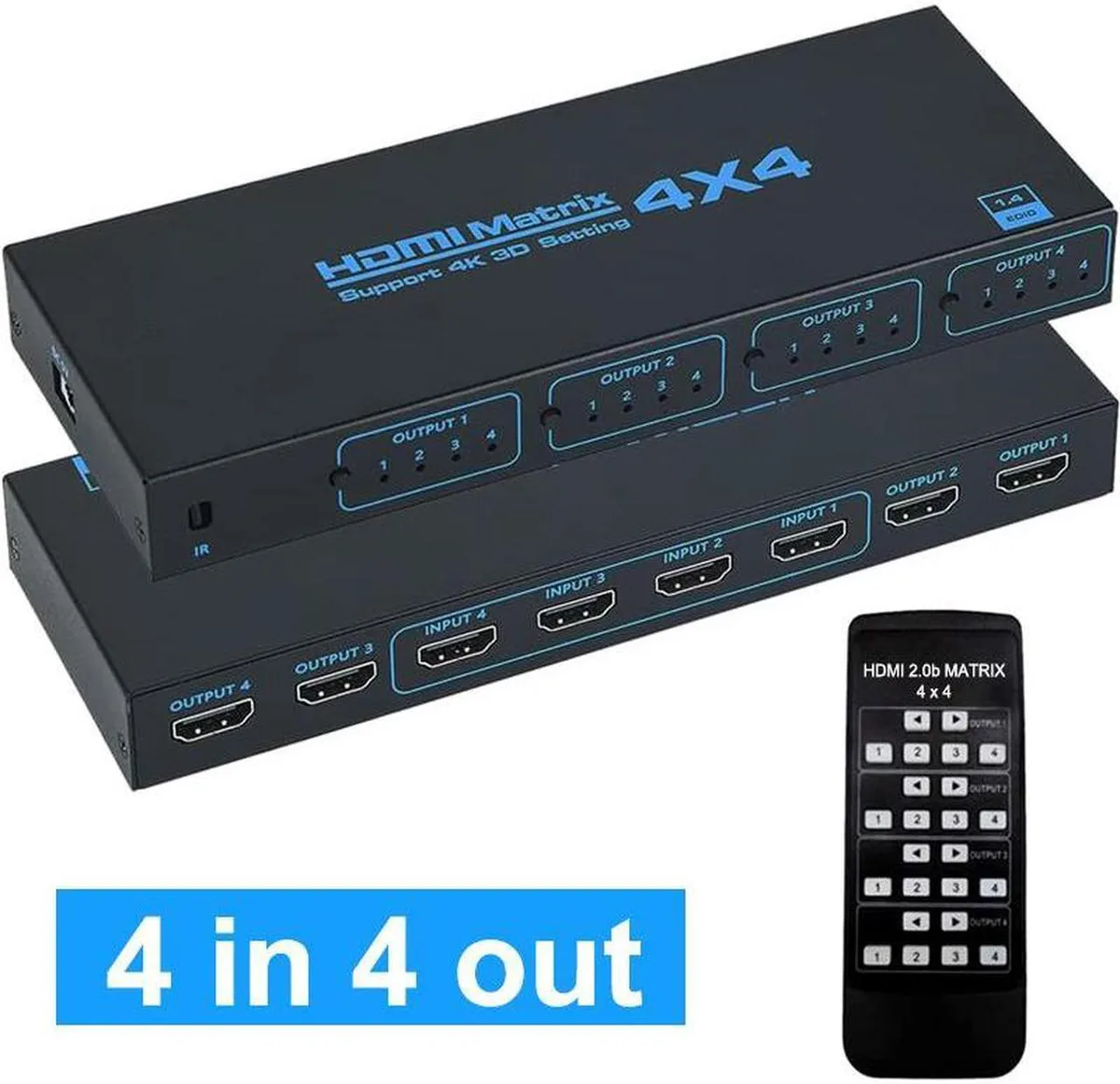

Black rectangular box with four HDMI inputs and four outputs on the rear panel

Vszerda

Vszerda 4x4 HDMI Matrix Switch 4K 30Hz 10.2Gbps

SKU CH-W3E6-0R21V

Routes four HDMI sources to four displays at up to 4K 30 Hz YUV 4:2:0 with IR remote and front-panel control

  • Routes four sources to four displays independently
  • Handles 4K at 30 Hz with 10.2 Gbps bandwidth
  • Includes IR remote for convenient switching
  • Supports 3D and 1080p at 60 Hz formats
  • Works without manual EDID configuration

4x4 HDMI Matrix Switch

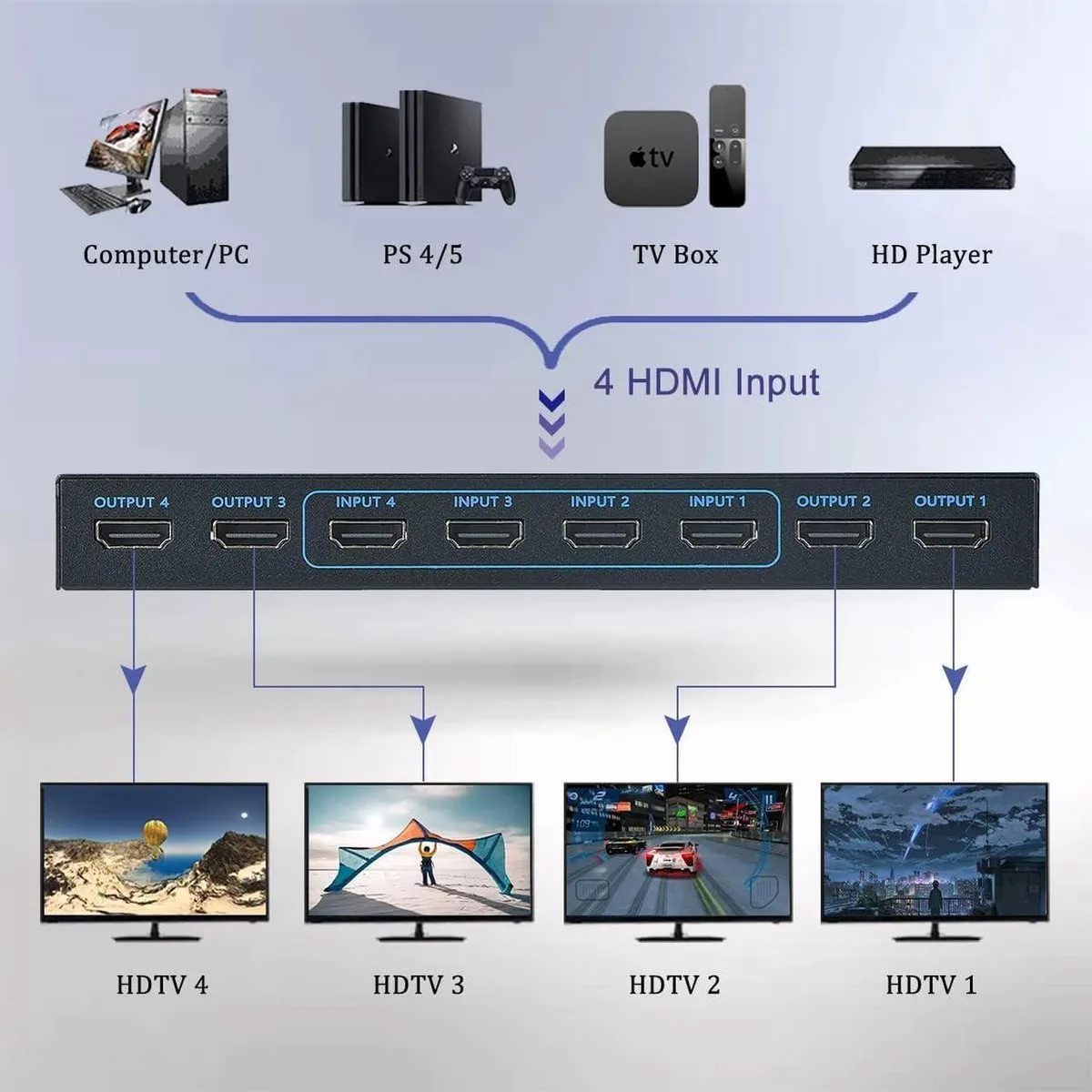

The Vszerda 4x4 HDMI Matrix Switch routes four HDMI sources to four displays simultaneously. It suits installers managing home theatres, conference rooms, retail signage or classroom AV racks. The unit accepts four inputs and mirrors or splits them across four outputs without additional distribution hardware. Front-panel buttons and the supplied IR remote provide local switching control.

Capacity and headroom

The switch handles video up to YUV 4:2:0 4K at 30 Hz and 1080p at 60 Hz through its HDMI 1.4 interface. Bandwidth is rated at 10.2 Gbps, so full 4:4:4 4K 60 Hz signals exceed the available headroom. 3D video formats are supported within the same resolution limits. The device does not perform seamless switching; expect a 3 to 5 second delay when changing routes.

Thermals noise and power

No fan is fitted, so operation is silent in normal use. The chassis dissipates heat passively during continuous matrix operation. Power consumption remains low for a fixed-installation AV device. The unit draws power from an external supply, keeping the main enclosure cool and quiet.

Highlights

  • Routes four sources to four displays independently
  • Handles 4K at 30 Hz with 10.2 Gbps bandwidth
  • Includes IR remote for convenient switching
  • Supports 3D and 1080p at 60 Hz formats
  • Works without manual EDID configuration

Specifications

No published specifications for this item yet.

Questions about this item

Will the 4K 30Hz output work with my older 1080p displays that only handle 60Hz?

Yes, the matrix supports 1080P@60Hz on each output, so legacy monitors and projectors will display correctly alongside any 4K screens you connect.

How can I confirm the 4x4 switching is working after I connect the IR remote and press a button?

Allow 3 to 5 seconds after each button press; the selected source will then appear on the chosen display, showing the switch has completed.

Which cables and power items are included with the Vszerda 4x4 HDMI Matrix Switch?

The unit ships with an IR remote control for front-panel operation; HDMI cables and any required power supply are not included and must be purchased separately.
