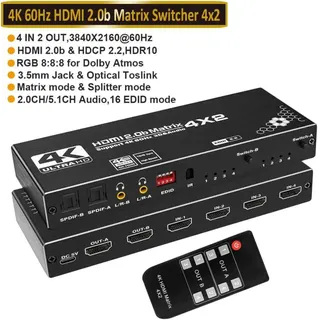

Black rectangular HDMI matrix switch with four inputs and two outputs, IR remote included

Vszerda

Vszerda 4x2 HDMI Matrix Switch Video Switcher Splitter SPDIF 3.5mm Audio OZJ1

SKU CH-GBS3-TYDXC

Routes four HDMI sources to two displays with simultaneous optical and 3.5 mm audio outputs at 4K 60 Hz

  • 4 HDMI sources to 2 displays with independent switching
  • 4K 60 Hz 18.5 Gbps video bandwidth with HDCP 2.2
  • Simultaneous HDMI, 3.5 mm and optical audio outputs
  • Deep colour 8/10/12/24/32/48 bit plus HDR 10
  • IR remote and front-panel buttons for instant source selection

4×2 HDMI matrix switch

The Vszerda 4×2 HDMI matrix connects up to four source devices to two displays and lets you route any input to either output independently. It supports 3840×2160 at 60 Hz, 3D 1080P, HDMI 2.0b and HDCP 2.2 with 18.5 Gbps bandwidth. Suitable for home theatre, office, classroom or commercial signage installations.

Installation and common issues

The unit is plug-and-play with built-in equalisation and amplification; simply connect sources, displays and the supplied power adapter on the same side as the HDMI ports. IR remote or front-panel buttons select routing. Ultra-wide 3440×1440 is not supported and may cause compatibility issues, so avoid that resolution.

Pre-purchase checklist

Verify each source can output 3840×2160 at 60 Hz or lower and that your displays accept the same signal with HDCP 2.2. Confirm you need simultaneous HDMI, 3.5 mm stereo and optical audio from both zones — note Dolby Atmos 7.1 is only available on output A. Ensure an AC outlet is near the mounting location for the included power supply.

Highlights

  • 4 HDMI sources to 2 displays with independent switching
  • 4K 60 Hz 18.5 Gbps video bandwidth with HDCP 2.2
  • Simultaneous HDMI, 3.5 mm and optical audio outputs
  • Deep colour 8/10/12/24/32/48 bit plus HDR 10
  • IR remote and front-panel buttons for instant source selection

Specifications

No published specifications for this item yet.

Questions about this item

How do I verify the matrix is passing 4K at 60 Hz to both displays after setup?

Check that each connected display reports 3840x2160 at 60 Hz in its on-screen menu and that video plays without drop-outs on both outputs simultaneously.

What cables and accessories are included versus what I must provide?

The unit ships with an IR remote and power adapter; you must supply four HDMI source cables and two HDMI display cables yourself.

Should I choose this 4x2 matrix or a simpler splitter for my install?

Choose this 4x2 matrix when you need to route any of four sources to two independent displays; a basic splitter only duplicates one source to multiple screens.
