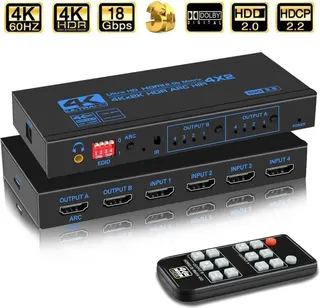

Compact black metal box with four HDMI inputs, two outputs, optical and 3.5mm audio ports, IR sensor and remote control

Vszerda

Vszerda 4x2 HDMI Matrix Switch Splitter 4K 60Hz 18Gbps OZJ2-1

SKU CH-M2VD-WQVZW

Routes four HDMI sources to two displays at 4K 60 Hz with 18 Gbps bandwidth and extracts audio via optical or 3.5 mm output

  • Switch four sources to two displays via IR remote
  • 4K 60 Hz 18 Gbps HDMI 2.0b with HDCP 2.2
  • Optical and 3.5 mm audio outputs for soundbars or speakers
  • Automatic 4K-to-1080P downscaling for mixed-resolution screens
  • Supports 8/10/12-bit deep colour and 3D video

4×2 HDMI Matrix Switch

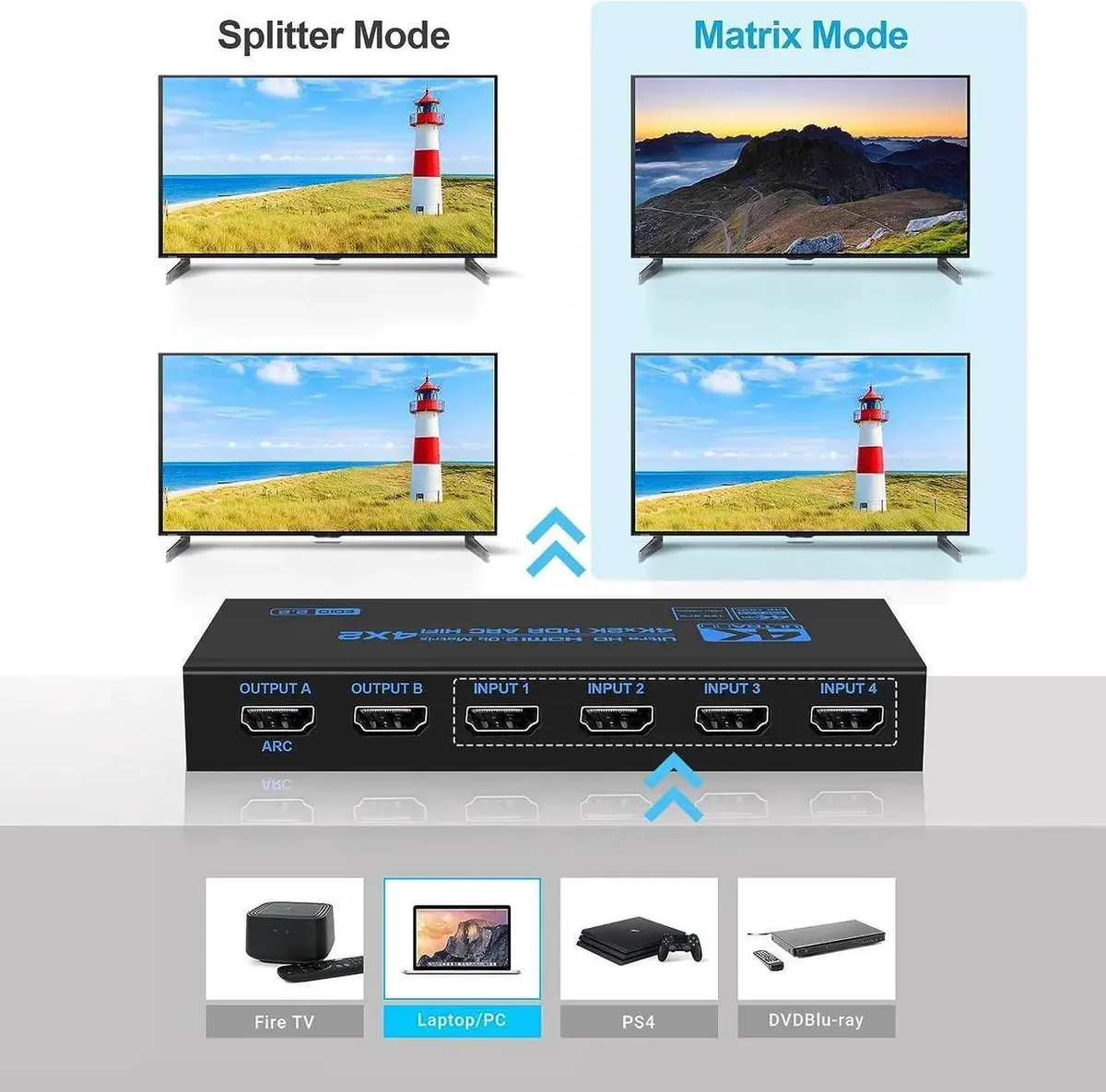

The Vszerda 4×2 HDMI matrix switch routes four HDMI sources to two displays at up to 4K 60 Hz with 18 Gbps bandwidth. It supports HDMI 2.0b and HDCP 2.2 or 1.4 for copy-protected content. Optical and 3.5 mm stereo outputs send audio to amplifiers, soundbars or speakers. The unit suits home theatres, offices, classrooms and commercial installations.

Installation and common issues

Connect each source and display with standard HDMI cables, attach the 5 V power adapter and select inputs via the IR remote or front-panel buttons. The built-in EDID extractor and automatic downscaler convert a 4K signal to 1080p for the second display, but only 4K to 1080p downgrades are supported. Ensure all cables are rated for 18 Gbps to avoid signal dropouts at 4K 60 Hz.

Pre-purchase checklist

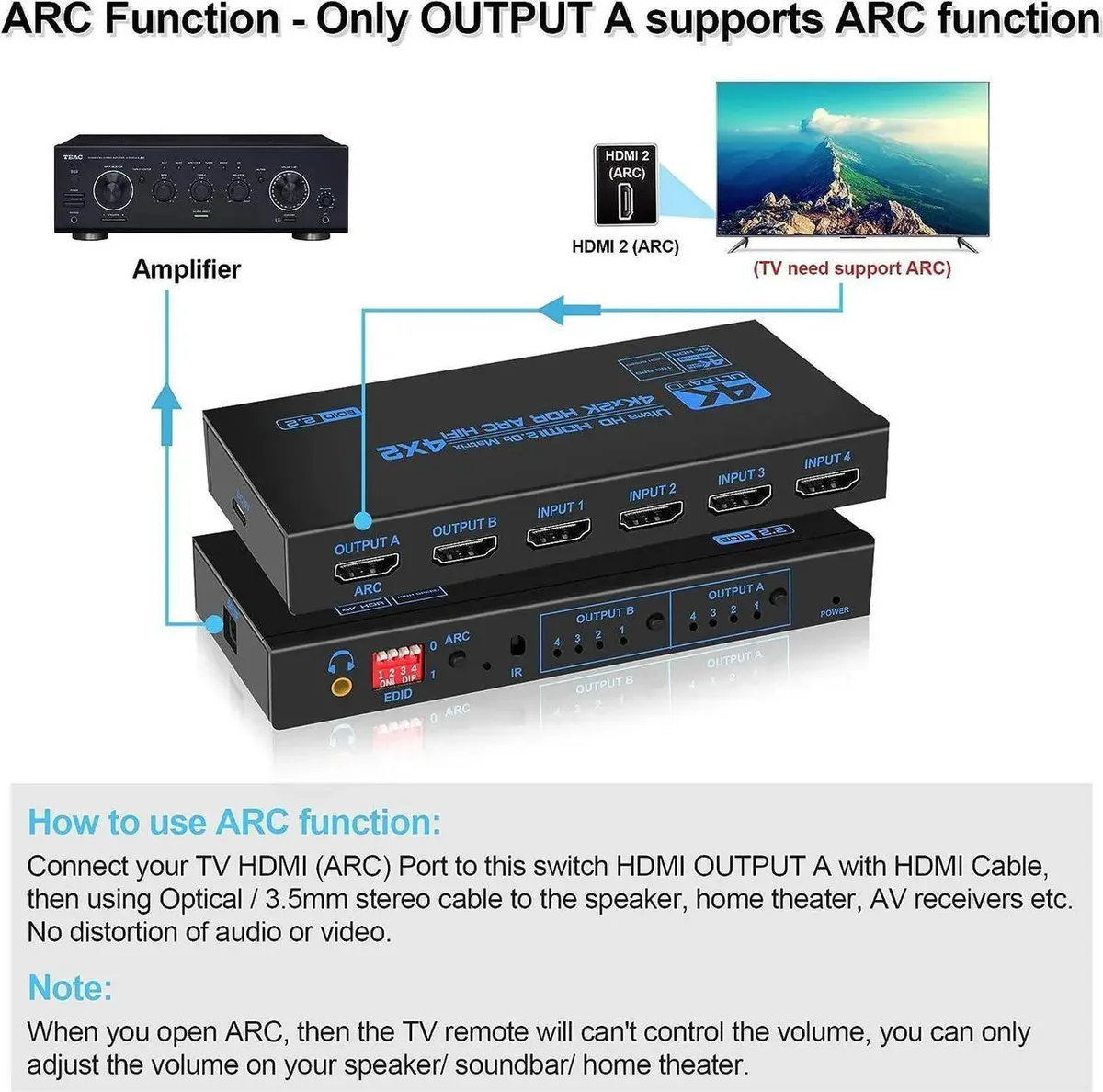

Verify that every source device can output HDMI 2.0b with HDCP 2.2 or 1.4 and that both displays accept the resolutions you plan to use. Confirm you have four HDMI cables capable of 18 Gbps and one optical or 3.5 mm audio cable for external sound. The matrix provides ARC audio return but does not downscale resolutions other than 4K to 1080p.

Highlights

  • Switch four sources to two displays via IR remote
  • 4K 60 Hz 18 Gbps HDMI 2.0b with HDCP 2.2
  • Optical and 3.5 mm audio outputs for soundbars or speakers
  • Automatic 4K-to-1080P downscaling for mixed-resolution screens
  • Supports 8/10/12-bit deep colour and 3D video

Specifications

No published specifications for this item yet.

Questions about this item

How can I verify the matrix is passing 4K 60Hz video correctly after connecting my sources and displays?

Check that both connected displays show a stable 4K 60Hz image from each of the four inputs; the unit supports HDMI 2.0b and HDCP 2.2 for protected content.

Which cables and accessories are included, and what must I provide myself?

The box contains the 4x2 matrix, an IR remote control, a 5V power adapter and a user manual; you must supply four HDMI input cables and two HDMI output cables.

When should I choose the 4K 60Hz 18Gbps version versus a lower-spec alternative?

Select this 18Gbps model when you need full 4K 60Hz 8/10/12-bit colour and HDCP 2.2 across four sources and two displays; lower bandwidth units cannot guarantee that performance.
