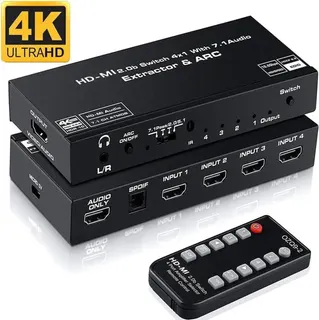

Small black box with four HDMI inputs, one HDMI output, optical, RCA and 3.5 mm audio ports

Vszerda

Vszerda 4x1 HDMI 2.0 Switch Audio Extractor 4K SPDIF TOSLINK RCA

SKU CH-MV2F-4Q00M

Four-port HDMI 2.0 switch routes 4K 60 Hz sources to one display while extracting 7.1 Atmos, 5.1 optical or 2.0 analogue audio

  • Connect four sources to one display with 4K@60Hz HDR 10 switching
  • Extract 7.1 Atmos audio to HDMI, 5.1 to optical, 2.0 to 3.5 mm jack
  • Auto-switch jumps to the newest active input, remote selects any port manually
  • Supports Dolby TrueHD, DTS:X, DTS-HD Master and PCM up to 7.1 channels
  • 5 Gbps bandwidth with 36-bit deep colour for gaming and cinema quality

4×1 HDMI 2.0 Switch

This device connects four HDMI sources to a single display and extracts audio to HDMI, optical TOSLINK or a 3.5 mm jack. It suits home-theatre or desktop setups that need to alternate between consoles, streamers or PCs on one screen. It does not serve installations that require simultaneous output to multiple monitors.

Audio capacity and headroom

HDMI audio output carries PCM up to 7.1 channels plus Dolby Atmos, Dolby TrueHD, DTS:X and DTS-HD Master Audio. Optical output is limited to Dolby Digital or DTS 5.1 and PCM 2.0. The 3.5 mm jack delivers stereo PCM only, so multi-channel analogue systems cannot be driven directly.

HDMI 2.0b interface limits

Video bandwidth reaches 18.5 Gbps at 600 MHz, supporting 4K at 60 Hz, HDR10, HDCP 2.2 and RGB 8:8:8 at 36-bit colour depth. The switch auto-selects the most recently connected active source and includes a remote for manual switching; it cannot pass signals beyond the HDMI 2.0b specification.

Highlights

  • Connect four sources to one display with 4K@60Hz HDR 10 switching
  • Extract 7.1 Atmos audio to HDMI, 5.1 to optical, 2.0 to 3.5 mm jack
  • Auto-switch jumps to the newest active input, remote selects any port manually
  • Supports Dolby TrueHD, DTS:X, DTS-HD Master and PCM up to 7.1 channels
  • 5 Gbps bandwidth with 36-bit deep colour for gaming and cinema quality

Specifications

No published specifications for this item yet.

Questions about this item

Will the 4K@60Hz HDMI 2.0 switch pass HDR10 and HDCP 2.2 from my older consoles to my current display?

Yes, the switch supports 4K@60Hz, HDR10, HDCP 2.2, RGB 8:8:8 and up to 18.5Gbps bandwidth, so older consoles that output those signals will pass through unchanged.

How can I verify the audio extractor is sending 5.1 surround to my soundbar via the optical TOSLINK port?

Set the source to output Dolby Digital or DTS 5.1, select the matching audio mode on the switch, and confirm the soundbar displays a 5.1 or Dolby/DTS indicator.

Does the box include HDMI cables for the four inputs and the output, or must I buy them separately?

The package contains the switch, a remote control and a power adapter; HDMI cables for the four inputs and the single output are not included and must be purchased separately.
