Black rectangular box with HDMI ports and IR remote

Vszerda

Vszerda 4K HDMI Matrix Switch 2x2 OZJ3

SKU CH-2VDP-6HQVN

Routes two HDMI sources to two displays as a true matrix or splitter with 4K 60 Hz, HDR, 3D and 18 Gbps bandwidth

  • Switch any of two sources to either display independently
  • Show the same source on both displays simultaneously
  • Supports 3840×2160 at 60 Hz with 18 Gbps bandwidth
  • HDMI 2.0 and HDCP 2.2 compliant for protected 4K content
  • IR remote included for convenient source selection

2×2 HDMI Matrix Switch

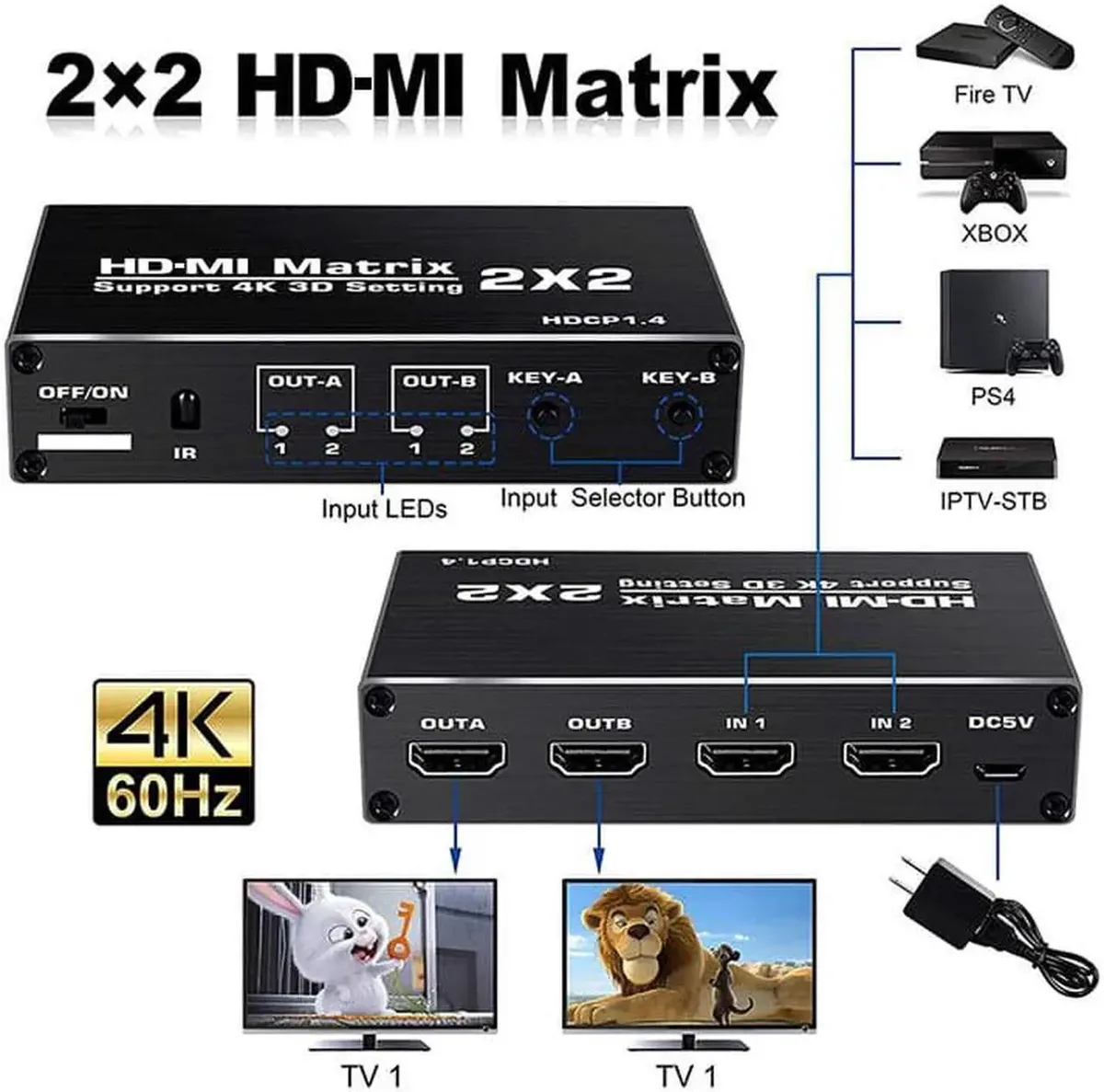

The Vszerda 2×2 HDMI Matrix Switch connects two HDMI sources to two displays. It routes any input to either output independently or duplicates one source across both screens. The unit suits home theatres, conference rooms, education spaces and retail video walls where flexible source distribution is required.

HDMI 2.0b and HDCP limits

The switch handles HDMI 2.0b signalling with an 18 Gbps data rate and TMDS clock up to 600 MHz. It passes HDCP 1.4 and 2.2 content protection. Maximum supported resolution is 3840×2160 at 60 Hz with YUV 4:2:0 chroma subsampling. HDR is supported for 2K signals; 4K HDR is not covered by the specification.

Black metal chassis with IR remote

The black enclosure operates from a DC 5 V supply drawing up to 600 mA and is rated for -15 °C to +45 °C ambient temperature. Front-panel buttons provide local switching while the included IR remote allows control from a distance. Two HDMI inputs and two HDMI outputs use standard Type A connectors; no mounting brackets or rack ears are supplied.

Highlights

  • Switch any of two sources to either display independently
  • Show the same source on both displays simultaneously
  • Supports 3840×2160 at 60 Hz with 18 Gbps bandwidth
  • HDMI 2.0 and HDCP 2.2 compliant for protected 4K content
  • IR remote included for convenient source selection

Specifications

No published specifications for this item yet.

Questions about this item

Should I pick this 2x2 matrix or a simpler 2x1 switch?

Choose the 2x2 matrix when you need to route either of two sources to both displays independently; a 2x1 switch can only send one source to one screen at a time.

What does the 4K 60 Hz rating mean when I connect a monitor?

The unit passes 3840×2160 at 60 Hz with YUV 4:2:0 colour sampling, so 4K HDR content at 60 frames per second displays correctly on each output.

Which HDMI version and HDCP level does the box use, and what bandwidth does that allow?

It implements HDMI 2.0b with HDCP 1.4, providing an 18 Gbps data rate and a TMDS clock up to 600 MHz for 4K 60 Hz signals.
