Small black box with HDMI ports, optical and 3.5mm audio outputs, and a mode switch

Vszerda

Vszerda 4K 60Hz HDMI Audio Extractor Splitter

SKU CH-S8W7-0NBT3

Extracts audio from 4K 60 Hz HDMI to optical Toslink and 3.5 mm AUX with 2CH and 5.1CH mode switching

  • Extract audio to soundbar and headphones simultaneously via HDMI, optical and 3.5 mm outputs
  • Switch between Pass, 2CH and 5.1CH modes for stereo or surround sound
  • Enjoy 4K 60 Hz video with 24, 30 or 36 bit deep colour and HDCP 2.2
  • Connect Blu-ray players, consoles, streaming boxes and PCs with wide device compatibility

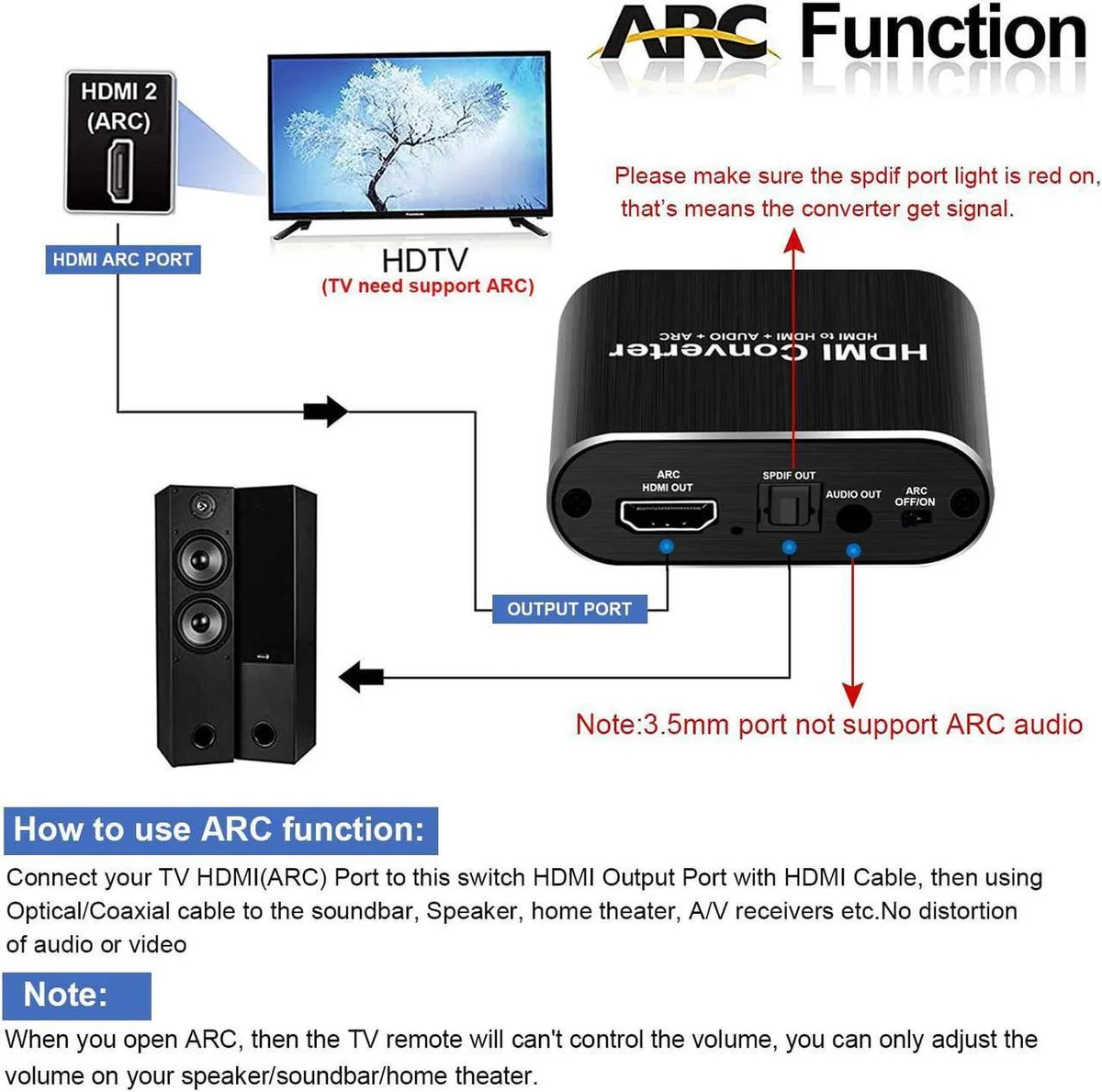

  • Return TV audio to an amplifier using HDMI ARC support

4K 60Hz HDMI Audio Extractor

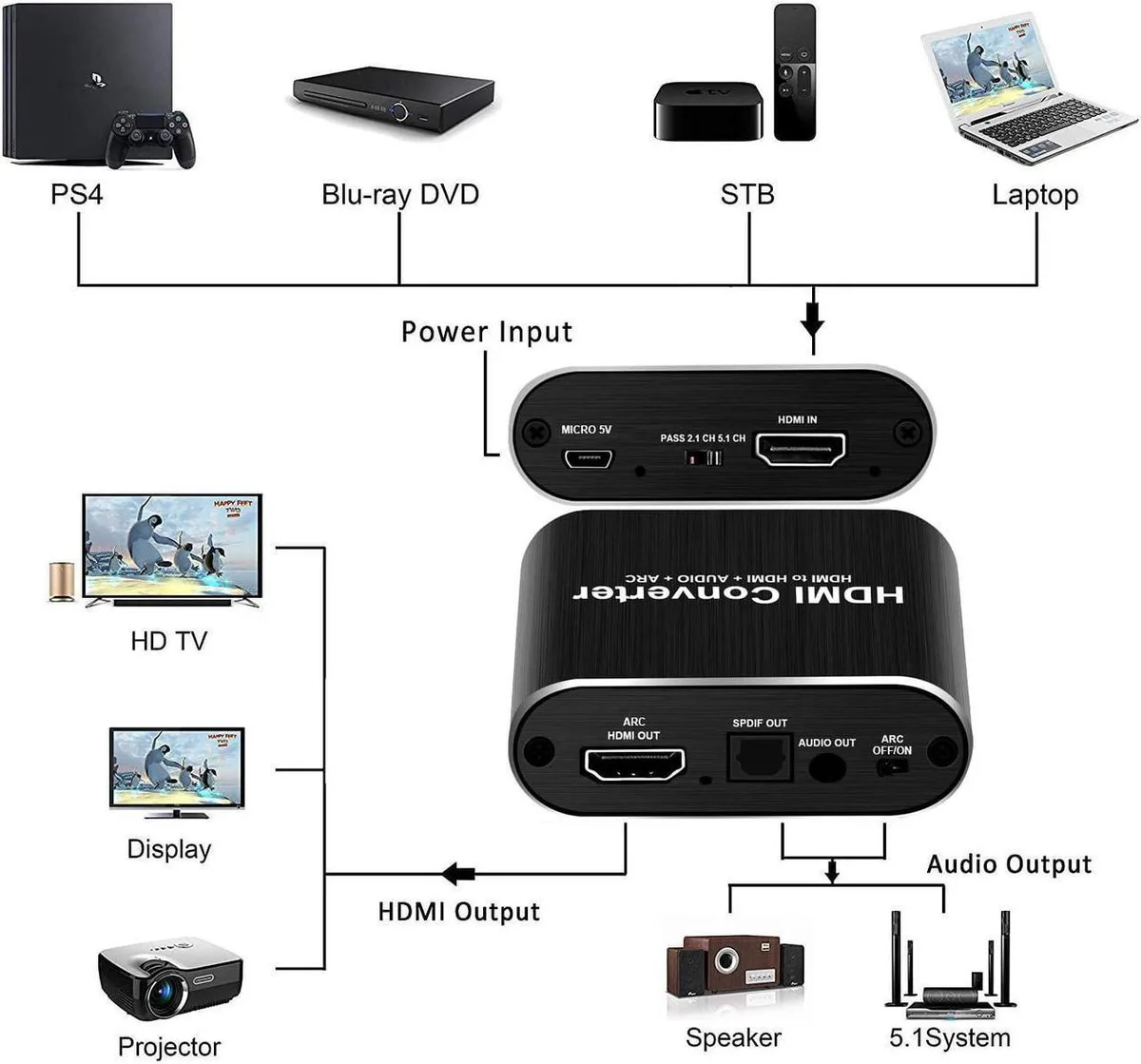

The Vszerda 4K 60Hz HDMI Audio Extractor Splitter takes a single HDMI input and delivers one HDMI output plus optical Toslink SPDIF and 3.5 mm AUX stereo audio outputs. It separates audio for a soundbar, amplifier, headphones or other receiver without needing a TV or monitor connected. The unit supports HDCP 2.2 and handles 4K at 60 Hz, 3D and Full HD 1080p signals.

Upgrading from basic HDMI passthrough

This extractor replaces a simple HDMI cable when you need to route multichannel audio to an external sound system that lacks HDMI inputs. The jump is worthwhile when your source device outputs Dolby Digital, Dolby TrueHD or DTS-HD over HDMI but your amplifier only accepts optical or analogue stereo connections. A three-position switch selects Pass, 2CH or 5.1CH mode to match the downstream equipment.

HDMI 1.4 and HDCP limits

Video passes through at up to 4K 60 Hz with 24, 30 or 36-bit deep colour and 4:2:0 chroma subsampling under HDMI 1.4 and HDCP 1.4. The optical output carries 2CH PCM, 5.1CH Dolby Digital, Dolby TrueHD and DTS-HD, but does not support Dolby Digital Plus. CEC and ARC functions are not supported, so device control and TV-originated audio return will not work through this adapter.

Highlights

  • Extract audio to soundbar and headphones simultaneously via HDMI, optical and 3.5 mm outputs
  • Switch between Pass, 2CH and 5.1CH modes for stereo or surround sound
  • Enjoy 4K 60 Hz video with 24, 30 or 36 bit deep colour and HDCP 2.2
  • Connect Blu-ray players, consoles, streaming boxes and PCs with wide device compatibility
  • Return TV audio to an amplifier using HDMI ARC support

Specifications

No published specifications for this item yet.

Questions about this item

What HDMI cable rating do I need for 4K 60 Hz with 24, 30 or 36 bit deep colour?

Use a cable that meets the HDMI 1.4 bandwidth required for 4K 60 Hz and the listed colour depths.

Which audio mode switch should I select for a soundbar connected to the optical output?

Choose 5.1CH mode for Dolby Digital, Dolby TrueHD or DTS-HD; choose 2CH mode for stereo PCM; Pass sends the source format unchanged.

When will I need to add an external power supply?

If the HDMI source cannot deliver enough current — noted with some low-power ports such as PS4 or PS4 Slim — connect a 5 V USB supply to the unit.
