Green PCIe x1 expansion card with four SATA ports and four red cables plus low-profile bracket

Vszerda

Vszerda 4-Port PCIe SATA Card with 4 SATA Cables & Low Profile Bracket

SKU CH-NVZ5-M4P3C

Adds four 6 Gbps SATA3.0 ports via a PCIe x1 slot using the ASMedia ASM1064 chip and includes four cables plus a low-profile bracket

  • Color4 Port, PCIe-X1, with 4 SATA cable
  • Add four 6 Gbps SATA drives with included cables
  • ASMedia ASM1064 chip for stable operation
  • PCIe 3.0 x1 gives 8 Gbps total bandwidth
  • Full-height and low-profile brackets supplied
  • Works with Windows, Linux, FreeBSD and VMware ESXi

Four-port SATA expansion

The Vszerda PCIe card adds four 6 Gbps SATA 3.0 ports through a single PCIe x1 slot. It is based on the ASMedia ASM1064 controller and ships with four SATA cables plus both full-height and low-profile brackets. The card supports AHCI boot and storage for up to four SATA SSDs or hard drives.

Suited for storage upgrades.

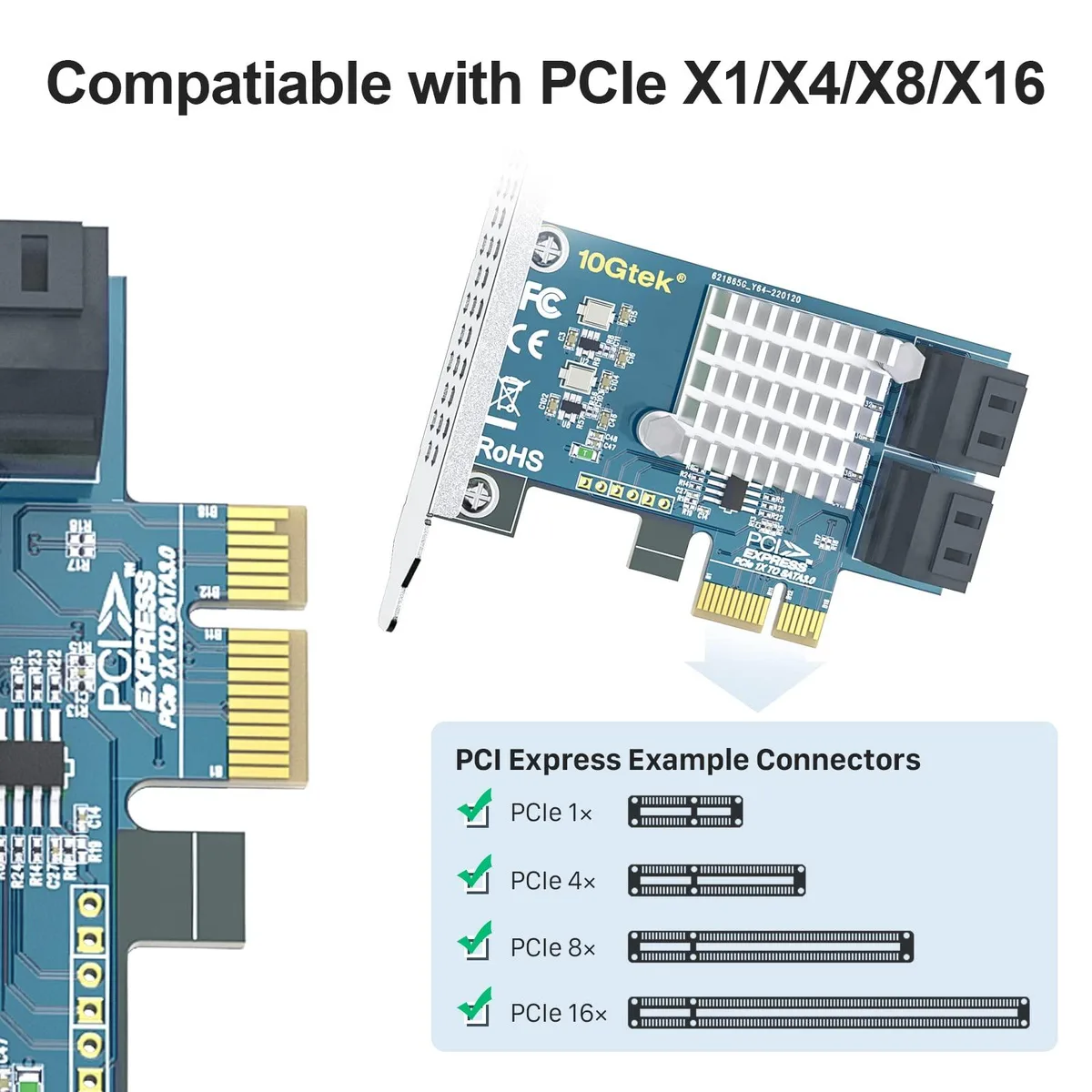

Builders who need extra internal SATA connections on a desktop motherboard will find this card a direct fit. It works with PCIe 1.0, 2.0 and 3.0 slots from x1 to x16 and runs on Windows 7 through Server 2019, plus major Linux distributions. Users who require hardware RAID arrays or hot-swap capability should look at a different controller.

ASM1064 chip with 8 Gbps host bandwidth

The ASMedia ASM1064 controller provides 8 Gbps of total PCIe 3.0 x1 bandwidth, feeding four ports that each reach 6 Gbps maximum speed. Port multiplier command-based switching is supported, and the card is backward compatible with SATA 1.0 and 2.0 devices.

Highlights

  • Add four 6 Gbps SATA drives with included cables
  • ASMedia ASM1064 chip for stable operation
  • PCIe 3.0 x1 gives 8 Gbps total bandwidth
  • Full-height and low-profile brackets supplied
  • Works with Windows, Linux, FreeBSD and VMware ESXi

Specifications

Brandipolex
Color4 Port, PCIe-X1, with 4 SATA cable

Questions about this item

Does the Vszerda 4-port PCIe SATA card ship with the cables and bracket I need to install four drives?

Yes, the package includes four SATA cables plus both a full-height and a low-profile bracket so you can fit the card in a standard or slim chassis without buying anything extra.

Which version of the card should I pick if I want the ASMedia ASM1064 chip and 6 Gbps SATA 3.0 ports?

The listed model uses the ASM1064 controller and provides four SATA 3.0 ports running at up to 6 Gbps each, so this single version already delivers that specification.

What does the 8 Gbps PCIe 3.0 x1 bandwidth mean when I connect four SATA 3.0 SSDs at once?

The PCIe 3.0 x1 link supplies 8 Gbps total throughput, so four drives at 6 Gbps each will share that bandwidth; sustained transfers from all drives simultaneously will be limited to the 8 Gbps aggregate.
