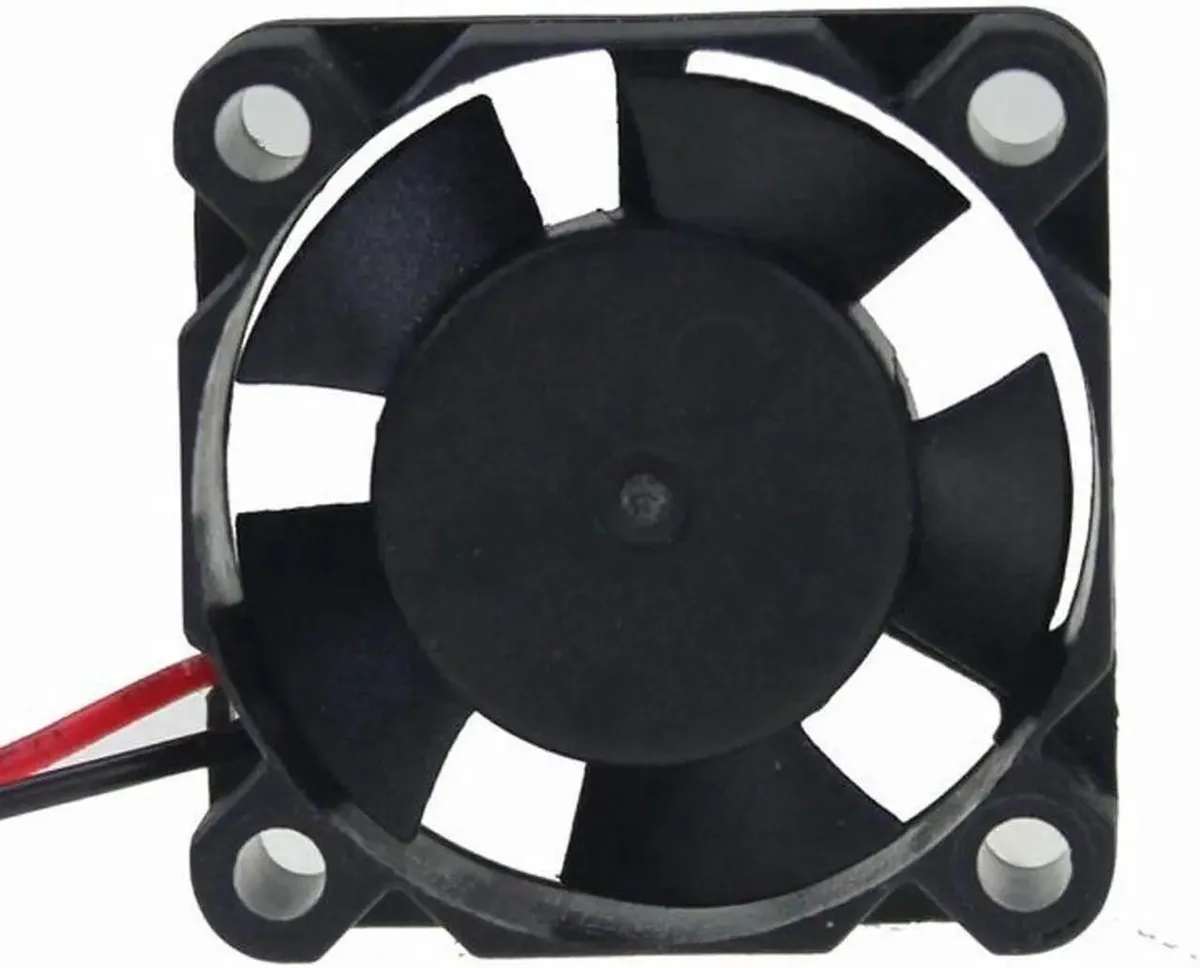

Small black square 24 V brushless fan 30 by 30 by 10 mm with two pin cable

Vszerda

Vszerda 3010 24V 30x30x10mm 2Pin case fan

SKU CH-R1KJ-YGQBJ

A 30×30×10 mm 24 V brushless fan with a 2-pin XH 2.5 connector, 15 000 rpm and 4.12 CFM airflow

  • Quiet 25 dBA operation backed by sleeve bearing
  • High 15000 rpm speed delivers 4.12 CFM airflow
  • Compact 30 x 30 x 10 mm size fits tight spaces
  • 24 V DC input with 14-26 V range suits industrial use
  • 40000 hour rated life reduces replacement frequency

24 V 3010 Brushless Fan

The Vszerda 3010 is a 24 V DC brushless fan measuring 30 mm square by 10 mm thick. It uses a two-pin XH 2.5 connector and draws 0.06 A at its rated voltage. The sleeve bearing is rated for 40 000 hours of operation.

Builders needing 24 V cooling in a 3010 footprint

This fan suits projects that require a 24 V supply and the exact 30x30x10 mm form factor. It will not suit builds that need a 12 V or 5 V fan, a larger frame size, a PWM header, or a higher airflow rating than 4.12 CFM.

15 000 rpm at 24 V

The motor spins at 15 000 rpm with a tolerance of ±10 % when powered between 14 V and 26 V. That speed delivers the stated 4.12 CFM airflow at a listed noise level of 25 dBA.

Highlights

  • Quiet 25 dBA operation backed by sleeve bearing
  • High 15000 rpm speed delivers 4.12 CFM airflow
  • Compact 30 x 30 x 10 mm size fits tight spaces
  • 24 V DC input with 14-26 V range suits industrial use
  • 40000 hour rated life reduces replacement frequency

Specifications

No published specifications for this item yet.

Questions about this item

Will the XH 2.5 2-pin connector on this 3010 fan plug into an older motherboard header that only has 3-pin or 4-pin sockets?

The fan uses an XH 2.5 2-pin connector, so it cannot connect directly to standard 3-pin or 4-pin motherboard headers; an adapter or a compatible 2-pin header is required.

What noise level and speed should I expect to confirm the 24V brushless fan is running correctly after installation?

The fan is rated at 25 dBA and 15000 rpm at 24 V; if the measured noise and speed are close to those figures the unit is operating as specified.

Does the package include mounting screws or a power adapter, or do I need to buy them separately?

Only one fan is included; mounting screws and any voltage adapter are not supplied and must be purchased separately.
