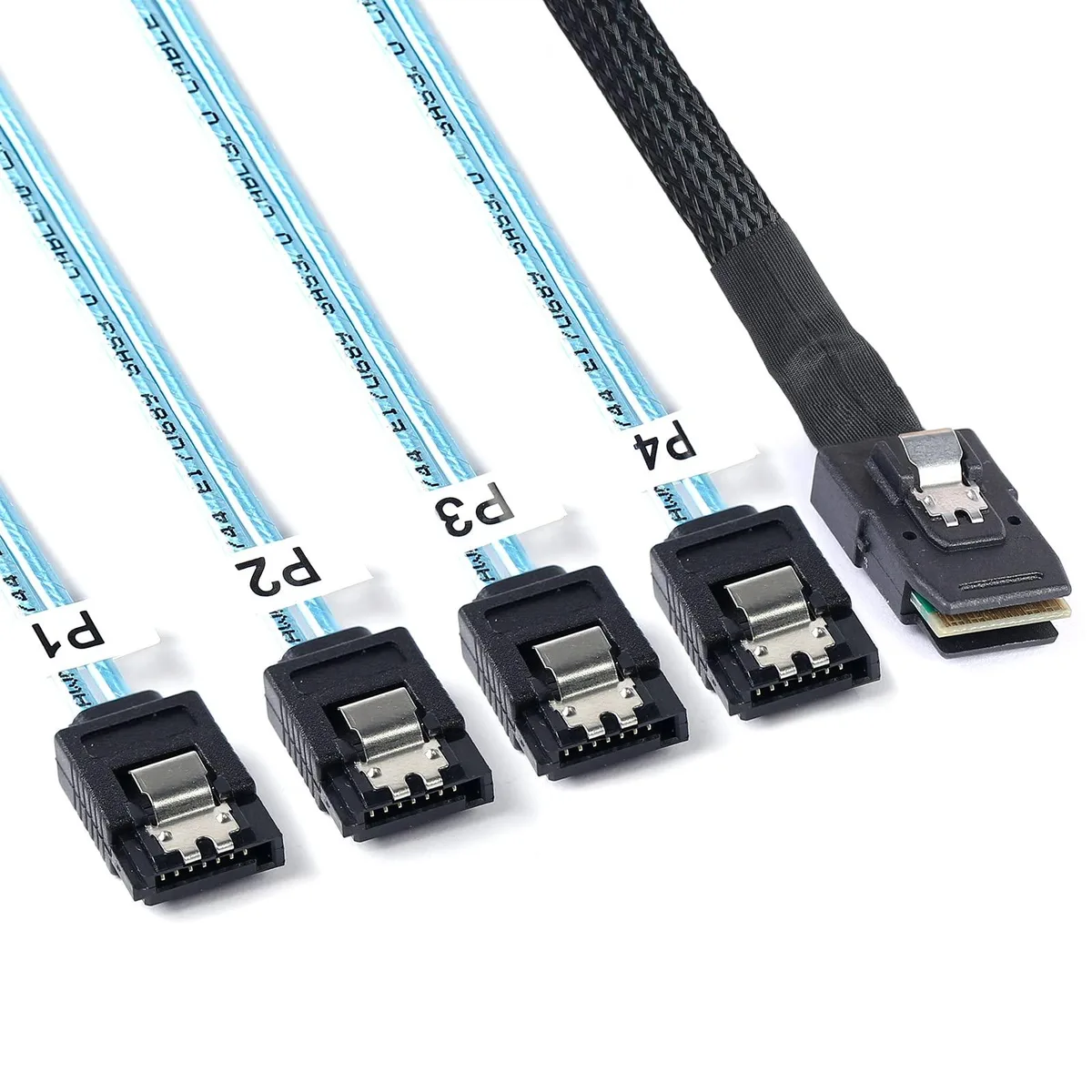

Two black and blue SFF-8087 to 4x SATA breakout cables, 3.3ft each, with locking latches

Vszerda

Vszerda 2Pack SFF-8087 to 4x SATA 3.3ft sata cable

SKU CH-E0EF-PFW9H

Two SFF-8087 Mini SAS cables each split into four SATA 6 Gb/s links for connecting a RAID controller to four drives

  • TypeSAS to SATA, Mini SAS to SATA
  • ColorBlack+Blue
  • Length3.3
  • Speed6 gigabits_per_second
  • ConductorCopper
  • FeaturesMINI SAS SFF-8087 to SATA 1M
  • Connect up to four drives with one controller
  • 6 Gbps per drive supports fast storage throughput
  • Locking latches on both ends secure every connection
  • 30 AWG braided cables route easily in tight cases
  • Two 3.3 ft cables included for multi-drive setups

Vszerda 2Pack SFF-8087 to 4x SATA Cable

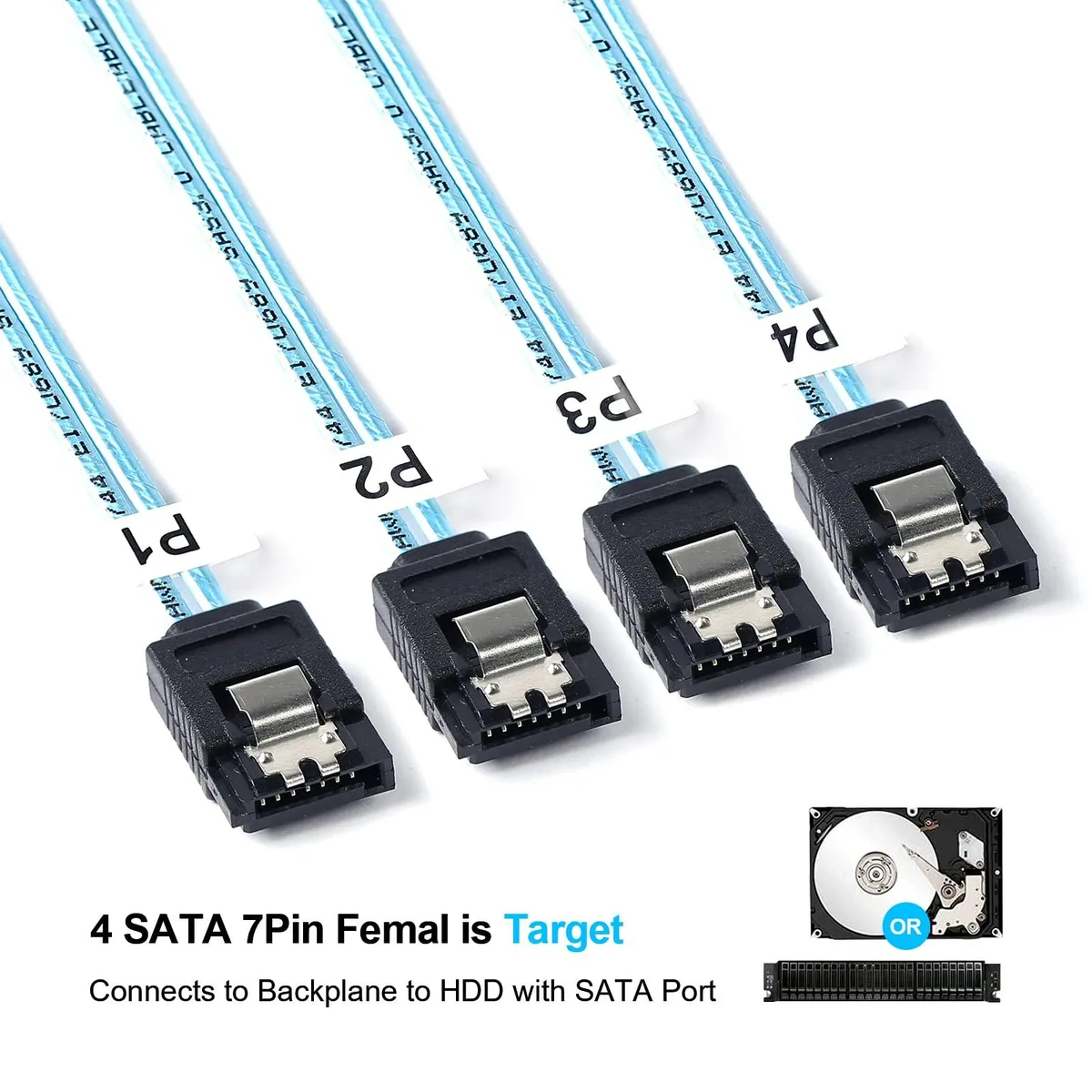

This two-pack provides a forward breakout cable that connects an internal Mini SAS SFF-8087 36-pin male port on a motherboard or SAS RAID controller to four SATA 7-pin female drives. Each cable supports 6 Gbps data transfer per drive using 30 AWG copper conductors with a braided jacket. The 3.3 ft length suits internal chassis routing for storage expansion.

Installation notes and common issues

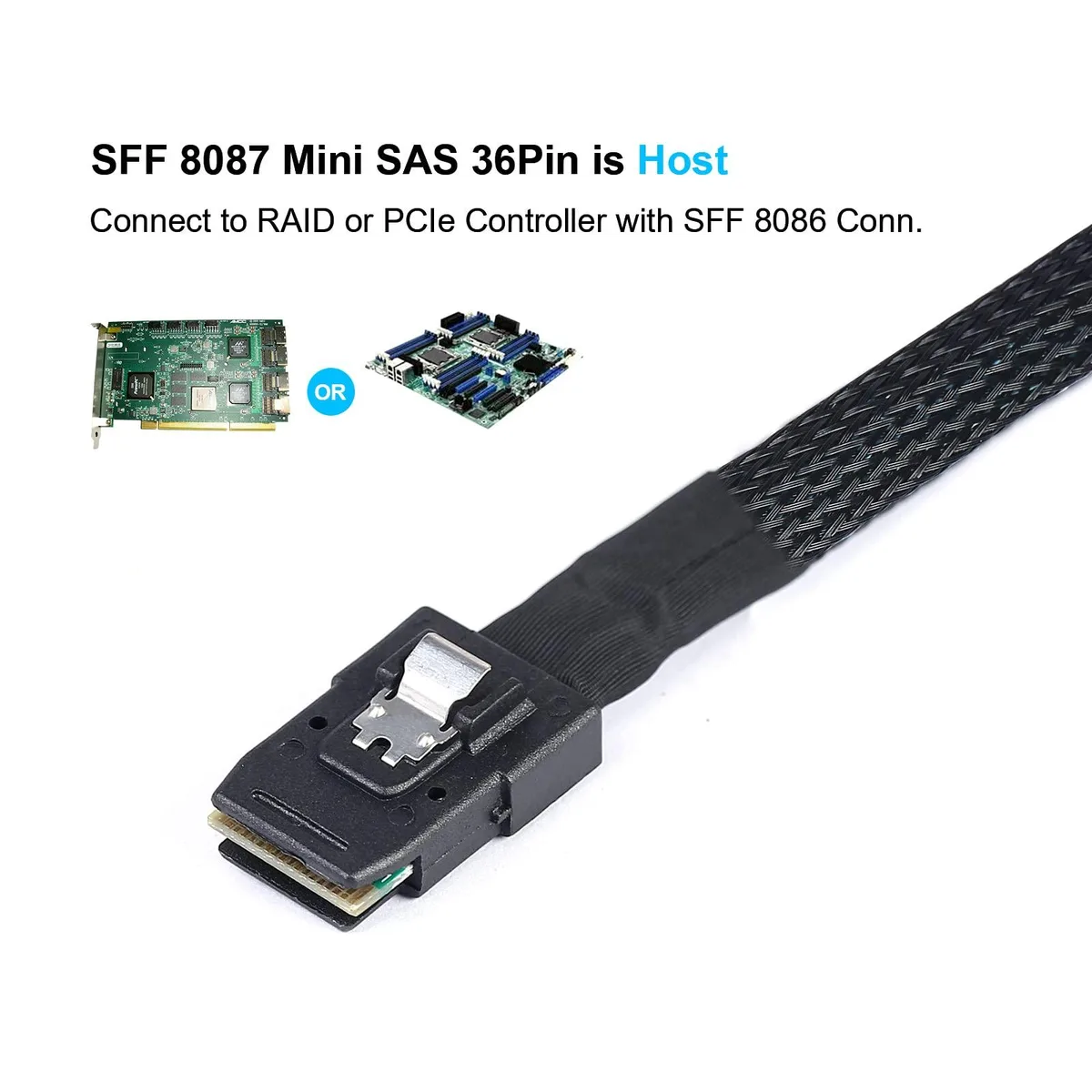

The SFF-8087 male connector features a locking latch for a secure link to the host controller, while each SATA target end also includes a latch. A critical constraint: do not plug the SFF-8087 end into a backplane, or the breakout will not function. Labels on the cable ends assist with routing and port identification during installation.

Suited for DIY storage expansion.

Builders adding up to four SATA SSDs or HDDs to a SAS HBA or PCIe controller will find this kit practical. It is unsuitable for scenarios where the Mini SAS 36-pin port resides on the backplane rather than the controller. Users needing 12 Gbps SAS-3 speeds or different cable lengths should consider other options.

Highlights

  • Connect up to four drives with one controller
  • 6 Gbps per drive supports fast storage throughput
  • Locking latches on both ends secure every connection
  • 30 AWG braided cables route easily in tight cases
  • Two 3.3 ft cables included for multi-drive setups

Specifications

BrandADCAUDX
ModelSFF-8087 to SATA 1M
TypeSAS to SATA, Mini SAS to SATA
ColorBlack+Blue
Length3.3
Speed6 gigabits_per_second
ConductorCopper
FeaturesMINI SAS SFF-8087 to SATA 1M

Questions about this item

How can I confirm the SFF-8087 to 4x SATA cable is working after connecting it to my RAID controller?

The operating system should detect each attached drive at the full 6 Gb/s link speed; verify in Device Manager or your RAID BIOS that all four SATA targets appear without errors.

What does the 2-pack include and is anything else required to install it?

You receive two 3.3 ft cables, each with a 36-pin SFF-8087 male connector on the host side and four SATA 7-pin female connectors on the target side; no extra parts are needed if your controller and drives have matching ports.

Which version should I choose if I need the 3.3 ft length for a standard server chassis?

Select the 3.3 ft (1 M) variant listed as the 2-pack; the alternative 0.5 m length is shorter and may not reach across larger enclosures.
