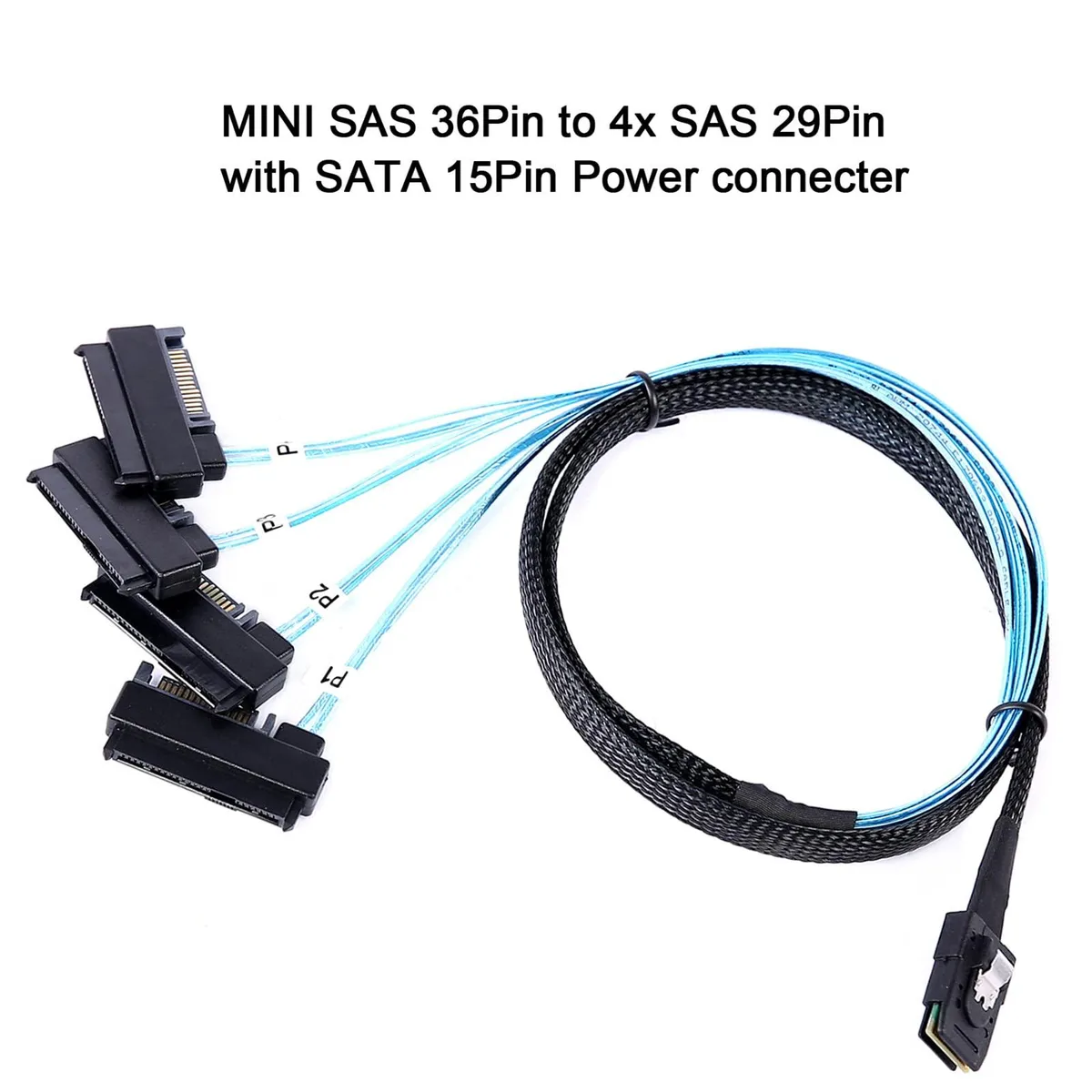

Two black and blue Mini-SAS SFF-8087 to four SFF-8482 cables with SATA power adapters, 0.5 m

Vszerda

Vszerda 2Pack Mini-SAS SFF-8087 to 4x SFF-8482 SAS Cable 0.5M with SATA Power Adapter

SKU CH-1C15-73A7C

Two-pack of 0.5 m Mini-SAS SFF-8087 to four SFF-8482 breakout cables with integrated SATA power adapters for 6 Gb/s drive connections

  • TypeMini-SAS Cables
  • ColorBlack/Blue
  • Length1.6
  • Speed6 gigabits_per_second
  • ConductorCopper
  • FeaturesSFF-8087 to SAS 0.5M
  • Connect up to four drives per cable using SFF-8087 to 4× SFF-8482 breakout
  • Each SFF-8482 connector includes SATA 7-pin data and 15-pin power adapter
  • 6 Gbps per drive transfer rate over 0.5 m copper conductors
  • 30 AWG flexible cables simplify routing inside the chassis
  • Two-cable pack provides eight total SFF-8482 connections for storage expansion

Two-pack internal SAS breakout cables

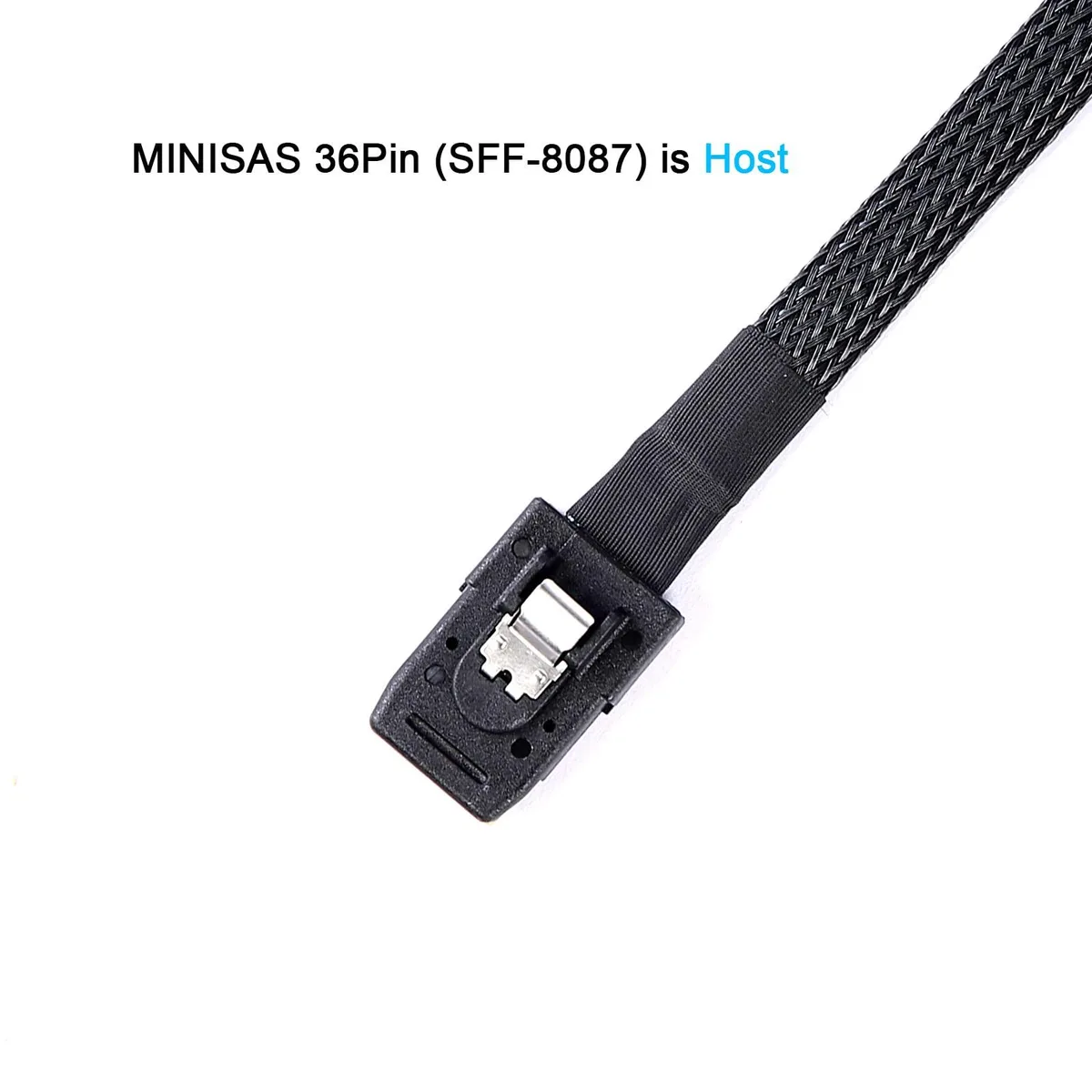

This two-pack provides two 0.5 metre Mini-SAS SFF-8087 to 4x SFF-8482 breakout cables for connecting a SAS HBA or RAID controller to four SAS or SATA hard drives. Each cable is designed for internal storage expansion in servers or workstations. The host end uses a 36-pin SFF-8087 male connector while each target end presents an SFF-8482 connector.

SATA power adapter integrated per drive

Every SFF-8482 connector includes a built-in SATA 7-pin data and 15-pin power adapter so each attached drive receives both signal and power from a single breakout lead. The cables are labelled to simplify routing and cable management inside the chassis. A separate SATA power supply cable must be attached to each adapter connector for the drives to operate.

6 Gb/s per drive transfer rate

The assembly supports a data transfer rate up to 6 Gb/s per connected drive using 30 AWG copper conductors. Note that the SFF-8087 host connector must attach to the controller side and not to a backplane; the breakout will not function if connected in reverse.

Highlights

  • Connect up to four drives per cable using SFF-8087 to 4× SFF-8482 breakout
  • Each SFF-8482 connector includes SATA 7-pin data and 15-pin power adapter
  • 6 Gbps per drive transfer rate over 0.5 m copper conductors
  • 30 AWG flexible cables simplify routing inside the chassis
  • Two-cable pack provides eight total SFF-8482 connections for storage expansion

Specifications

BrandADCAUDX
ModelMini SAS-009
TypeMini-SAS Cables
ColorBlack/Blue
Length1.6
Speed6 gigabits_per_second
ConductorCopper
FeaturesSFF-8087 to SAS 0.5M

Questions about this item

Will the SATA 15-pin power adapters on the 4x SFF-8482 connectors need periodic replacement?

The adapters are passive copper assemblies rated for 6 Gb/s; they have no moving parts or active electronics, so no scheduled replacement is required under normal use.

What throughput ceiling appears first when the 0.5 m SFF-8087 link runs continuously at 6 Gb/s per drive?

Each SFF-8482 breakout is specified at 6 Gb/s, so the per-drive SAS 6 Gb/s signalling rate is the limiting factor before cable length or conductor gauge becomes a bottleneck.

How much heat or noise does the 30 AWG copper cable assembly produce during all-day operation?

The cable is a passive 30 AWG copper assembly with no active components, so it generates negligible heat and zero audible noise regardless of duty cycle.
