Straight SlimSAS SFF-8654 to SFF-8654 ribbon cable, male-to-male, 3.28ft

Vszerda

Vszerda 24G SlimSAS SFF-8654 to SFF-8654 Cable 3.28ft

SKU CH-P5AF-VR912

SlimSAS SFF-8654 to SFF-8654 cable carries 24Gbps SAS and PCIe 4.0 over a 3.28ft 85-ohm 32AWG ribbon with 74-pin straight male connectors for servers and storage

  • TypeSAS
  • Color11#: Straight
  • Length3.28
  • Connector Number74
  • Terminal GenderMale-to-Male
  • Speed24 gigabits_per_second
  • 24Gbps data rate enables high-speed server storage
  • 85 Ohm impedance maintains signal integrity over 3.28ft
  • 74-pin high-density connector fits tight internal I/O slots
  • PCIe 4.0 support extends SAS bandwidth for modern workstations
  • 32AWG ribbon design allows flexible low-profile cable routing

Vszerda 24G SlimSAS SFF-8654 Cable

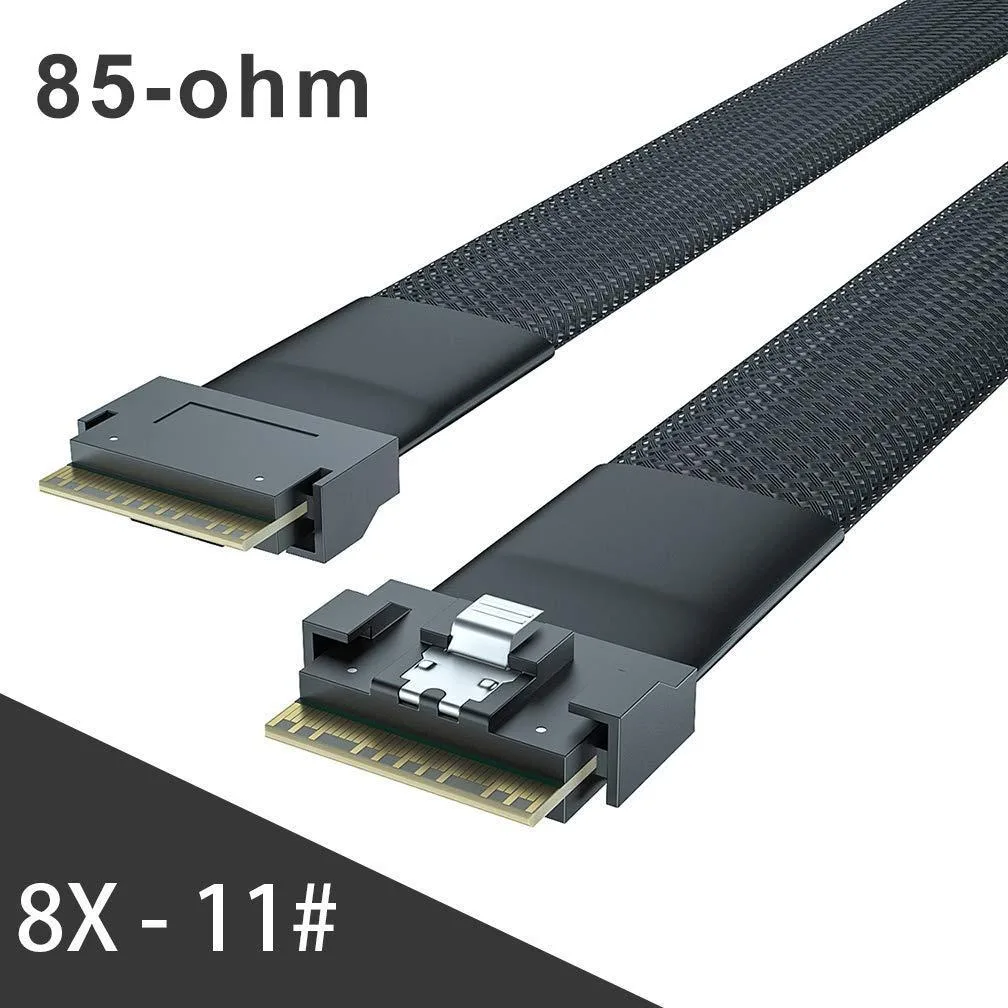

This Vszerda SlimSAS cable connects two SFF-8654 ports using a straight 11# plug design. It carries SAS signals at up to 24Gbps over a 3.28ft length with 85 Ohm impedance. The 32AWG ribbon construction supports 8i configurations for internal server and storage links. Compliant with the T10 Serial Attached SCSI standard extended to PCIe 4.0.

Suits dense server and workstation builds

Builders fitting high-density backplanes or add-in cards with SFF-8654 receptacles will use this cable for internal storage or PCIe 4.0 interconnects. The 74-pin high-density layout keeps signal integrity tight in cramped chassis. It is not for external connections, shielded environments requiring armoured cable, or links needing longer reach than 3.28ft.

Simple internal routing with straight plugs

The straight 11# plugs push into unshielded internal I/O connectors without angled clearance issues. Ribbon flexibility helps cable management in low-profile bays. Misalignment of the 74 pins during insertion can damage the connector; verify keying before applying force. Ensure both endpoints are SFF-8654, as other SlimSAS form factors will not mate.

Highlights

  • 24Gbps data rate enables high-speed server storage
  • 85 Ohm impedance maintains signal integrity over 3.28ft
  • 74-pin high-density connector fits tight internal I/O slots
  • PCIe 4.0 support extends SAS bandwidth for modern workstations
  • 32AWG ribbon design allows flexible low-profile cable routing

Specifications

Brand10Gtek
TypeSAS
Color11#: Straight
Length3.28
Connector Number74
Terminal GenderMale-to-Male
Speed24 gigabits_per_second
SpecificationsSAS
ShieldingHigh Speed
FeaturesHigh Speed

Questions about this item

Does my backplane or controller need an SFF-8654 74-pin port for this cable to connect?

Yes, each end terminates in a straight SFF-8654 plug with 74 pins, so the mating equipment must provide the same 74-pin SlimSAS receptacle.

Will this 24Gbps cable work with my existing PCIe 4.0 host bus adapter?

The cable is built to the T10 SAS standard and extended for PCIe 4.0 signalling at 85 Ohm impedance, matching the electrical requirements of a PCIe 4.0 HBA.

How can I verify the link is running at the rated 24Gbps after installation?

Check the HBA or RAID controller firmware dashboard — it will report the negotiated link speed per port, which should show 24Gbps when the cable, drives and controller all support that rate.
