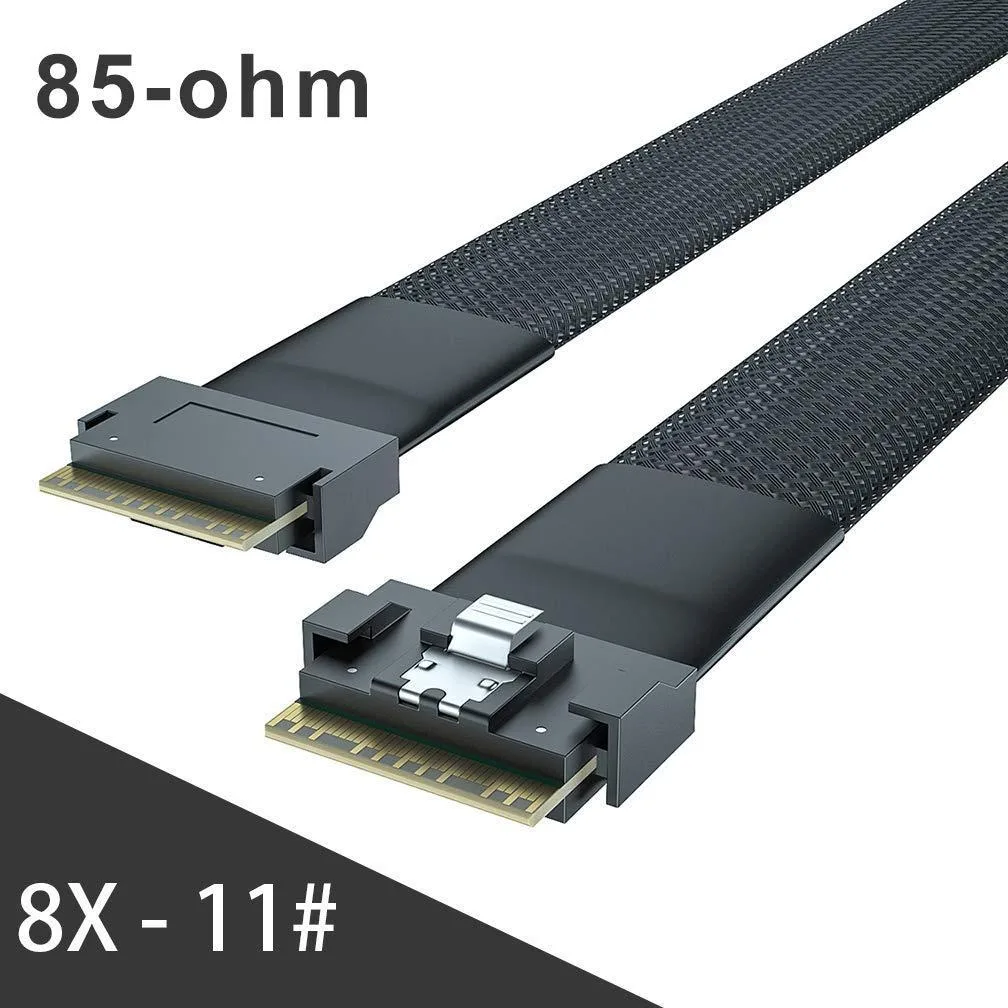

Thin flat ribbon cable with straight 74-pin SFF-8654 connectors on both ends

Vszerda

Vszerda 24G SlimSAS SFF-8654 to SFF-8654 Cable 0.75m

SKU CH-THAZ-ER939

A 0.75 m SlimSAS SFF-8654 cable with 74-pin male connectors supports 24 Gbps SAS data rates at 85 Ohm impedance for internal server and storage links

  • TypeSAS
  • Length0.75
  • Connector Number74
  • Connector DetailSff-8654 to Sff-8654 8i
  • Terminal GenderMale-to-Male
  • Speed24 gigabits_per_second
  • 24 Gbps data rate for high-speed storage performance
  • 85 Ohm impedance and 32 AWG construction maintain signal integrity
  • 74-pin high-density SFF-8654 connectors enable compact internal cabling
  • PCIe 4.0 compatible design supports modern server and workstation platforms
  • 75 m length suits short-run rack and chassis connections

SlimSAS SFF-8654 24 Gbps internal cable

This Vszerda SlimSAS cable connects two SFF-8654 8i ports in a straight male-to-male arrangement. It is built to the T10 Serial Attached SCSI standard and extended for PCIe 4.0 operation at 24 Gbps. The 74-pin high-density connectors use 32 AWG ribbon construction with 85 Ohm impedance for signal integrity. Length is 0.75 metres.

Suits dense server and storage chassis needing 8i

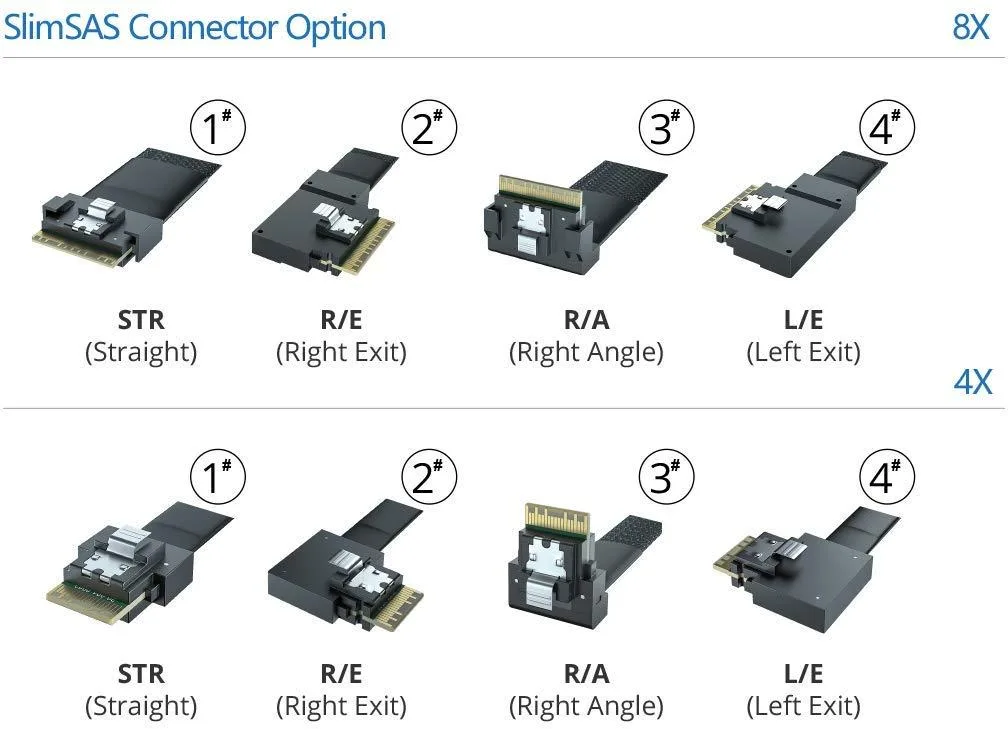

Installers fitting slimline backplanes, RAID controllers or JBOD expanders in 1U or 2U enclosures will value the low-profile ribbon format. Builds that require right-angle plugs, external bulkhead connectors or longer runs should select a different cable. The 74-pin gender and pin-out are fixed, so adapters cannot change the endpoint geometry.

0.75 metre reach between paired 8i ports

The fixed length of 0.75 metres determines whether the cable spans the intended device spacing. Measure the internal routing path before ordering; no slack or extension is included. If the chassis layout demands a longer or shorter assembly, this specific part will not fit.

Highlights

  • 24 Gbps data rate for high-speed storage performance
  • 85 Ohm impedance and 32 AWG construction maintain signal integrity
  • 74-pin high-density SFF-8654 connectors enable compact internal cabling
  • PCIe 4.0 compatible design supports modern server and workstation platforms
  • 75 m length suits short-run rack and chassis connections

Specifications

Brand10Gtek
TypeSAS
Length0.75
Connector Number74
Connector DetailSff-8654 to Sff-8654 8i
Terminal GenderMale-to-Male
Speed24 gigabits_per_second
SpecificationsSAS
ShieldingData Transfer
FeaturesData Transfer

Questions about this item

What clearance does the 74-pin straight SFF-8654 plug need inside the chassis?

The ribbon cable uses a straight 74-pin plug; allow enough depth for the connector body and the 32AWG ribbon to sit flat against the board.

Which orientation do the male-to-male SFF-8654 ends need when plugging into an 8i backplane?

Both ends are keyed male SFF-8654 8i; align the notch on each plug with the receptacle key before pressing straight in — forcing it sideways bends pins.

When should the 85-ohm 32AWG ribbon be replaced in a 24Gbps SAS link?

Replace the cable if link errors rise, if the ribbon shows kinks or pin corrosion, or after any chassis rework that stressed the straight plugs.
