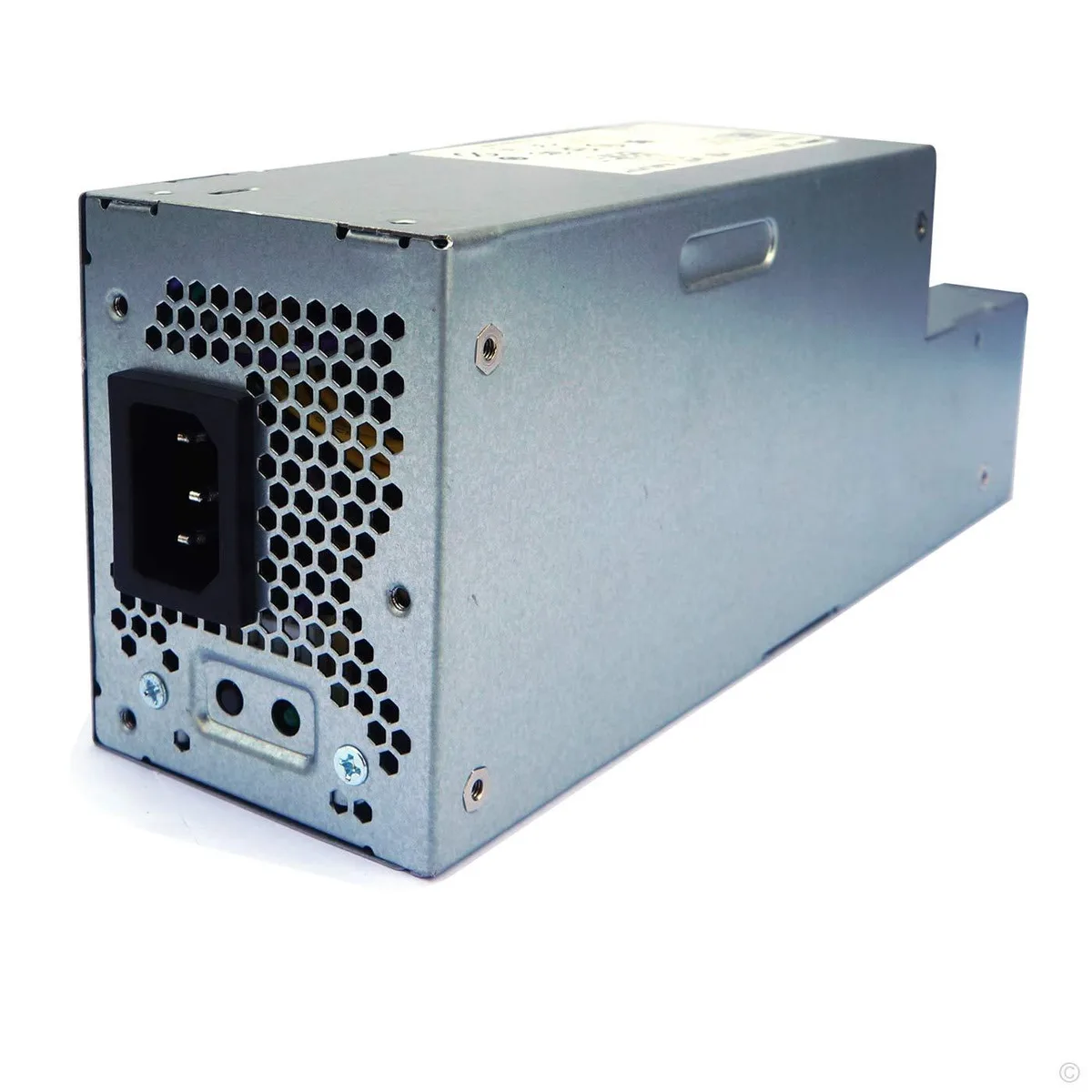

Rectangular metal power supply unit with cooling vents and multiple cable connectors

Vszerda

Vszerda 235W power adapter Dell OptiPlex 760 780 960 980 SFF

SKU CH-G33Z-ZJH17

A 235 W replacement power supply for Dell OptiPlex 760, 780, 960 and 980 small-form-factor systems with 24-pin mini ATX, 4-pin ATX, SATA and slim-line SATA connectors

  • 235W output powers Dell OptiPlex SFF systems
  • 100-240V input works worldwide without a voltage switch
  • Mini ATX plus 4-pin CPU and SATA connectors included
  • Compact 3.1 x 9.1 x 3.6 in fits small-form-factor chassis
  • Replaces PW116 WU136 FR610 and other Dell part numbers

Compatible Dell OptiPlex SFF models

This 235W power adapter is built for Dell OptiPlex 760 780 960 980 Small Form Factor systems only. It replaces original part numbers including PW116 WU136 FR610 6RG54 MPF5F N6D7N RM112 67T67 R225M R224M H255T H235P-00 L235P-01 D235ES-00 F235E-00. It does not fit MT DT or USFF chassis variants.

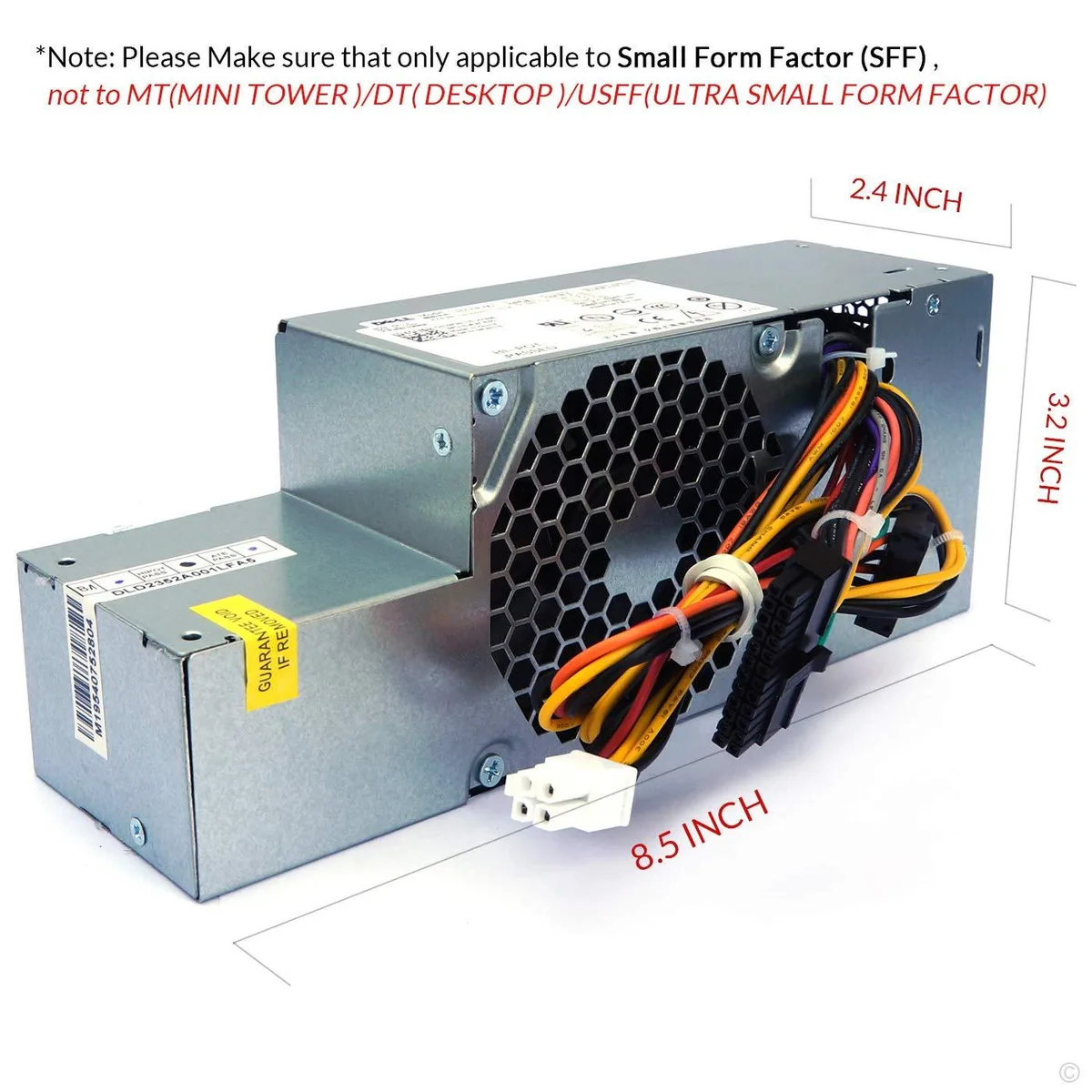

Form factor and connector layout

The unit uses a Mini ATX 24-pin main connector a 4-pin ATX auxiliary connector one SATA power plug and one Slim Line SATA plug. This specific connector set and the 3.1 x 9.1 x 3.6 in dimensions determine whether it will install in your SFF case.

Output capacity and headroom

Maximum continuous output is 235W across the 100-240V 4.5A 50-60Hz input range. It comfortably powers the original SFF platform CPU integrated graphics and a few SATA drives. Headroom runs out when adding a discrete graphics card or multiple high-draw peripherals.

Highlights

  • 235W output powers Dell OptiPlex SFF systems
  • 100-240V input works worldwide without a voltage switch
  • Mini ATX plus 4-pin CPU and SATA connectors included
  • Compact 3.1 x 9.1 x 3.6 in fits small-form-factor chassis
  • Replaces PW116 WU136 FR610 and other Dell part numbers

Specifications

No published specifications for this item yet.

Questions about this item

What does the 235 W rating mean for a Dell OptiPlex SFF?

It is the maximum continuous power the unit can deliver to the motherboard, CPU, drives and any add-in cards inside a small-form-factor OptiPlex 760, 780, 960 or 980.

What AC input range does the adapter accept and what does that cap in practice?

The supply auto-ranges from 100 V to 240 V at 50–60 Hz, so it works on any mains voltage worldwide without a switch.

What physical space and mounting does the 3.1 × 9.1 × 3.6 in unit need?

It fits the proprietary SFF chassis used by the OptiPlex 760, 780, 960 and 980; it will not fit MT, DT or USFF cases.
