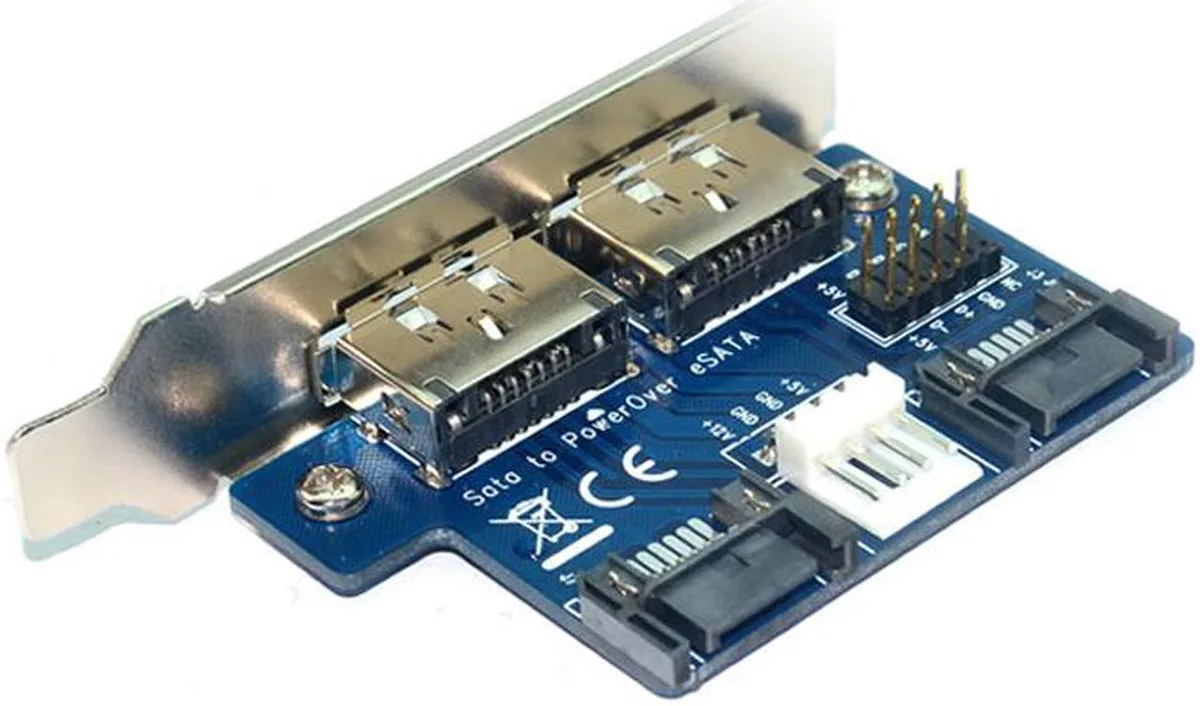

A metal bracket card with two 11-pin eSATAp ports and internal SATA connectors

Vszerda

Vszerda 2 Port SATA to eSATAp Bracket Card

SKU CH-ZEFH-M2CYG

Converts two internal SATA ports into external eSATAp connectors delivering 12V and 5V power plus USB 2.0 data up to 480 Mbps

  • Adds two external eSATAp ports from internal SATA
  • Supplies 12V and 5V power over eSATA for drives
  • Enables USB 2.0 data up to 480 Mbps via 9-pin header
  • Powered by SATA 15-pin from PSU with included adapter
  • Plug-and-play expansion with no driver installation required

Two-Port eSATAp Expansion for Desktops

This bracket card adds two external eSATAp ports to a desktop by converting internal SATA connections. It suits builders who want to attach eSATA or USB 2.0 storage without opening the case each time. The board draws 12 V and 5 V power from a SATA 15-pin connector so attached 2.5" or 3.5" drives receive power directly from the port. No driver installation is required for operation.

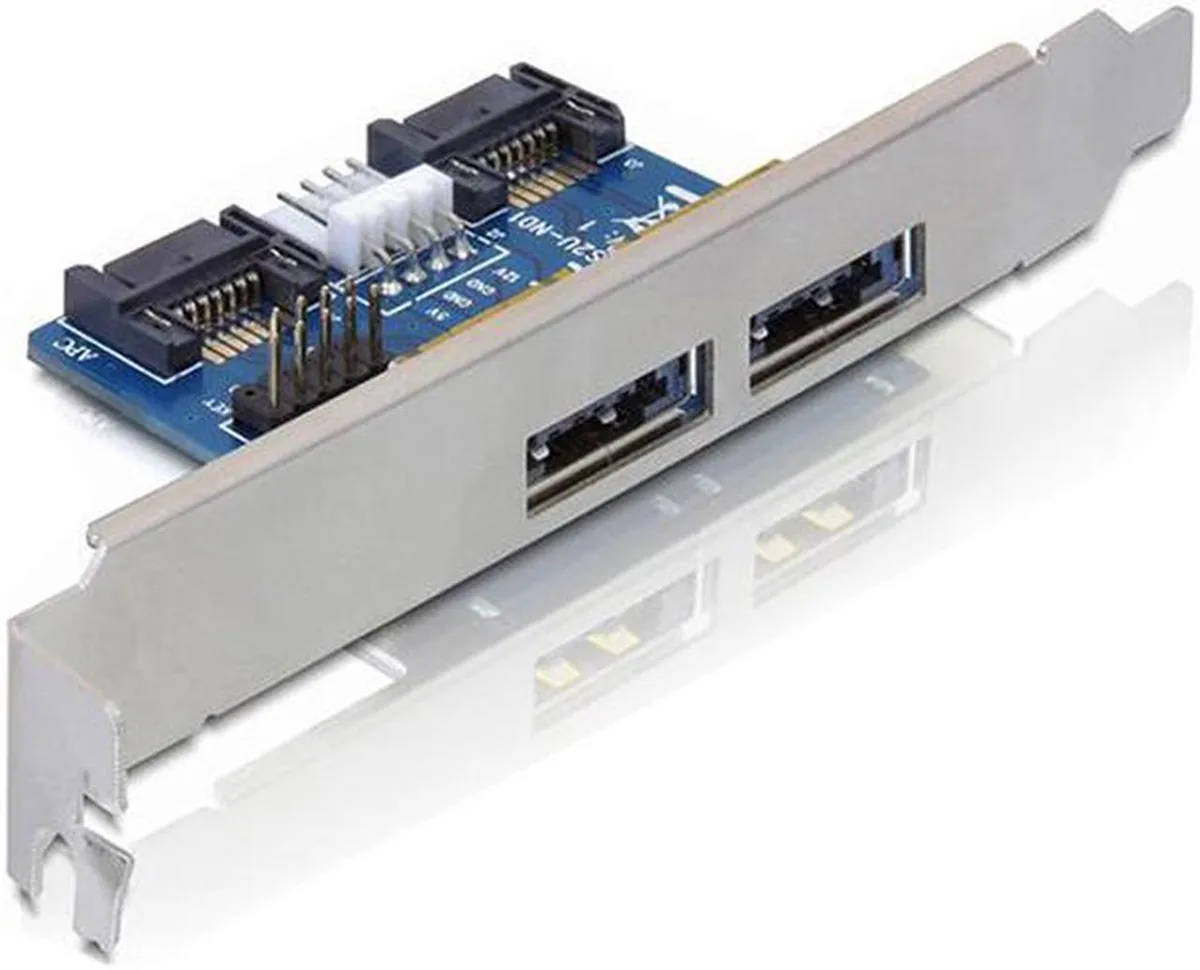

Full-Height Bracket with Dual Headers

A standard full-profile bracket secures the card in a rear expansion slot. Two internal SATA 7-pin cables (sold separately) link the board to the motherboard or controller. A 9-pin USB header cable must be plugged into the motherboard for USB 2.0 data transfer up to 480 Mbps. The included SATA 15-pin to 4-pin adapter connects to the PSU to enable the 11-pin combo ports’ power-output capability.

Verify Headers and Cables Before Buying

Your motherboard needs a free USB 9-pin header and at least two SATA ports for the required cables. The power adapter must reach the PSU, so check cable routing space inside the chassis. Builders using only eSATA devices without USB still need the header connected for the combo ports to function. Systems lacking spare SATA ports or a USB header cannot use this card.

Highlights

  • Adds two external eSATAp ports from internal SATA
  • Supplies 12V and 5V power over eSATA for drives
  • Enables USB 2.0 data up to 480 Mbps via 9-pin header
  • Powered by SATA 15-pin from PSU with included adapter
  • Plug-and-play expansion with no driver installation required

Specifications

No published specifications for this item yet.

Questions about this item

What data rate does the USB 2.0 part of the eSATAp port deliver?

The USB 2.0 channel runs at up to 480 Mbps when the 9‑pin header is connected to the motherboard.

What internal connectors and cables are required to make the bracket work?

Two SATA 7‑pin data cables, a SATA 15‑pin to SP4 4‑pin power adapter from the PSU, and a USB 9‑pin header cable to the motherboard are all mandatory.

How is the card installed and which step is often missed?

Fit the full‑profile bracket into a rear slot, connect the two SATA data cables to the motherboard, plug the power adapter into the PSU, and attach the USB 9‑pin header — omitting the header disables USB 2.0.
