Two black and blue Mini-SAS SFF-8087 to four right-angle SATA breakout cables, 3.3ft

Vszerda

Vszerda 2-Pack Mini-SAS SFF-8087 to 4×SATA 90° 3.3ft

SKU CH-XPVF-6CFRQ

Two SFF-8087 Mini-SAS to four SATA 90° breakout cables, each 3.3 ft, connect a SAS controller to four drives at 6 Gb/s per drive

  • TypeMini-SAS Cables
  • ColorBlack/Blue
  • Length3.3
  • Connector DetailMini Sas Sff-8087 to Sata
  • Speed6 gigabytes_per_second
  • ConductorCopper
  • 2-pack gives two ready-to-use SAS-to-SATA links
  • 3 ft length reaches drives in full-tower cases
  • 90° right-angle SATA plugs fit tight backplane bays
  • Locking latches on both ends prevent accidental disconnects
  • 6 Gb/s per drive supports modern SSD and HDD speeds

Vszerda 2-Pack Mini-SAS SFF-8087 Breakout Cable

This two-pack provides internal Mini-SAS SFF-8087 to 4×SATA forward breakout cables for connecting a SAS RAID controller or HBA to four SATA hard drives or SSDs. Each 3.3ft cable features a 36-pin male Mini-SAS connector with locking latch on the host side and four right-angle 7-pin female SATA connectors on the target side. The thin 30 AWG braided construction aids routing inside chassis. They suit builders expanding storage via a SAS controller.

Build integration: controller link

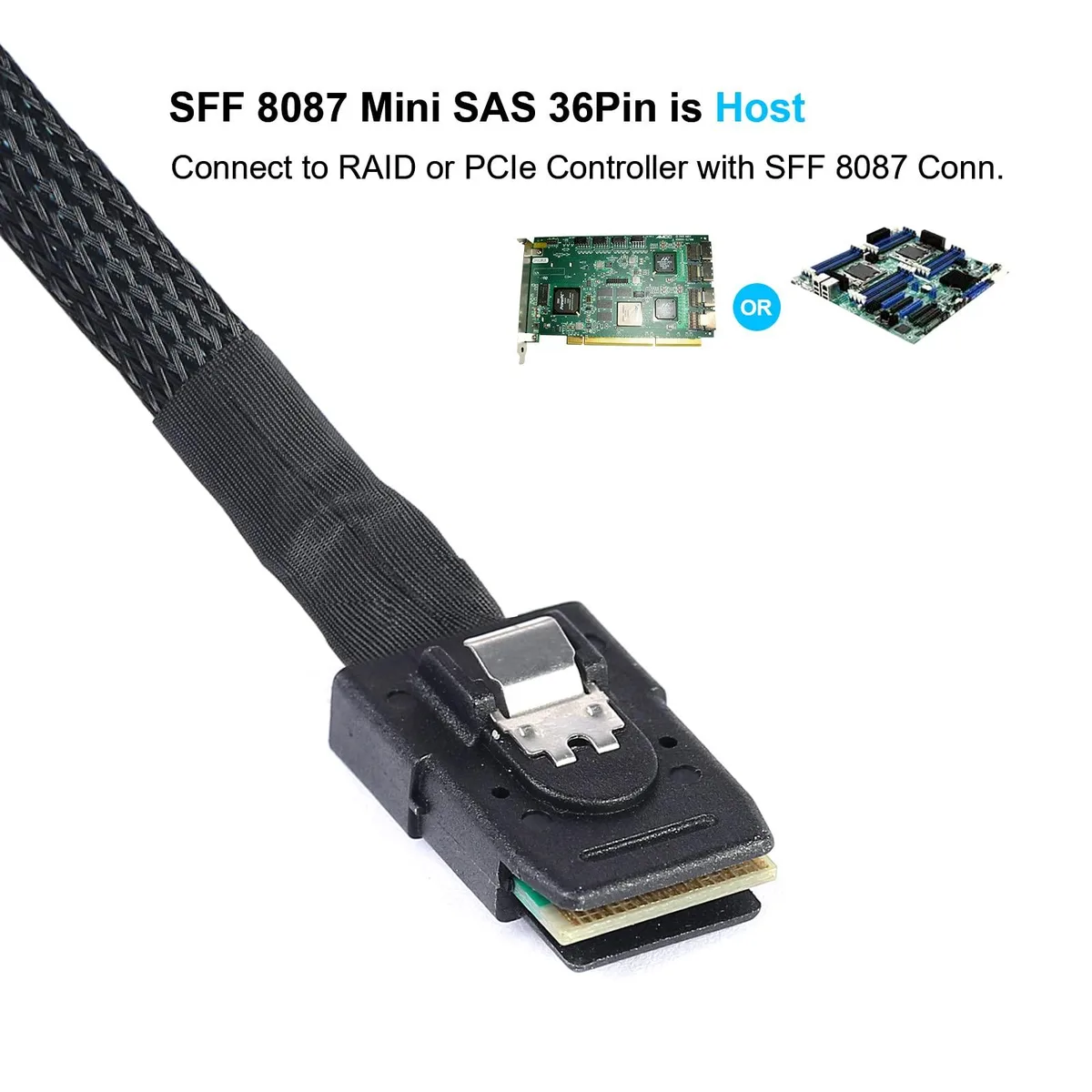

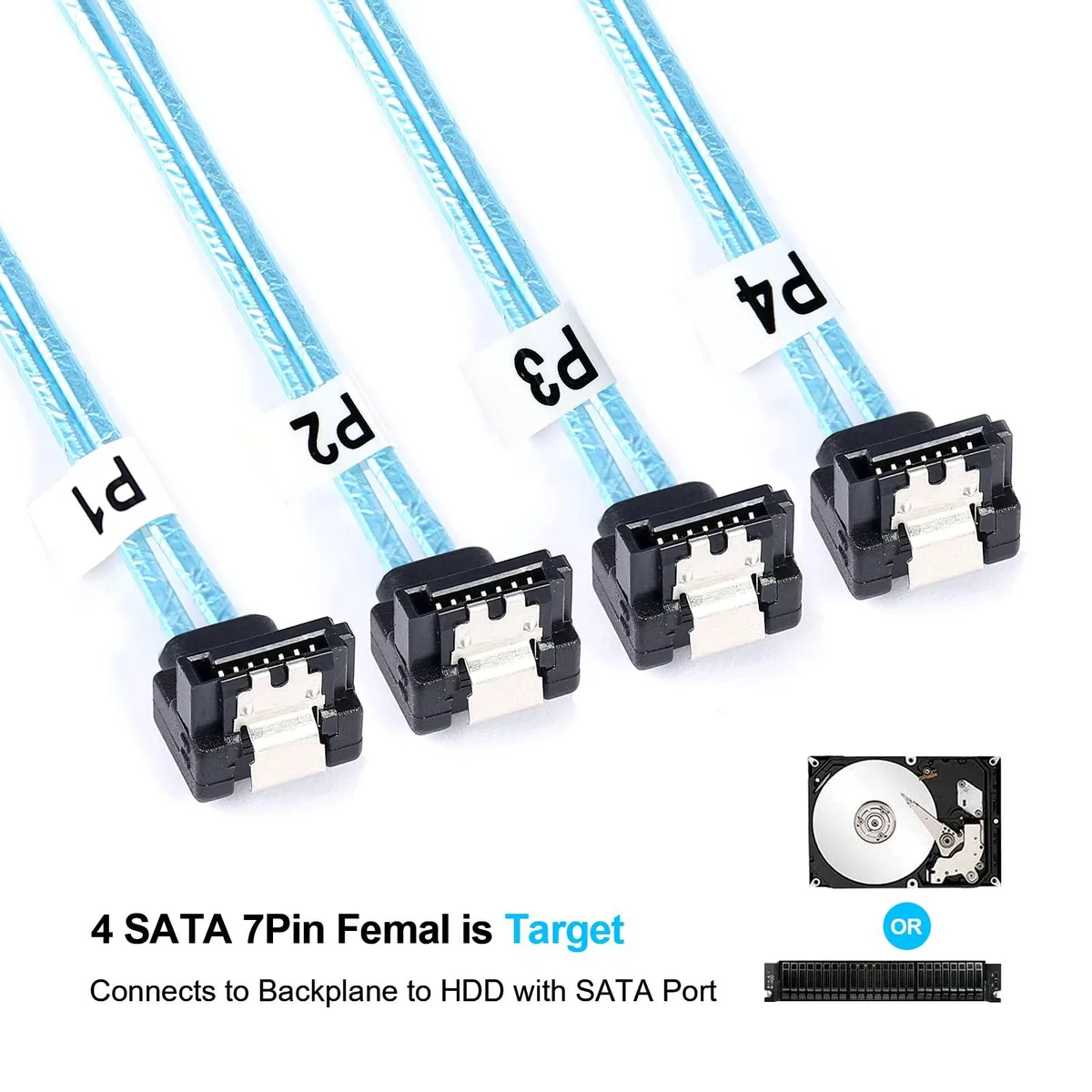

The SFF-8087 male end plugs directly into a compatible SAS HBA, RAID card or motherboard port, while the four labelled SATA tails attach to drive backplanes or individual HDDs and SSDs. Right-angle 90° SATA heads reduce cable strain in tight drive bays and improve airflow compared to straight connectors. Locking latches on both ends secure the link against vibration. No additional adapters are required for standard SATA targets.

Suits SAS-to-SATA arrays.

Ideal for DIY and professional installers adding up to four SATA drives per cable to a SAS controller. The forward breakout design means the SFF-8087 end is the host — do not connect it to a backplane expecting target behaviour. Buyers needing Mini-SAS to Mini-SAS links, 12Gbps SAS device support, or external eSATA connectivity should look at different cable types.

Highlights

  • 2-pack gives two ready-to-use SAS-to-SATA links
  • 3 ft length reaches drives in full-tower cases
  • 90° right-angle SATA plugs fit tight backplane bays
  • Locking latches on both ends prevent accidental disconnects
  • 6 Gb/s per drive supports modern SSD and HDD speeds

Specifications

BrandADCAUDX
ModelMini SAS-020
TypeMini-SAS Cables
ColorBlack/Blue
Length3.3
Connector DetailMini Sas Sff-8087 to Sata
Speed6 gigabytes_per_second
ConductorCopper
FeaturesSFF-8087 to SATA 90 Degree

Questions about this item

How long is each SFF-8087 to 4×SATA breakout cable in the 2-pack?

Each cable is 3.3 ft (1 m) long, built with 30 AWG thin conductors and a braided weave for easy routing inside a chassis.

What is the maximum data rate per SATA drive when connected through the SFF-8087 host port?

The breakout supports up to 6 Gbps per SATA target drive, while the Mini-SAS host side is rated for 12 Gbps aggregate bandwidth.

Which controller or motherboard connector is required to use these cables?

You need an internal Mini-SAS SFF-8087 36-pin male port on a SAS HBA, RAID controller or motherboard to plug the host end into.
