Small black box with HDMI ports, 3.5 mm jack and optical audio output

Vszerda

Vszerda 2×2 HDMI 2.0 Switch Splitter Audio Extractor 4K@60Hz SPDIF TOSLINK 3.5mm 5.1ch HDR10

SKU CH-0P5X-DPEDV

Routes two HDMI 2.0 sources to two displays at 4K 60 Hz with 5.1-channel optical and 3.5 mm audio extraction

  • Routes two sources to two displays simultaneously
  • 4K 60 Hz HDR10 with 18 Gbps bandwidth
  • Downscaling outputs 4K and 1080p at the same time
  • Optical and 3.5 mm audio extraction with 5.1-channel support
  • IR remote or front-panel switching with signal amplification

2×2 HDMI 2.0 matrix for dual-source setups

This HDMI 2.0 matrix switch connects two source devices to two displays simultaneously. It suits home-theatre or gaming installations that need both screens showing the same 4K signal at once. The unit handles switching by front-panel button or the included IR remote.

Metal chassis with SPDIF and 3.5 mm audio breakout

A compact metal enclosure houses the switching logic and provides both optical TOSLINK and 3.5 mm stereo outputs for external audio systems. HDMI connectors are standard Type A; the audio ports allow a soundbar or AV receiver to stay connected while the video routes to the displays. No external power supply is mentioned in the data.

HDMI 2.0b bandwidth caps 4K at 60 Hz with 18 Gbps

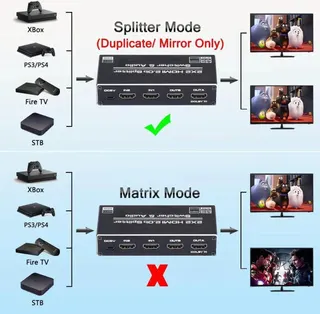

The HDMI 2.0b interface limits total throughput to 18 Gbps, so 4K at 60 Hz 4:4:4 is the ceiling; higher refresh rates or 8K are not possible. HDCP 2.2 compliance protects premium content, but the matrix only mirrors the same image to both outputs — independent multi-stream operation is not supported. Cable runs beyond 10 metres at 4K or 20 metres at 1080p may lose signal integrity.

Highlights

  • Routes two sources to two displays simultaneously
  • 4K 60 Hz HDR10 with 18 Gbps bandwidth
  • Downscaling outputs 4K and 1080p at the same time
  • Optical and 3.5 mm audio extraction with 5.1-channel support
  • IR remote or front-panel switching with signal amplification

Specifications

No published specifications for this item yet.

Questions about this item

What does the HDMI 2.0b interface cap the video bandwidth at in practice?

The HDMI 2.0b interface caps the video bandwidth at 18Gbps with a TMDS clock up to 600MHz, enabling 4K@60Hz 4:4:4 and HDR10.

What physical connections does the unit need for power and mounting?

It needs two HDMI sources, two HDMI displays, an optical TOSLINK cable or 3.5mm jack for extracted audio, and a USB power cable; the compact case sits on a shelf with no brackets required.

How is the switch installed, and which step do users often miss?

Connect sources to the two inputs, displays to the two outputs, audio to TOSLINK or 3.5mm, power via USB, then press the front button or use the IR remote to select the active input for each output.
