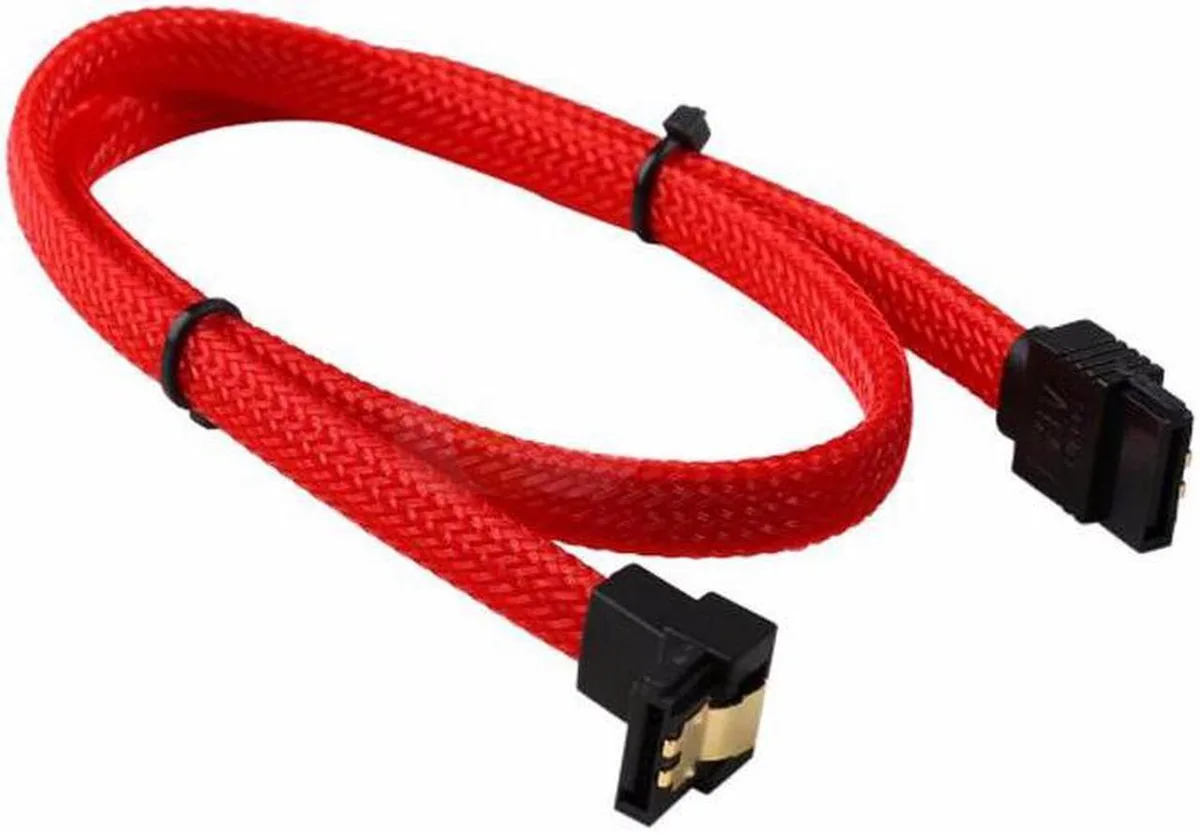

Red braided SATA cable with 90 and 180 degree locking connectors

Vszerda

Vszerda 18 inch SATA 3.0 cable 90 to 180 degree latch locking red sleeved braided net jacket

SKU CH-AZ0D-E3DT7

18-inch SATA 3.0 cable with 90-to-180-degree locking connectors and red braided sleeve for tidy internal routing

  • 6 Gbps throughput backed by SATA 3.0 specification
  • 90-to-180-degree connectors ease routing in tight cases
  • Locking latches on both ends prevent accidental disconnection
  • 26 AWG tinned copper conductors ensure reliable signal integrity
  • Red braided nylon jacket adds durability and clean aesthetics

Cable purpose and fit

This 18 inch SATA 3.0 cable connects a motherboard or host controller to an internal hard drive or optical drive. The 90 degree to 180 degree connector orientation helps route the cable in tight spaces around other components. Locking latches on both ends prevent accidental disconnection during transport or vibration. It is suited for builders who need a secure, angled link for a single drive.

Thermals noise and power

The cable carries only data signals and draws no external power, so it adds no heat or noise to the system. Its 26AWG tinned copper conductors support the SATA 3.0 specification up to 6.0Gbps while remaining passive. The red nylon braided jacket protects the wires from abrasion without restricting airflow around nearby parts. Actual throughput depends on the speed rating of the connected drive and controller.

Build integration needs

The 18 inch length reaches most drive bays in standard ATX cases when routed behind the motherboard tray. Each end uses a 7 pin latching SATA receptacle with an L type key that matches the port on the drive and motherboard. The angled plug clears tall heatsinks or large graphics cards that would block a straight connector. The cable does not supply power, so a separate SATA power lead from the PSU is still required for the drive.

Highlights

  • 6 Gbps throughput backed by SATA 3.0 specification
  • 90-to-180-degree connectors ease routing in tight cases
  • Locking latches on both ends prevent accidental disconnection
  • 26 AWG tinned copper conductors ensure reliable signal integrity
  • Red braided nylon jacket adds durability and clean aesthetics

Specifications

No published specifications for this item yet.

Questions about this item

How do I fit the 90 degree end in a tight case?

Route the 90 degree plug toward the motherboard edge so the latch clicks without forcing the cable upward; the 180 degree end goes straight into the drive.

Will the red braided jacket wear out?

The nylon fibre jacket is UL listed and RoHS compliant; it resists abrasion and does not need replacement under normal use.

What limits transfer speed on a fast SSD?

The cable supports SATA 3.0 up to 6.0 Gbps, but actual throughput is capped by the drive and controller ratings.
