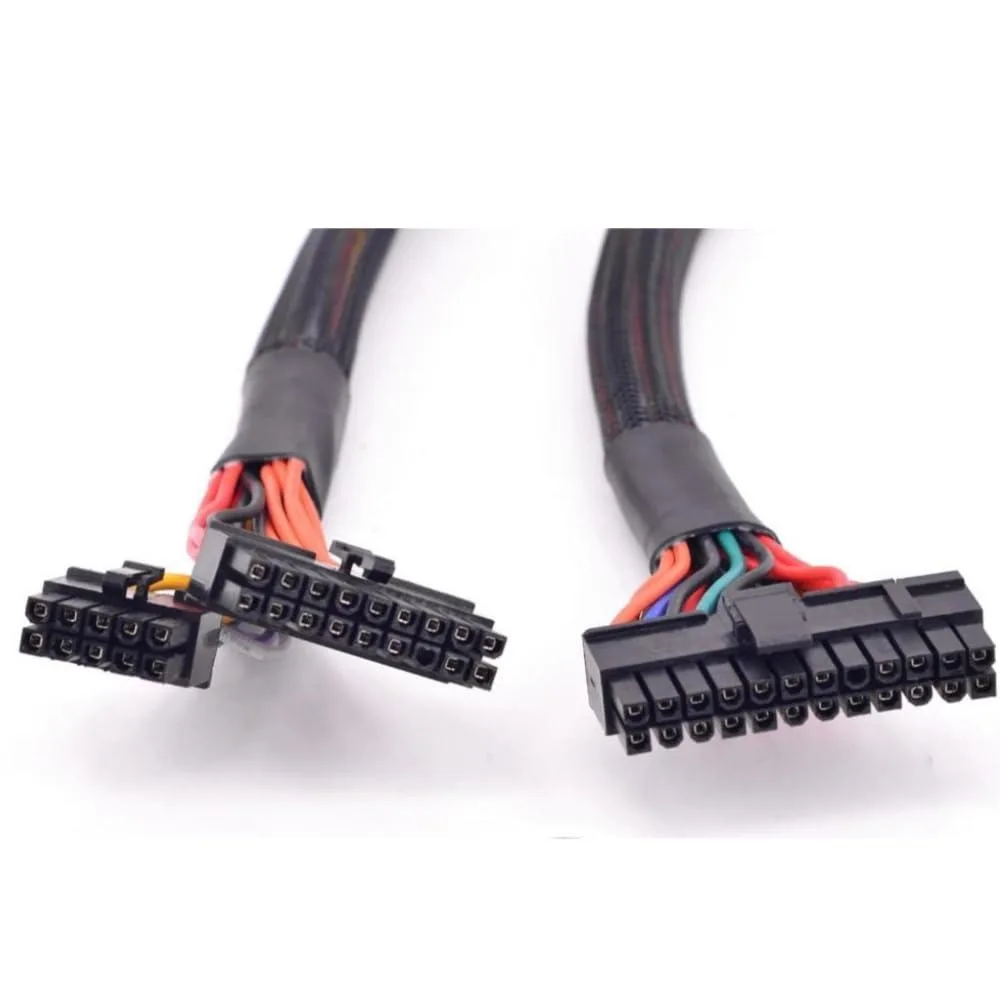

Black sleeved ATX adapter cable with 18-pin and 10-pin connectors merging into a 24-pin plug, 63 cm long

Vszerda

Vszerda 18+10 to 24 Pin ATX Cable 63 cm Black

SKU CH-03P6-9G5YZ

Converts Corsair AX and Seasonic 18+10 pin PSU connectors to a standard 24 pin ATX motherboard plug using 18 AWG wire over 63 cm

  • ColorBlack
  • Converts 18+10 pin PSU output to standard 24-pin ATX motherboard connector
  • 63 cm sleeved cable with 18 AWG tin-coated copper conductors
  • Designed for Corsair AX 650/750/760/850/860 (excludes AX1200)
  • Compatible with Seasonic PSUs featuring 18+10 pin modular ports
  • Works with all motherboards that use a 24-pin ATX power socket

Targeted PSU adapter

This adapter cable converts an 18 pin and 10 pin modular PSU connector into a standard 24 pin ATX motherboard plug. It is built for owners of Corsair AX 650, 750, 760, 850 or 860 units and compatible Seasonic power supplies that expose the same dual-port layout. The cable is not suitable for RMx, RMi, SF or HX series units.

Thermals and power

The cable uses 1007-18AWG tin-coated copper conductors rated for the power delivery of the listed AX and Seasonic models. No active cooling or additional power draw is introduced by the adapter itself. Normal operation adds no audible noise beyond the existing PSU fan profile.

Build integration

At 24.8-inch (63cm) the sleeved black cable reaches most motherboard ATX sockets in typical chassis layouts. One 18 pin and one 10 pin connector occupy two modular ports on the PSU side, freeing no extra ports but consolidating the motherboard power into a single 24 pin plug. Verify your PSU model and modular port configuration before installation to avoid damage.

Highlights

  • Converts 18+10 pin PSU output to standard 24-pin ATX motherboard connector
  • 63 cm sleeved cable with 18 AWG tin-coated copper conductors
  • Designed for Corsair AX 650/750/760/850/860 (excludes AX1200)
  • Compatible with Seasonic PSUs featuring 18+10 pin modular ports
  • Works with all motherboards that use a 24-pin ATX power socket

Specifications

Brandlilila-ree
Model18 Pin + 10 Pin to 24 Pin
ColorBlack

Questions about this item

How do I plug the 18 pin and 10 pin connectors into my Corsair AX PSU without reversing them?

Align each connector with its keyed port on the PSU; the 18 pin and 10 pin sockets are physically different so they only fit one way, then push until the latches click before routing the 63 cm cable to the motherboard.

Will the 18 AWG wires need replacement after a few years of continuous load?

The 1007-18AWG tin-coated copper conductors are rated for the PSU's maximum output and do not degrade under normal indoor use, so no scheduled replacement is required.

At what point does the 63 cm length become the limiting factor in a large case?

In full-tower builds the 63 cm reach may fall short between a bottom-mounted PSU and a top-edge 24 pin motherboard header, forcing a reroute or a different cable.
