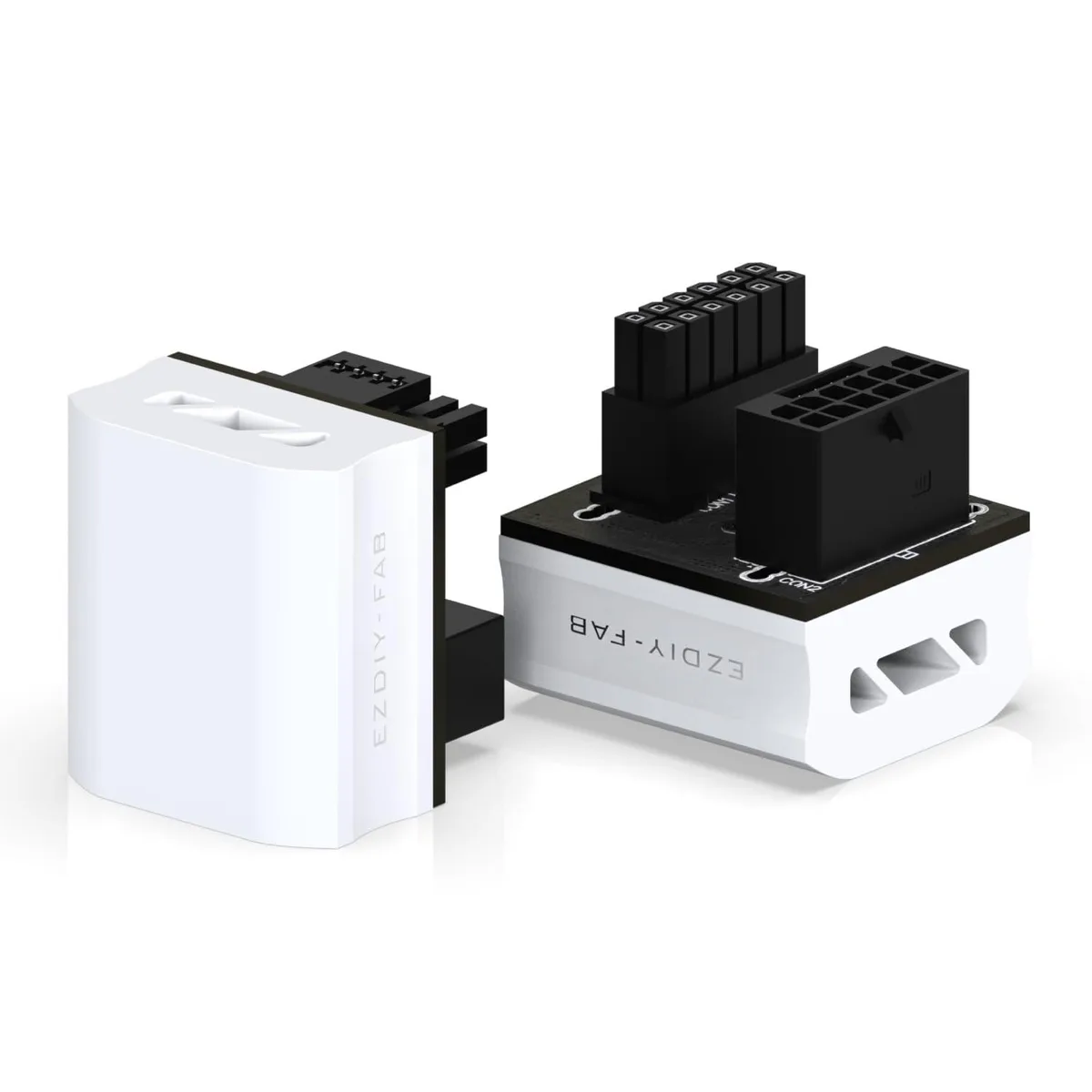

White 12VHPWR 12+4 pin 180 degree angled power adapter with aluminium heatsink

Vszerda

Vszerda 12VHPWR 12+4 Pin 180° Adapter White

SKU CH-K16F-Z8F06

White 12+4 pin adapter angles the GPU power cable 180 degrees so the side panel clears the connector, supporting 600 W delivery

  • Strengthened PCB avoids wire bending for full terminal contact

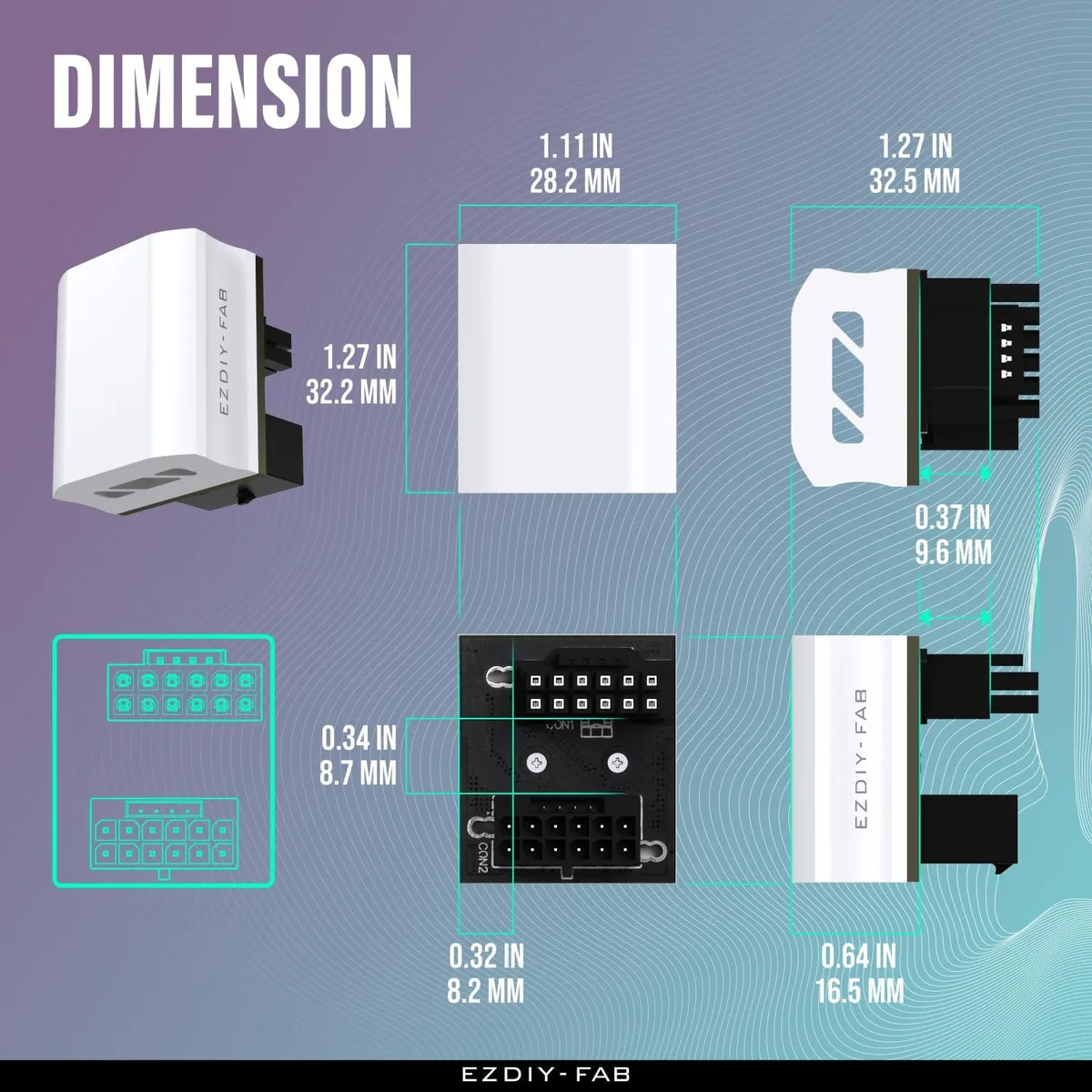

  • Fits cases with 26 mm clearance between side panel and graphics card
  • Alloy copper terminals deliver stable conductivity under high load
  • Aluminium heat sink with ventilation holes supports 600 W operation
  • 180-degree STD connector suits compact builds with limited space

12VHPWR 180° Adapter White

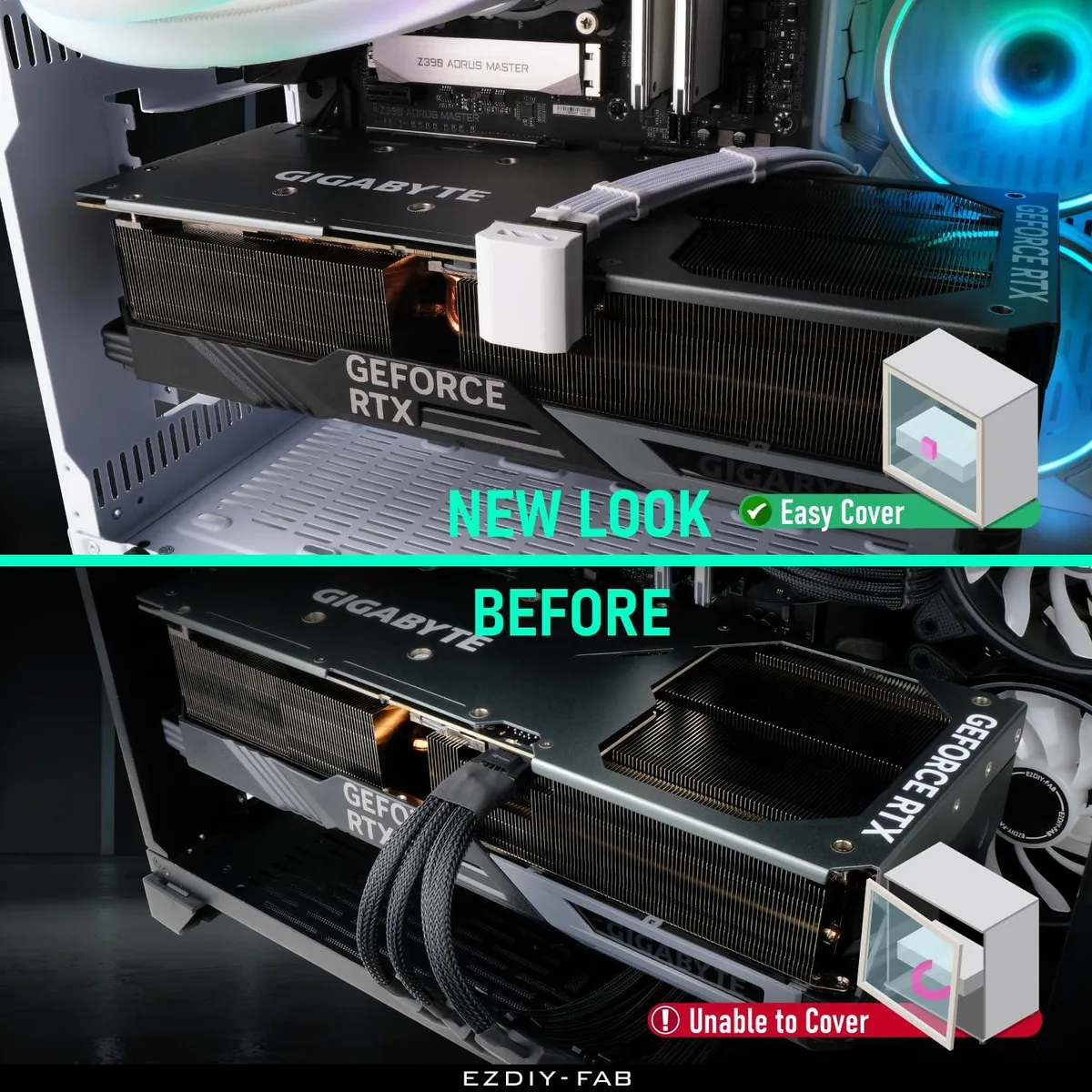

This white 12+4 pin adapter redirects the power connector by 180 degrees so the cable runs parallel to the graphics card. It suits builds where the side panel cannot close because the stock connector protrudes too far. The strengthened PCB design avoids wire bending and keeps every terminal in full contact. A 600W rating with an aluminium heatsink and ventilation holes maintains stable delivery under load.

Suits tight side-panel clearance.

Builders who measure at least 26 mm between the side plate and the graphics card can fit this adapter without modifying the case. It is not for systems that require a 90-degree exit angle or the alternative RVS connector orientation. The single 180-degree STD layout offers one fixed routing path, so users needing a different bend direction should choose another version.

180-degree STD connector direction decides fit

The adapter uses a 180-degree STD type connector, meaning the cable bends straight back toward the card rear. Compatibility depends on this direction matching the graphics card’s socket orientation. If the card needs the opposite RVS layout or a 90-degree bend, this part will not align correctly.

Highlights

  • Strengthened PCB avoids wire bending for full terminal contact
  • Fits cases with 26 mm clearance between side panel and graphics card
  • Alloy copper terminals deliver stable conductivity under high load
  • Aluminium heat sink with ventilation holes supports 600 W operation
  • 180-degree STD connector suits compact builds with limited space

Specifications

No published specifications for this item yet.

Questions about this item

How much power can the adapter handle continuously?

The adapter is rated for 600W output and uses an aluminium heat sink with ventilation holes to manage sustained loads.

Will the adapter run hot or noisy inside a closed case all day?

The strengthened PCB and alloy copper terminals are designed for stable high-current operation, while the integrated heat sink and vents dissipate heat without any fan noise.

What clearance do I need between the graphics card and the side panel to fit this 180° adapter?

You need at least 26 mm of space between the side plate and the graphics card for the 180-degree STD-type connector to seat properly.
