Blue cable with straight and right-angle SAS connectors, 1 metre long

Vszerda

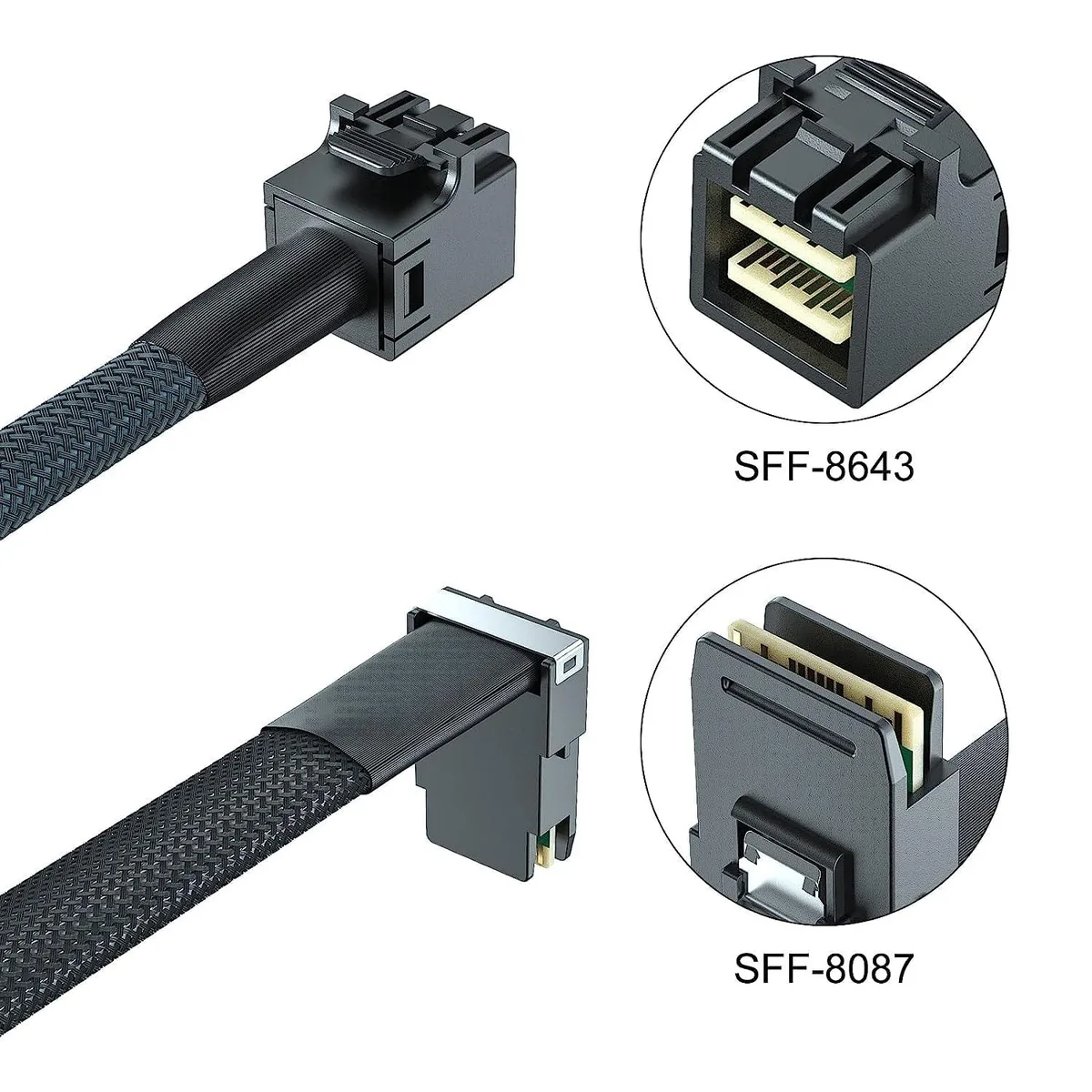

Vszerda 12G Mini SAS HD SFF-8643 to SFF-8087 Cable Straight to Right Angle 1m 36 Pin with Sideband 100 Ohm

SKU CH-8WR6-WSGRT

Connects 12 Gbps SAS controllers to SFF-8087 backplanes with a straight-to-right-angle 36-pin cable that includes sideband signals and 100 Ohm impedance

  • TypeSAS
  • Color1m
  • Length3.3
  • Connector Number36
  • Connector DetailSff-8643 to Sff-8087
  • Terminal GenderMale-to-Male
  • 12 Gbps throughput for fast storage arrays
  • 100 Ohm impedance meets SAS 2.1 and 3.0 specs
  • Straight-to-right-angle layout eases tight chassis routing
  • 36-pin SFF-8643 to SFF-8087 links mixed controller ports
  • 30 AWG twin-axial build keeps cable thin and low-skew

Internal SAS Cable for Server Storage

The Vszerda 12G Mini SAS HD cable connects SFF-8643 and SFF-8087 ports in servers, RAID controllers, PCIe cards and direct-attached storage arrays. It targets administrators building or servicing 12 Gbps SAS or SATA links inside dense chassis.

Straight-to-Right-Angle with Sideband

The right-angle SFF-8087 plug routes cleanly along backplanes or drive cages where a straight connector would foul adjacent cards. The 36-pin sideband channel carries SGPIO or I²C management signals, so enclosure LEDs and SES monitoring remain active without extra wiring.

30 AWG Twin-Axial Build at 100 Ohm

Twin-axial construction keeps the 1-metre run thin and low-skew for reliable 12 Gbps operation. Impedance is controlled to 100 Ohms and the assembly meets SAS 2.1 and 3.0 specs. Builders needing longer reaches or external bulkhead mounting must source a different length or connector style.

Highlights

  • 12 Gbps throughput for fast storage arrays
  • 100 Ohm impedance meets SAS 2.1 and 3.0 specs
  • Straight-to-right-angle layout eases tight chassis routing
  • 36-pin SFF-8643 to SFF-8087 links mixed controller ports
  • 30 AWG twin-axial build keeps cable thin and low-skew

Specifications

BrandH!Fiber.com
TypeSAS
Color1m
Length3.3
Connector Number36
Connector DetailSff-8643 to Sff-8087
Terminal GenderMale-to-Male
Speed12 gigabits_per_second
SpecificationsSAS

Questions about this item

Will the 30AWG twin-axial conductors need periodic replacement in a RAID array?

The cable is a passive 30AWG twin-axial assembly rated for 12 Gbps; it has no moving parts or wear items, so no scheduled replacement is required under normal server use.

What is the first signal-integrity limit reached on a 1-metre run at 12 Gbps?

The 100-ohm controlled-impedance design meets SAS 3.0 specifications, so the 1-metre length stays within the standard's insertion-loss and skew budgets for 12 Gbps operation.

Does the cable add measurable heat or power draw when running all day in a storage enclosure?

As a passive copper interconnect it draws no power and generates negligible heat; thermal load comes from the connected controllers and drives, not the cable itself.
