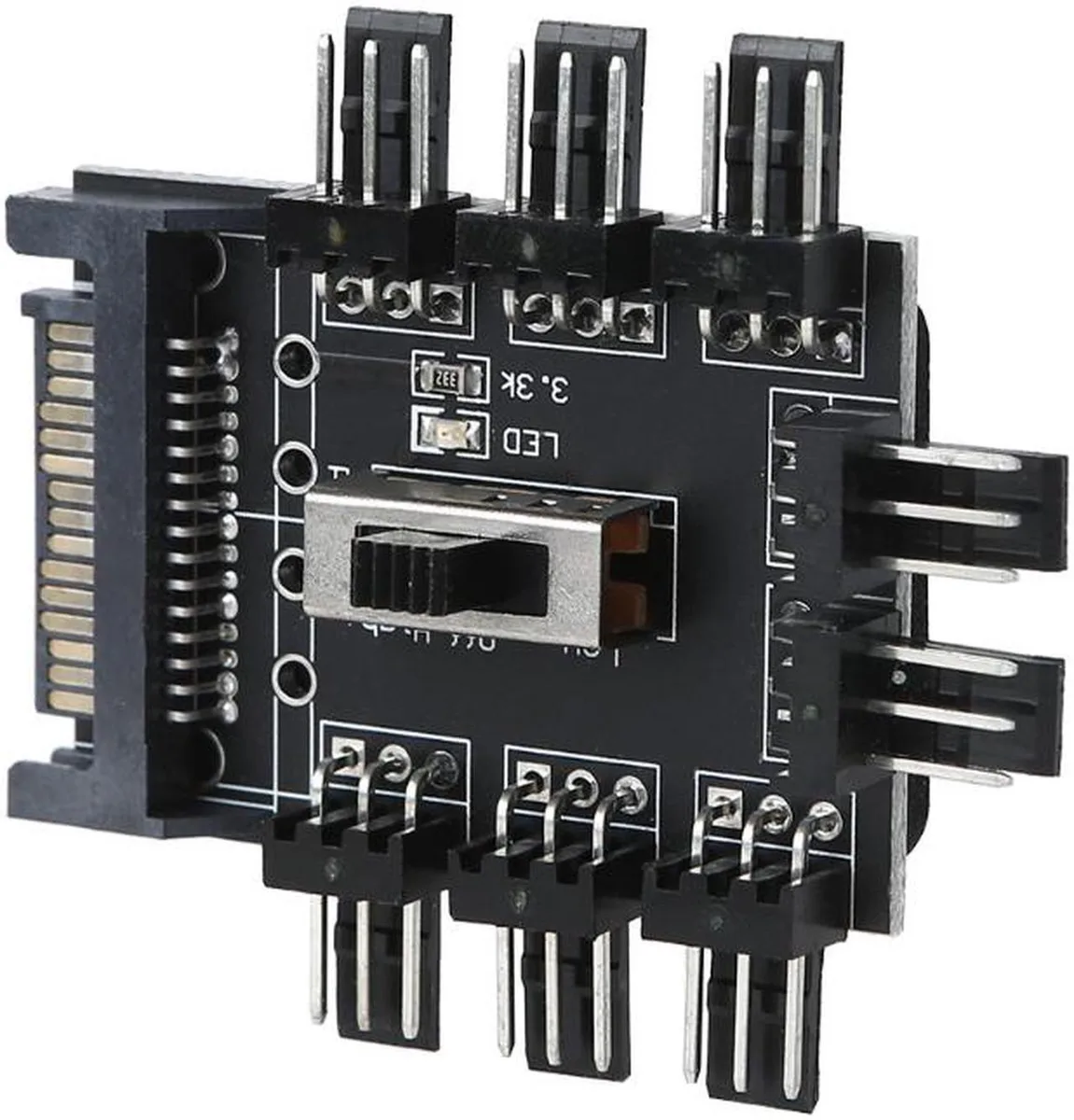

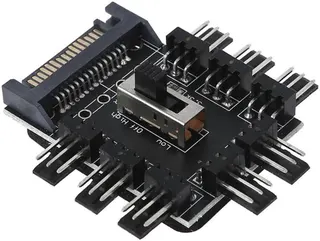

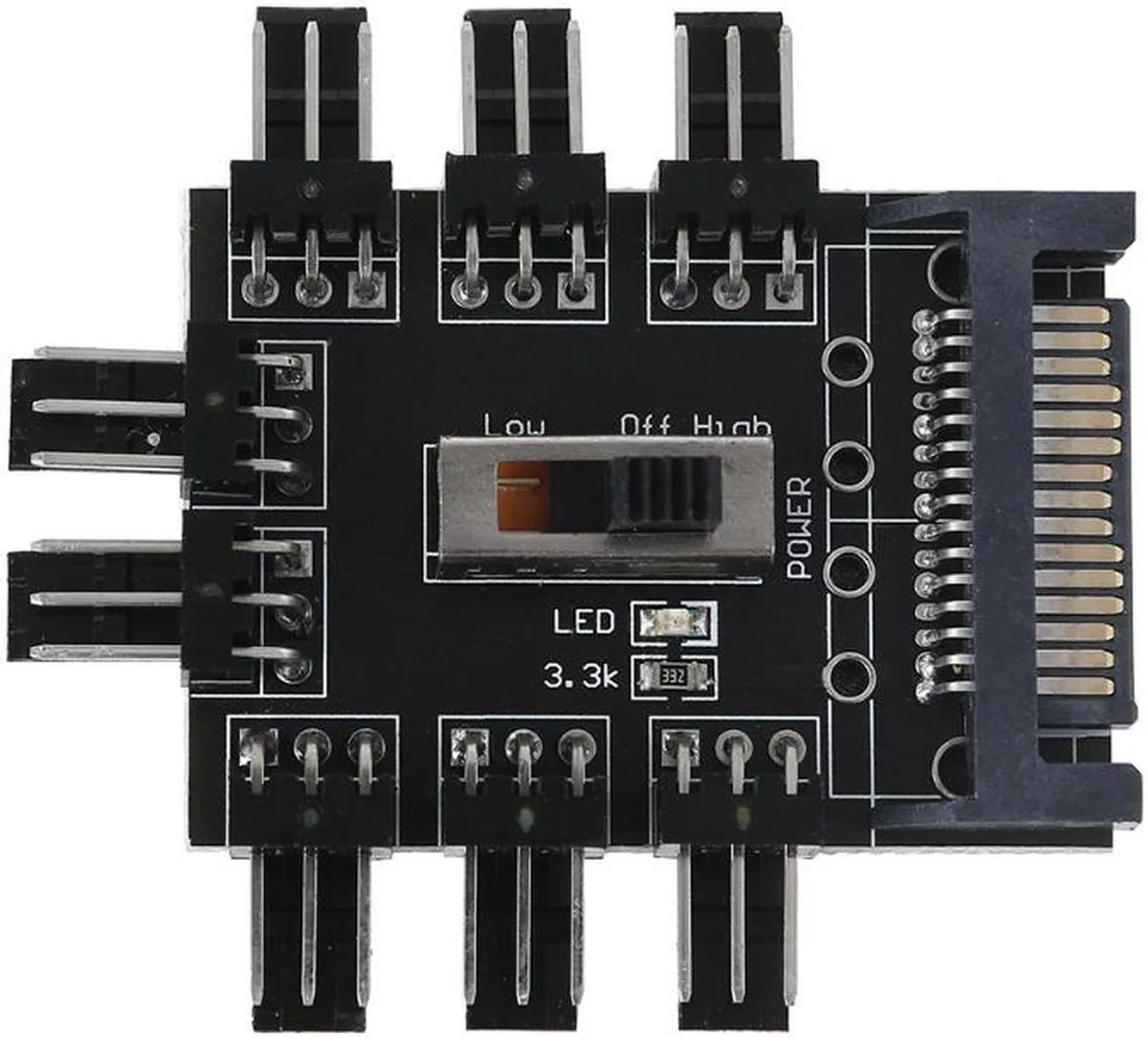

Black rectangular PCB hub measuring 53 by 48 millimetres with eight fan headers and a SATA power connector

Vszerda

Vszerda 1-to-8 SATA fan hub 53x48mm

SKU CH-XYXT-EM6DW

Expands one SATA power connector to eight 3-pin or 4-pin fans with manual 12 V, 7 V or off speed control and adhesive mounting

  • Expands one SATA header to eight fans
  • Manual three-level speed control: 12 V high, 7 V low, off
  • Powers all fans directly from a SATA 15-pin connector
  • Compact 53 × 48 mm board fits tight chassis spaces
  • Adhesive backing secures hub without screws or brackets

One SATA header into eight fan ports

The Vszerda hub converts a single 15-pin SATA power connector into eight 3-pin or 4-pin fan headers. A three-position switch selects 12 V high speed, 7 V low speed or off for all connected fans simultaneously. The 53 by 48 mm black PCB includes adhesive backing for chassis mounting.

Adhesive mount and manual speed control

Self-stick tape on the rear allows the hub to be fixed anywhere inside the case without screws. The physical switch provides direct control over every attached fan at once, removing the need for software profiles or motherboard headers. All power is drawn from the PSU through the SATA lead.

Eight 3-pin or 4-pin outputs from one SATA plug

Builders who need to run more fans than the motherboard headers allow can connect up to eight units through this single splitter. Systems that require per-fan PWM curves or individual speed monitoring cannot use this hub because it applies one voltage level to every port.

Highlights

  • Expands one SATA header to eight fans
  • Manual three-level speed control: 12 V high, 7 V low, off
  • Powers all fans directly from a SATA 15-pin connector
  • Compact 53 × 48 mm board fits tight chassis spaces
  • Adhesive backing secures hub without screws or brackets

Specifications

No published specifications for this item yet.

Questions about this item

Will the adhesive on the back of the 53x48mm hub need replacement if it loses grip over time?

The hub includes a self-stick backing for chassis mounting; if the adhesive fails, double-sided tape or a small screw can secure the plastic-and-metal board instead.

What limits how many of the eight 3-pin or 4-pin fans can run together from one SATA 15-pin connector?

The SATA 15-pin power cable from the PSU supplies all eight ports, so the PSU’s SATA rail current rating is the practical limit for simultaneous fan operation.

How much noise and heat does the hub itself add when all eight fans run at the 12 V high-speed setting all day?

The hub is a passive PCB with a three-position switch; it adds no active cooling or moving parts, so any noise and heat come only from the connected fans.
