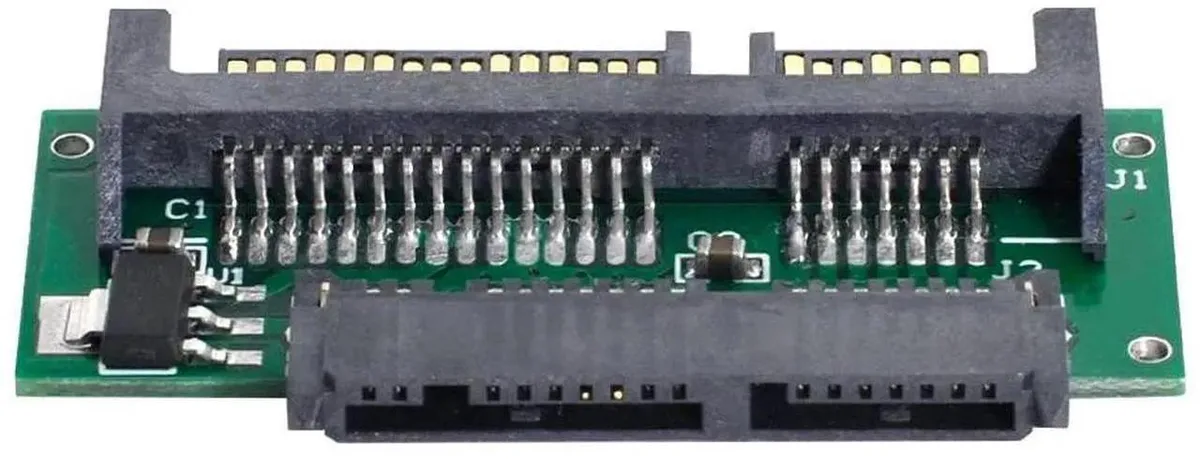

Small green PCB adapter board with Micro SATA female and SATA male connectors

Vszerda

Vszerda 1.8" Micro SATA to 2.5" SATA PCB Converter Adapter

SKU CH-SFTV-CGT8S

Connects a 1.8" Micro SATA SSD or HDD to a standard 2.5" SATA interface with an onboard voltage-adjustment chip

  • Connects 1.8" Micro SATA drives to 2.5" SATA slots
  • Built-in voltage-regulation chip protects the drive
  • Mini PCB fits inside a standard 2.5" drive bay
  • Supports Toshiba MK1216GSG MK1235GSL MK1629GSG models
  • Converts 16-pin Micro SATA to 22-pin SATA interface

Micro SATA to 2.5" SATA Adapter

This adapter converts a 1.8" Micro SATA drive to a standard 2.5" SATA interface. It suits anyone upgrading a laptop or embedded system that only accepts 2.5" drives. The board includes a voltage-adjustment chip for automatic level shifting. It fits entirely within a 2.5" drive bay once the smaller drive is attached.

Check your drive and bay before ordering

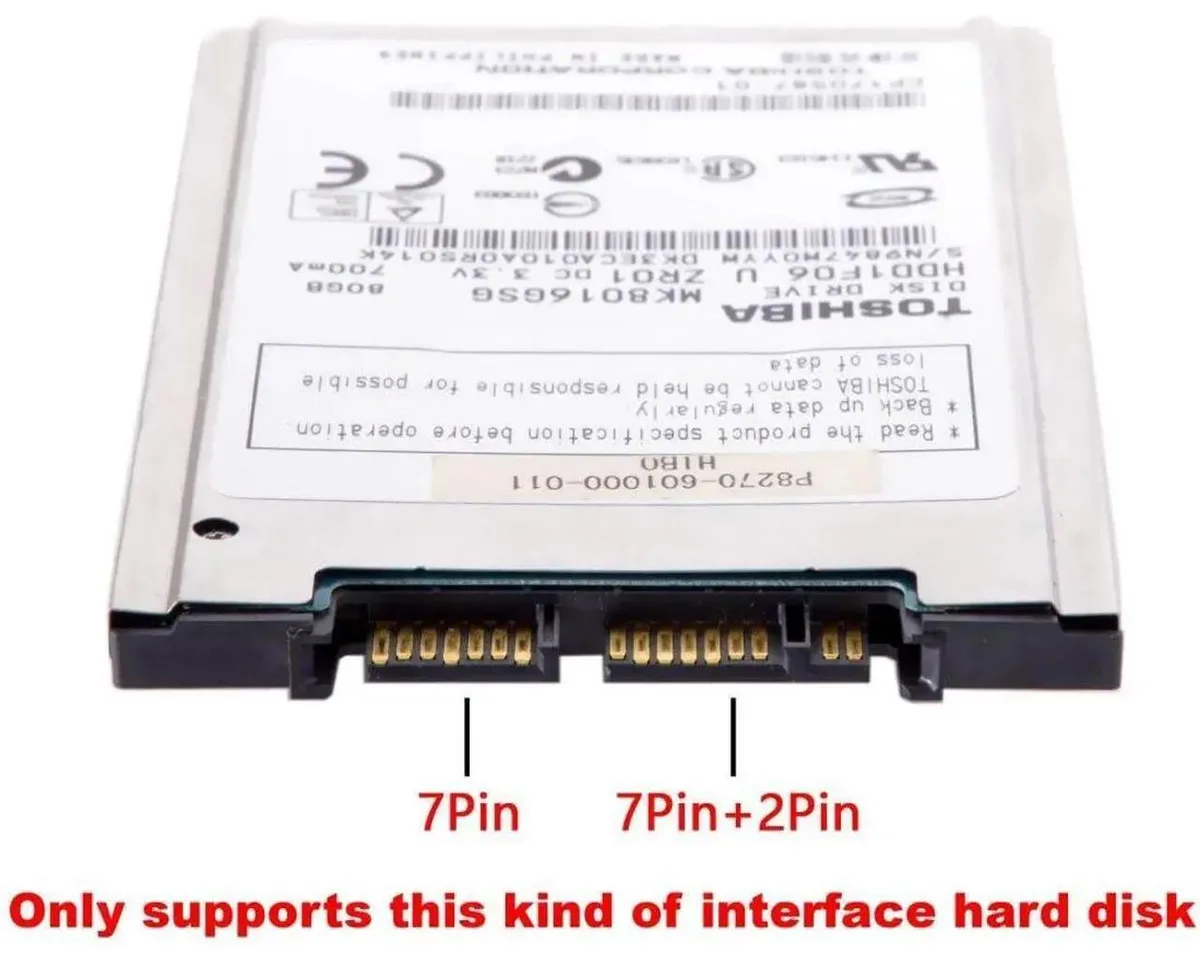

Confirm the source drive uses a Micro SATA 16-pin connector (7+9 or 7+7+2 female). The target system must provide a regular SATA 22-pin (7+15 male) connection for both data and power. Ensure the 2.5" bay has enough depth for the combined height of the adapter and the 1.8" drive. No extra cables or drivers are required.

Suits 1.8" drive upgrades in 2.5" bays

Ideal for users moving Toshiba MK1216GSG, MK1235GSL, MK1629GSG or any 1.8" Micro SATA SSD or HDD into a 2.5" SATA slot. Not for drives with standard SATA, mSATA, M.2 or ZIF connectors. Not for systems lacking a 2.5" SATA port or the physical space for the stacked assembly.

Highlights

  • Connects 1.8" Micro SATA drives to 2.5" SATA slots
  • Built-in voltage-regulation chip protects the drive
  • Mini PCB fits inside a standard 2.5" drive bay
  • Supports Toshiba MK1216GSG MK1235GSL MK1629GSG models
  • Converts 16-pin Micro SATA to 22-pin SATA interface

Specifications

No published specifications for this item yet.

Questions about this item

What is included with the Vszerda 1.8" Micro SATA adapter and do I need a separate SATA data cable?

The adapter board is the only item supplied. A standard SATA data cable must be purchased separately to connect the male 22-pin SATA end to your motherboard or controller.

Which 1.8" Micro SATA drives are confirmed compatible with this converter?

The board fits all 1.8" Micro SATA SSDs and HDDs, including Toshiba models MK1216GSG, MK1235GSL and MK1629GSG, converting their 16-pin interface to a 2.5" 22-pin SATA connection.

What does the on-board voltage-adjustment chip do once the adapter is installed in a laptop?

The integrated chip automatically regulates the voltage supplied to the 1.8" Micro SATA drive, allowing it to operate safely from a standard 2.5" SATA power rail without manual configuration.
