Small green circuit board with a 1.8 inch micro SATA female connector on one side, a 2.5 inch SATA male connector on the other

Vszerda

Vszerda 1.8" Micro SATA 16Pin to 2.5" SATA 22Pin Adapter with USB Power Cable

SKU CH-SQ41-G86Y8

Connects 1.8" Micro SATA SSDs to 2.5" SATA interfaces with built-in voltage adjustment and USB power cable

  • Connects 1.8" Micro SATA drives to 2.5" SATA bays
  • On-board voltage-adjustment chip protects the drive
  • Extra USB power cable supplies stable current
  • Compact PCB fits inside a standard 2.5" drive slot
  • Compatible with Toshiba MK1216GSG, MK1235GSL and MK1629GSG models

Micro SATA to SATA adapter for 1.8 inch drives

This adapter converts a 1.8 inch Micro SATA 16 pin device to a standard 2.5 inch SATA 22 pin interface. It includes a USB power cable and an onboard chip that automatically adjusts voltage. The compact PCB fits inside a 2.5 inch drive bay alongside the connected drive. It suits users upgrading legacy laptops or embedded systems with 1.8 inch SSDs or HDDs.

Interface limited to SATA speeds

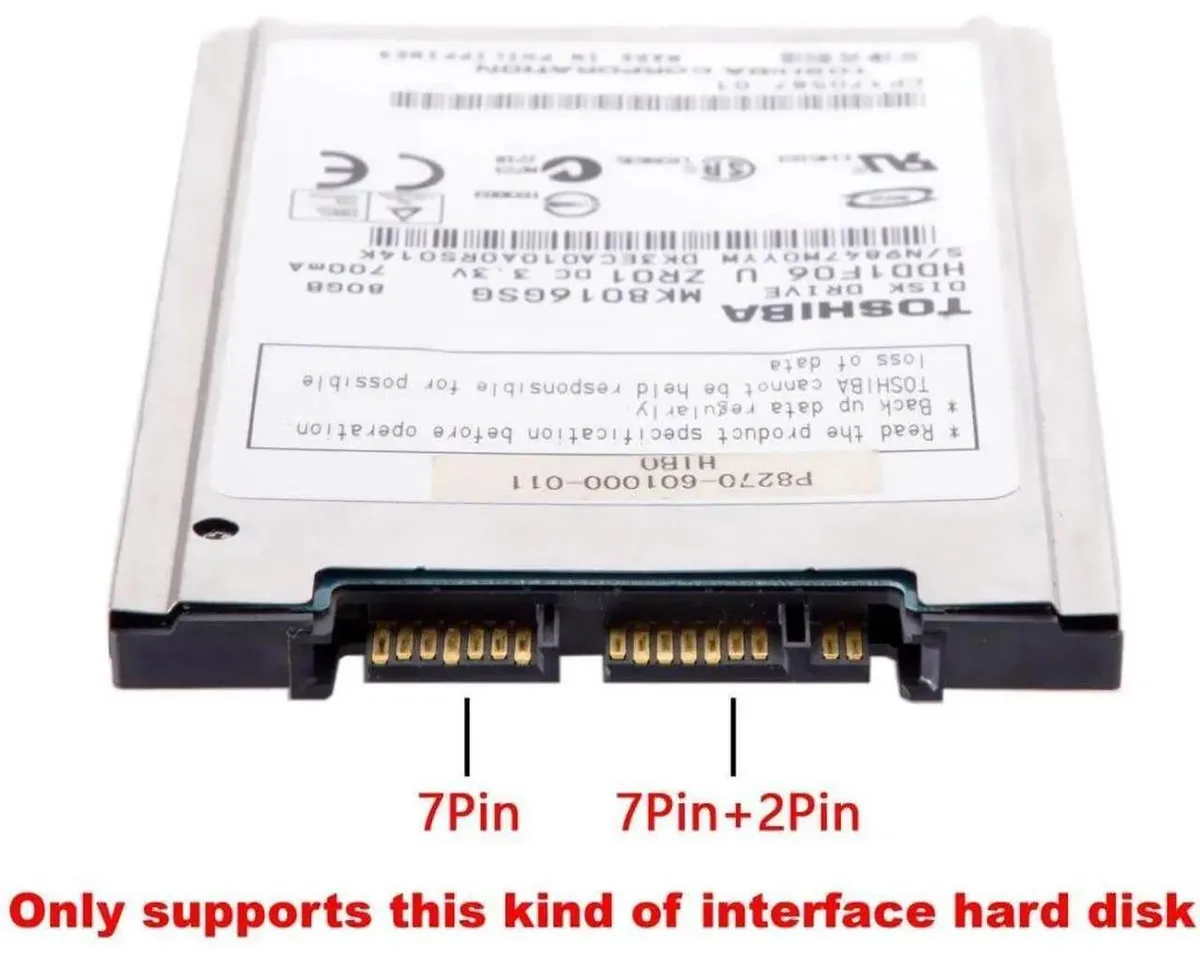

The adapter passes the native SATA signal without protocol conversion, so throughput matches the drive and host controller. It only accepts Micro SATA 16 pin connectors in the 7+9 or 7+7+2 female pinouts. Drives requiring 3.3 volt power rely on the USB cable because the 22 pin SATA connector supplies 5 and 12 volts only. The board does not support hot-plug detection beyond standard SATA behaviour.

Onboard voltage-regulation chip

A built-in chip automatically adjusts the voltage supplied to the 1.8 inch drive from the host SATA and USB power sources. This removes the need for a separate regulator or modified power cable. If your 1.8 inch drive operates at a non-standard voltage, verify compatibility before purchase. The chip is the only active component on the adapter.

Highlights

  • Connects 1.8" Micro SATA drives to 2.5" SATA bays
  • On-board voltage-adjustment chip protects the drive
  • Extra USB power cable supplies stable current
  • Compact PCB fits inside a standard 2.5" drive slot
  • Compatible with Toshiba MK1216GSG, MK1235GSL and MK1629GSG models

Specifications

No published specifications for this item yet.

Questions about this item

Which 1.8" drives does this Micro SATA 16Pin adapter support?

It fits all 1.8" Micro SATA SSDs or HDDs, including Toshiba MK1216GSG, MK1235GSL and MK1629GSG models.

How does the voltage-adjustment chip affect real-world use?

The onboard chip automatically adapts voltage so the 1.8" drive receives correct power through the 2.5" SATA 22Pin connector without extra configuration.

What does the USB power cable add to the SATA 22Pin connection?

It supplies supplementary power over USB, ensuring stable operation when the host SATA port cannot deliver enough current for the attached 1.8" drive.
